APLEX - Smart Industry Enabler

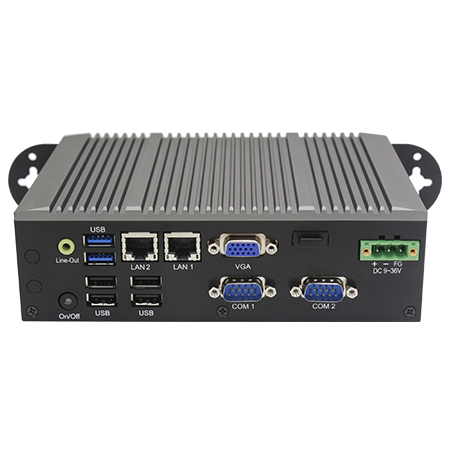

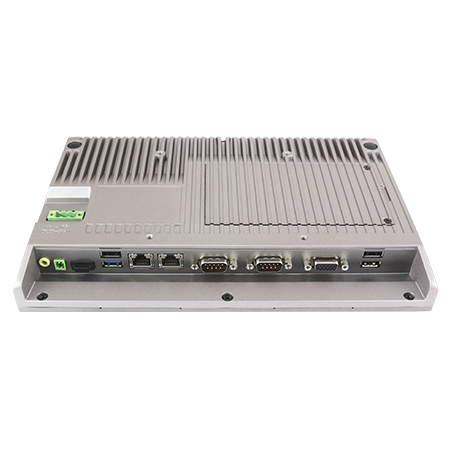

ACS-2170

Intel Baytrail N2930 Processors

Max:8.54W

SoC

Onboard 2GB DDR3 800MHz, (4GB Option)

1 x Line out phone jack

1 x VGA

2 x GbE LAN RJ-45 by Intel 82574L

3 pins terminal block connector,
1 x 2-pin connector for power on/off button

1 x RS-232 DB-9, COM2
1 x RS-232/422/485, COM1 (Default RS-232)

3 x USB 2.0 type A,
1 x USB 3.0 type A

1 x 2.5" SATA2

1 x mini PCIe slot full Size

DC 9~36V

Silver aluminum chassis

297 x 173 x 33.9

IP20

Wall mount, VESA 100x100, Din rail(option)

1.6 Kg

CE / FCC Class A

-20~60

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows Win Embedded 8.1 Industry Pro, Windows 7 Pro for Embedded, WES 7, WE8S

Fanless Box PC, Intel Celeron N2930 1.8G processor, 2GB DDR3L Memory, 16GB MLC SSD, mini PCIe slot(full size), 9~36V DC input with adaptor

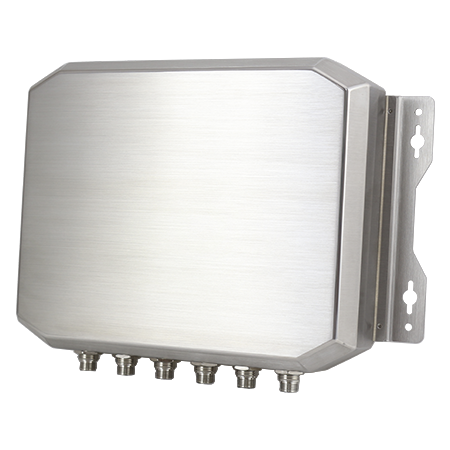

ACS-2702A

Intel Baytrail N2930 Processors
Intel Baytrail E3845 Processors

8.54W

SoC

Onboard 2GB DDR3L 1600MHz/4GB for option

1 x VGA (M12 connector)

1 x GbE LAN RJ-45(M12 connector)

1 x DC Power (M12 connector)

1 x RS-232, COM2(M12 connector)
1 x RS-232/422/485, COM1 (Default RS-232) (M12 connector)

2 x USB 2.0 (by 1 x M12 8pin connector)

1 x 2.5" SATA2 HDD

1 x Internal Mini-PCIe slot full size

DC 9~36V

Stainless Steel

250 x 200 x 58.6

IP67 Certified and IP69K Compliant

Wall Mount

CE / FCC Class A

-20~60

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows Win Embedded 8.1 Industry Pro, Windows 7 Pro for Embedded, WES 7, WE8S

IP67 waterproof Fanless Box PC, with Intel Celeron N2930 1.83GHz CPU, 4GB DDR3L RAM, 32G MLC SSD, 9~36V DC power input with adaptor, Stainless Steel Enclosure, WT1

ADP-1224A

21.5" TFT-LCD

Resistive Touch

Standard: 250
High Brightness: 1000

TBD

1 x Audio Line-in phone jack

1 x DP

1 x DVI-D

1 x HDMI

OSD on the front side default
OSD on the rear side (option)

1 x 3 pin terminal block , DC 9~36V
AC 100~240V (option)

1 x VGA

50,000

1000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB default
RS-232 option

Resistive Touch: 80%

Resistive Touch

DC 9~36V
AC 100~240V (option)

Black Steel Front Panel
Option Front Bezel : Stainless / Aluminum

557 x 362 x 65 mm

Front side IP65

Panel mount / VESA mount 100 x 100 / Rack Mount (Option)

8 kg

CE/FCC, Class A

0~50°C

10 to 95% @ 40°C, Non-condensing

-30~70 ̊C

ADP-1224A: 21.5” 1920 x 1080 industrial display, VGA, DVI-D, HDMI, DP input, 5 keys front OSD, DC 9~36V power input, no touch with protective glass, black steel enclosure

ADP-1224AT (option): 21.5” 1920 x 1080 industrial display, VGA, DVI-D, HDMI, DP input, 5keys front OSD, DC 9~36V power input, 5-wire resistive touch, black steel enclosure

AEx-915AP/H

15" TFT-LCD

Projected Capacitive Touch

Standard: 450
High Brightness: 1000

Intel 6th Gen. Core i3/i5 processor

AEx-915AP: 21W

SoC

1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8pin for 2 x USB 2.0 with Metal Waterproof CAP

1 x 2.5” HDD or SSD space
1 x mSATA space

1 x Mini-PCIe (full size)

Standard: 70,000
High Brightness: 50,000

800:1

15" TFT-LCD

Standard: 450
High Brightness: 1000

Standard: 16.2M
High Brightness: 262K

1024 x 768

160 / 150

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

399 x 324 x 70

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

9.6

CE / FCC Class A
ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

* AEX-915APH:
15" XGA HB1000nits IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SO-DIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

* AEX-915AP:
15" XGA IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SODIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-815P/H

15" TFT-LCD

Projected Capacitive Touch

Standard: 450
High Brightness: 1000

Intel Celeron N2930 Processors (2M Cache,1.83GHz)

AEx-815P: 19W

SoC

Onboard 4GB/8GB DDR3L 1333MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x 2.5" SATA HDD or SSD space
1 x mSATA space
1 x Internal SD Card

1 x Mini-PCIe (full size)

Standard: 70,000
High Brightness: 50,000

800:1

15" TFT-LCD

Standard: 450
High Brightness: 1000

Standard: 16.2M
High Brightness: 262K

1024 x 768

Standard: 160 / 150
High Brightness: 160 / 140

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

399 x 324 x 70

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

9.8

0~50°C / -20~60°C(option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

*AEX-815PH:
15" XGA HB1000nits IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB SATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable,1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

* AEX-815P:
15" XGA IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-115P/H

15" TFT-LCD

Projected Capacitive Touch

Standard: 450
High Brightness: 1000

AEx-115P: 17W

1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x M12 12-pin for VGA with waterproof cover and chain

Standard: 70,000
High Brightness: 50,000

800:1

15" TFT-LCD

Standard: 450
High Brightness: 1000

Standard: 16.7M / 262K
High Brightness 16.2M / 262k

1024 x 768

160 / 150

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

399 x 324 x 70

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

8.5

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

* AEX-115PH:
15" XGA HB1000nits, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60

Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

* AEX-115P:
15" XGA IP66, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60

Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-916AP

15.6" TFT-LCD

Projected Capacitive Touch

400

Intel 6th Gen. Core i3/i5 processor

AEx-916AP: 27W

SoC

1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8pin for 2 x USB 2.0 with Metal Waterproof CAP

1 x 2.5” HDD or SSD space
1 x mSATA space

1 x Mini-PCIe (full size)

50,000

700:1

15.6" TFT-LCD

400

16.2M

1920 x 1080

160 / 140

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

440 x 290 x 75

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

10 Kg

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

15.6" FHD IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SODIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-816P

15.6" TFT-LCD

Projected Capacitive Touch

400

Intel Celeron N2930 Processor (2M Cache,1.83GHz)

AEx-816P: 23W

SoC

Onboard 4GB/8GB DDR3L 1333MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x 2.5” HDD or SSD space
1 x mSATA space
1 x Internal SD Card

1 x Mini-PCIe (full size)

50,000

700:1

15.6" TFT-LCD

400

16.2M

1920 x 1080

160 / 140

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

440 x 290 x 75

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

0~50°C / -20~60°C(option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

15.6" FHD IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA GMLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-116P

15.6" TFT-LCD

Projected Capacitive Touch

400

AEx-116P: 17W

1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain

1 x M12 12-pin for VGA with waterproof cover and chain

50,000

700:1

15.6" TFT-LCD

400

16.7M

1920 x 1080

160 / 140

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

440 x 290 x 75

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

9.6

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

15.6" FHD IP66, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60

Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-919AP/H

19" TFT-LCD

Projected Capacitive Touch

Standard: 350
High Brightness: 1000

Intel 6th Gen. Core i3/i5 processor

AEx-919AP: 24W

SoC

1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8pin for 2 x USB 2.0 with Metal Waterproof CAP

1 x 2.5” HDD or SSD space
1 x mSATA space
1 x Internal SD Card

1 x Mini-PCIe (full size)

70,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

470 x 388.6 x 75

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

13.2 / 13.4 kg

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

* AEX-919APH:
19" SXGA HB1000nits IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SO-DIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

* AEX-919AP:
19" SXGA IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SODIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-819P/H

19" TFT-LCD

Projected Capacitive Touch

Standard: 350
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)

AEx-819P: 24W

SoC

Onboard 4GB/8GB DDR3L 1333MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x 2.5” HDD or SSD space
1 x mSATA space
1 x Internal SD Card

1 x Mini-PCIe (full size)

70,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

470 x 388.6 x 75

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

12.3

0~50°C / -20~60°C(option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

* AEX-819PH:
19" SXGA HB1000nits IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATAGMLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

* AEX-819P:
19" SXGA IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-119P/H

19" TFT-LCD

Projected Capacitive Touch

Standard: 350
High Brightness: 1000

AEx-119P: 21W

1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x M12 12-pin for VGA with waterproof cover and chain

Standard: 70,000
High Brightness: 50,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

470 x 388.6 x 75

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

11.5

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

* AEX-119PH:
19" SXGA HB1000nits IP66, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60

Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

* AEX-119P:
19" SXGA IP66, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60

Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-921AP

21.5" TFT-LCD

Projected Capacitive Touch

300

Intel 6th Gen. Core i3/i5 processor

AEx-921AP: 37W

SoC

1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8pin for 2 x USB 2.0 with Metal Waterproof CAP

1 x 2.5” HDD or SSD space
1 x mSATA space
1 x Internal SD Card

1 x Mini-PCIe (full size)

50,000

3000:1

21.5" TFT-LCD

300

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

571 x 362 x 75.1

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

12.6 Kg

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

21.5" FHD IP66 Intel Core I5-6300U 2.4GHz, fan less panel PC, 1 x SODIMM(260pins), Up to 16G DDR4 2133MHz, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-821P

21.5" TFT-LCD

Projected Capacitive Touch

300

Intel Celeron N2930 Processor (2M Cache,1.83GHz)

AEx-821P: 35W

SoC

Onboard 4GB/8GB DDR3L 1333MHz

1 x M12 8-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x 2.5” HDD or SSD space
1 x mSATA space
1 x Internal SD Card

1 x Mini-PCIe (full size)

50,000

3000:1

21.5" TFT-LCD

300

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

571 x 362 x 75.1

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

12.6

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows embedded 7
Windows embedded 8.1
Windows 10 IoT ENT LTSB

21.5" FHD IP66 Intel Celeron N2930 1.8G CPU fan less panel PC, 4GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-121P

21.5" TFT-LCD

Projected Capacitive Touch

300

AEx-121P: 24W

1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain

1 x M12 3-pin for DC power connector with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain

1 x M12 12-pin for VGA with waterproof cover and chain

50,000

5000:1

21.5" TFT-LCD

300

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%

Projected Capacitive Touch

DC 9~36V

316 Stainless Steel Chassis

571 x 362 x 75.1 mm

Total IP66 6 sides

VESA mount 100 x 100, Panel mount (option)

12.3 Kg

-20~60°C

10 to 95% @ 40°C, non- condensing

-30~70°C

21.5" FHD IP66, 316 Stainless display, VGA input, external OSD box, Projected capacitive touch, 9~36V DC Power input, VESA Mount, WT-20~60

Accessary : 1 x M12 for USB touch cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

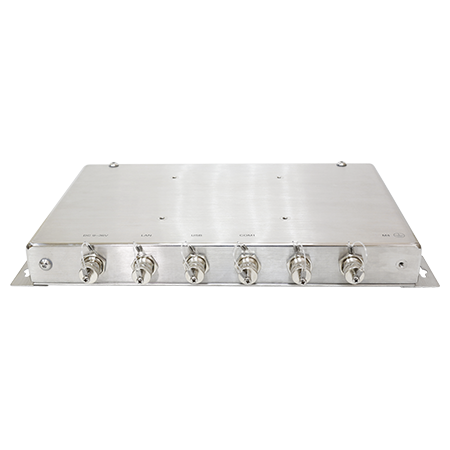

AEx-2410

Intel Celeron N2930 Processors

MAX: 15.9W

SoC

Onboard 4GB DDR3L SDRAM
Onboard 8GB DDR3L SDRAM (optional)

1 x M12 12-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x 2.5” HDD or SSD space

1 x Mini-PCIe slot (full size) for option WLAN/BT module

DC 9~36V

316 Stainless Steel Chassis

334 x 195 x 38.5

Total IP66 6 sides

VESA 100 x100 / Wall Mount

4 Kg

CE / FCC Class A
ATEx / IECEx Zone2 Ex ec IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987

-20~60°C

10 to 95% @ 40°C, non-condensing

-30~70°C

Windows 7 Pro for Embedded
Windows Embedded Standard 7
Windows Embedded 8.1 Industry Pro
Windows Embedded 8 Standard
Windows 10 IoT ENT LTSB

Fanless Box PC module, Intel Celeron N2930 1.8G CPU fan less panel PC, 8GB DDR3L memory on board, 1 x 128GB 2.5" MLC SSD, 1 x 64GB mSATA GMLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

AEx-2411

Intel 6th Gen. Core i3/ i5/ i7 Processors

MAX: 45.7W

SoC

1 x 260-pin SO-DIMM up to 16GB DDR4 2133MHz

1 x M12 12-pin for VGA with waterproof cover and chain

2 x M12 8-pin for LAN with waterproof cover and chain

1 x M12 3-pin for DC power with waterproof cover and chain

1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

1 x 2.5” HDD or SSD space

1 x Mini-PCIe slot (full size) for option WLAN/BT module

DC 9~36V

316 Stainless Steel Chassis

334 x 195 x 38.5

Total IP66 6 sides

VESA 100 x100 / Wall Mount

4 Kg

-20~60°C

10 to 95% @ 40°C, non-condensing

-30~70°C

Windows 7 Pro for Embedded
Windows Embedded Standard 7
Windows Embedded 8.1 Industry Pro
Windows Embedded 8 Standard
Windows 10 IoT ENT LTSB

Fanless Box PC module, Intel Core™I5-6300U, 16GB DDR4 memory on board, 1 x 256GB 2.5" MLC SSD, 1 x 64GB mSATA MLC SSD, Projected capacitive touch, DC9~36V power input with power adapter, 316 stainless steel enclosure, support VESA Mount, WT-20~60

Accessary : 1 x M12 for 2 x USB2.0 Cable, 2 x M12 LAN cable, 1 x M12 COM Cable, 1 x VGA Cable, 1 x 3pin power input cable (w/o Adapter)

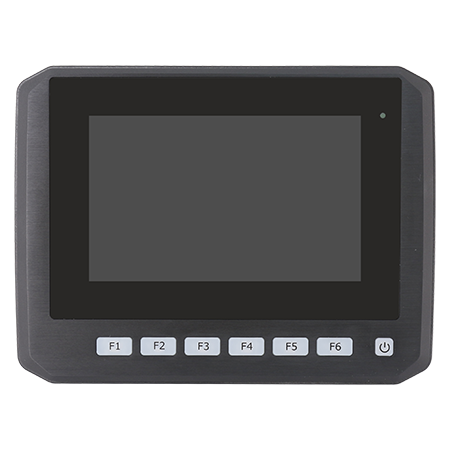

APC-3072

7" TFT-LCD

Resistive Touch Window

600 (default), 1000 (optional)

Intel Atom Processor E3845

MAX: 15W

SoC

Onboard 4GB DDR3L Memory

1 x 2W IP65 Speaker

1 x M12 for LAN

Function Keypad: 7 keys (F1~F6 with Power Button)
Default General Keyboard F1~F6 key, Programmable other define

1 x DC power input (6~36V) by M12 connector

1 x M12 for RS-232/422/485, default RS-232

1 x M12 for 2 x USB 2.0

1 x Micro SD on board
1 x mSATA MO-300 slot

1 x Mini-PCIe full size for option 3G/LTE/GPS
1 x Mini-PCIe half size slot for option WIFI/BT
1 x SIM slot on board

50,000

400:1

7" TFT-LCD

600 (default), 1000 (optional)

262K

800 x 480

140 / 130

USB

Resistive Touch: 80%

Resistive Touch Window

Default: 6~36V DC
Option: 6~36V DC + Ignition / VCC Power

Aluminum Front Bezel and Plastic Back Cover with Aluminum Heatsink

240 x 180 x 59 mm

Total IP66

VESA 75 x 75 / VESA 100 x 100
Adjustable Stand (option)

2.1 Kg

CE/FCC Class A/ MIL810F/ IEC60068-2-27 for vibration/ Shock

0~50°C, WT1: -20°C~60°C for option

10 to 90% @ 40°C, non- condensing

-30~80°C

Windows 7 Professional for Embedded Systems, Windows 7 Ultimate for Embedded Systems, Windows Embedded 8.1 Pro, Windows Embedded 8.1 Industry Pro, Windows 10 IOT 2016

7" WVGA total IP66 design aluminum panel PC, Intel Atom Processor E3845, DDR3L 4G on board, 8G SLC mSATA, with resistive touch window, 6~36V DC power input with adapter

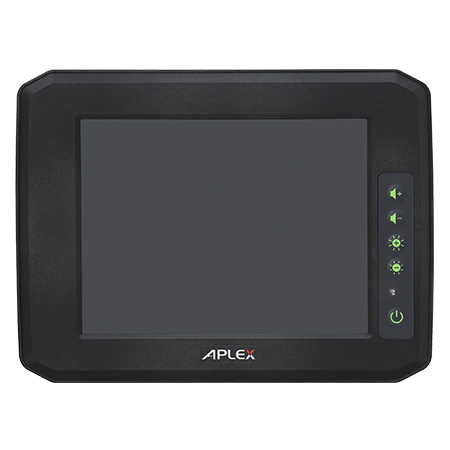

APC-3082

8" TFT-LCD

Resistive Touch Window

600 (default), 1000 (optional)

Intel Atom Processor E3845

MAX: 19.8W

SoC

Onboard 4GB DDR3L Memory

1 x 2W IP65 Speaker

1 x M12 for LAN

5 keys: Brightness up/Brightness down Control 0~100%
Volume up/Volume down via Audio, Power on/off
LED Indicator: Power on/off

1 x DC power input (6~36V) by M12 connector

1 x M12 for RS-232/422/485, Default RS-232

1 x M12 for 2 x USB 2 .0

1 x Micro SD on board
1 x mSATA MO-300 slot

1 x Mini-PCIe full size for option 3G/LTE/GPS
1 x Mini-PCIe half size slot for option WIFI/BT
1 x SIM slot on board

50,000

500:1

8" TFT-LCD

600 (default), 1000 (optional)

16.2M

800 x 600

140 / 125

USB

Resistive Touch: 80%

Resistive Touch Window

Default: 6~36V DC
Option: 6~36V DC + Ignition / VCC Power

Engineer Plastic Front Bezel and Rear Cover; Aluminum Heatsink

240 x 180 x 59 mm

Total IP66

VESA Mount 75 x 75/ 100 x 100
Adjustable Stand (option)

2 kg

CE/FCC Class A/ MIL810F/ IEC60068-2-27 for vibration/ Shock

0~50°C, WT1: -20°C~60°C for option

10 to 90% @ 40°C, non-condensing

-30~80°C

Windows 7 Professional for Embedded Systems, Windows 7 Ultimate for Embedded Systems, Windows Embedded 8.1 Pro, Windows Embedded 8.1 Industry Pro, Windows 10 IoT 2016

8” SVGA total IP66 design plastic panel PC, Intel Atom Processor E3845, DDR3L 4G on board, 8G SLC mSATA, with resistive touch screen, 6~36V DC power input with adapter

ARCDIS-107APRG/H

7" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

ARCDIS-107AP: 4W( MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD at rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

30,000

1000:1

7" TFT-LCD

Standard: 350
High Brightness: 1000

262K

800 x 480

160 / 160

107AP(H): USB default
107AR(H): USB default (RS-232 option)
107AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

202 x 149 x 40

IP66 compliant front panel

Panel mount, VESA mount 75 x 75

1.06 Kg

CE/FCC, Class A

0~50°C / -20~60°C option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-107AP: 7" FPD Industrial display, Projected Capacitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-107AR: 7" FPD Industrial display, Resistive touch window, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Diecasting Chassis

ARCDIS-108APRG/H

8" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 450
High Brightness: 1000

ARCDIS-108AP: 6W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD at rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

Standard: 40,000
High Brightness: 20,000

500:1

8" TFT-LCD

Standard: 450
High Brightness: 1000

16.2M

800 x 600

140 / 120

108AP(H): USB default
108AR(H): USB default (RS-232 option)
108AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

231.1 x 176.1 x 50

IP66 compliant front panel

Panel mount, VESA mount 75 x 75

1.8 Kg

CE/FCC, Class A

0~50°C / -20~60°C option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-108AR: 8" FPD Industrial display, Resistive touch window, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Diecasting Chassis

ARCDIS-108AP: 8" FPD Industrial display, Projected Capcitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-110APRG/H

10.1" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

ARCDIS-110AP: 5.1W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD at rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

Standard: 30,000
High Brightness: 50,000

Standard: 800:1
High Brightness: 1300:1

10.1" TFT-LCD

Standard: 350
High Brightness: 1000

Standard: 16.7M
High Brightness: 16.2M

1280 x 800

170 / 170

110AP(H): USB default
110AR(H): USB default (RS-232 option)
110AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

285 x 189 x 48.9

IP66 compliant front panel

Panel mount / VESA mount 100 x 100

1.9 Kg

CE/FCC, Class A

0~50 °C / -20~60 °C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-110AR: 10.1" FPD Industrial display, Resistive touch window, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Diecasting Chassis

ARCDIS-110AP: 10.1" FPD Industrial display, Projected Capacitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-112APRG/H

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 450 (default), 500 (optional)
High Brightness: 1000

ARCDIS-112AP: 9W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)

1000:1

12.1" TFT-LCD

Standard: 450 (default), 500 (optional)
High Brightness: 1000

16.7M (default), 16.2M (optional)

800 x 600 (default)
1024 x 768 (optional)

176 / 176 (default), 178 / 178 (optional)

112AP(H): USB default
112AR(H): USB default (RS-232 option)
112AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

319 x 245 x 51.68

IP66 compliant front panel

Panel Mount, VESA 100 x 100

2.6 Kg

CE/FCC, Class A

0~50 °C / -20~60 °C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-112AR: 12.1” SVGA FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-112AP: 12.1” SVGA FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-115APRG/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 300
High Brightness: 1000

ARCDIS-115AP: 9W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

70,000

Standard: 2000:1
High Brightness: 1000:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1024 x 768

176 / 176

115AP(H): USB default
115AR(H): USB default (RS-232 option)
115AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

410 x 310 x 54.67

IP66 compliant front panel

Panel Mount, VESA 100 x 100

4.3 Kg

CE/FCC, Class A

0~50 °C / -20~60 °C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-115AR: 15" XGA FPD Industrial display, Resistive touch window, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Diecasting Chassis

ARCDIS-115AP: 15" XGA FPD Industrial display, Projected Capcitive touch screen, VGA, DVI, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-116APRG/H

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 400 (default), 500 (optional)
High Brightness: 1000

ARCDIS-116AP: 13W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

50,000

500:1 (default), 1000:1 (optional)

15.6" TFT-LCD

Standard: 400 (default), 500 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

Standard: 170 / 160 (default), 178 / 178 (optional)
High Brightness: 160 / 160 (default), 170 / 170 (optional)

116AP(H): USB default
116AR(H): USB default (RS-232 option)
116AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

412 x 277.5 x 58.9

IP66 compliant front panel

Panel Mount, VESA 100 x 100

4.4 Kg

CE/FCC, Class A

0~50°C / -20~60°C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-116AR: 15.6” WXGA FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-116AP: 15.6” WXGA FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-117APRG/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

ARCDIS-117AP: 11W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

Standard: 30,000
High Brightness: 50,000

Standard: 1000:1
High Brightness: 800:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

Standard: 170 / 160
High Brightness: 160 / 140

117AP(H): USB default
117AR(H): USB default (RS-232 option)
117AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum front bezel / Aluminum die-casting for back cover

439 x 348 x 64.8 mm

IP66 compliant front panel

Panel Mount, VESA mount 100 x 100

6 Kg

CE/FCC, Class A

0~50°C / -20~60°C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-117AR: 17” SXGA FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-117AP: 17” SXGA FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-118APRG/H

18.5" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 300 (default), 350 (optional)
High Brightness: 1000

ARCDIS-118AP: 19W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

50,000

1000:1

18.5" TFT-LCD

Standard: 300 (default), 350 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

170 / 160 (default), 178 / 178 (optional)

118AP(H): USB default
118AR(H): USB default (RS-232 option)
118AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum front bezel/ Aluminum die-casting for back cover

499.6 x 314.6 x 65.4 mm

IP66 compliant front panel

Panel Mount, VESA mount 100 x 100

6.4 Kg

CE/FCC, Class A

0~50°C / -20~60°C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-118AR: 18.5” WXGA FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-118AP: 18.5” WXGA FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-119APRG/H

19" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

ARCDIS-119AP: 17W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

50,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

119AP(H): USB default
119AR(H): USB default (RS-232 option)
119AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum front bezel/ Aluminum die-casting for back cover

468 x 380 x 64.8 mm

IP66 compliant front panel

Panel Mount, VESA mount 100 x 100

7.2 Kg

CE/FCC, Class A

0~50°C / -20~60°C for option

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-119AR: 19” SXGA FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-119AP: 19” SXGA FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-121APRG/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 250
High Brightness: 1000

ARCDIS-121AP: 18W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

50,000

1000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

121AP(H): USB default
121AR(H): USB default (RS-232 option)
121AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

Aluminum Die-casting chassis

557.3 x 362.3 x 64.8 mm

IP66 compliant front panel

Panel Mount, VESA Mount 100 x 100

7.5 Kg

CE/FCC, Class A

0~50°C

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-121AR: 21.5” FHD FPD Industrial display, Resistive touch window, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-121AP: 21.5” FHD FPD Industrial display, Projected Capacitive touch screen, VGA, DVI-D, HDMI, and DP input, 5 keys Rear OSD, DC 9~36V power input with adapter, Aluminum Die-casting Chassis

ARCDIS-124APG/H

23.8" TFT-LCD

P: Projected Capacitive/ G: Glass

Standard: 250
High Brightness: 1000

ARCDIS-124AP : 21W (MAX)

1 x Audio line-in phone jack
Optional I/O: 1 x Speaker

1 x DP

1 x DVI-D (share with HDMI)

1 x HDMI (share with DVI-D)

OSD on rear side

1 x 3-pin terminal block for DC 9~36V power input

1 x USB type B for touch control

1 x VGA

30,000

3000:1

23.8" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

124AP(H): USB default
124AG(H): N/A

Projected Capacitive Touch/ Glass: Over 90%

P: Projected Capacitive/ G: Glass

DC 9~36V

Aluminum chassis front bezel / steel back cover

640 x 395 x 44

IP66 compliant front panel

Panel mount, VESA 200 x 100

9.5 Kg

CE/FCC, Class A

0~50 °C

10 to 95% @ 40°C, non- condensing

-30~70°C

ARCDIS-124AP: 24" FHD FPD Industrial display,Projected Capacitive touch screen,VGA,DVI,HDMI,and DP input,5 keys Rear OSD,DC 9~36V power input with adapter,Aluminum Die-casting Chassis

ARCHMI-807RP/H

7" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-807P: 28W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x MO-297 SSD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

40,000

1000:1

7" TFT-LCD

Standard: 350
High Brightness: 1000

262K

800 x 480

160 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

202 x 149 x 40 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 75 x 75

1.2 Kg

CE/FCC Class A/CB/UL

0~50˚C / -20~60˚C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-807R/P:
7" WVGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-807R/P(H):
7" WVGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

● VESA Stand
● 4G LTE / Wi-Fi / BT

ARCHMI-808RP/H

8" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 450
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-808P: 26W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x MO-297 SSD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 40,000
High Brightness: 20,000

500:1

8" TFT-LCD

Standard: 450
High Brightness: 1000

16.2M

800 x 600

140 / 130

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

231.1 x 176.1 x 50 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 75 x 75

1.9 kg

CE/FCC Class A/CB/UL

0~50˚C / -20~60˚C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-808R/P:
8" SVGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-808R/P(H):
8" SVGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

● VESA Stand
● 4G LTE / Wi-Fi / BT

ARCHMI-810RP/H

10.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-810P: 28W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 30,000
High Brightness: 50,000

Standard: 800:1
High Brightness: 1300:1

10.1" TFT-LCD

Standard: 350
High Brightness 1000

Standard: 16.7M
High Brightness: 16.2M

1280 x 800

170 / 170

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

285 x 189 x 48.9 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

1.7 kg

CE/FCC Class A/CB/UL

0~50˚C / -20~60˚C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-810R/P:
10.1" WXGA fanless HMI barebone with Celeron N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-810R/P(H):
10.1" WXGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

●VESA Stand ●4G LTE/WiFi/ BT ●4 x USB 2.0 type A (TB-528U4) ●4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) ●2 x COM (RS-232) (TB-528C2) ●1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) ●1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) ●2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) ●2 x COM (RS-422/485, isolated) (TB-528C2I) ●2 x CAN (TB-528CAN2) ●1 x LAN + 2 x USB 2.0 type A (TB-528E1U2) ●1 x LAN(25W non-isolated PoE PD) + 2 x USB 2.0 type A (TB

ARCHMI-812RP/H

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 450 (default), 500 (optional)
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-812P: 32W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)

1000:1

12.1" TFT-LCD

Standard: 450 (default), 500 (optional)
High Brightness: 1000

16.7M (default), 16.2M (optional)

800 x 600 (default)
1024 x 768 (optional)

176 / 176 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

319 x 245 x 51.7 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

3.1 kg

CE/FCC Class A/CB/UL

0~50˚C / -20~60˚C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-812R/P:
12.1" SVGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-812R/P(H):
12.1" SVGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-815RP/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 300
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-815P: 30W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

70,000

Standard: 1000:1
High Brightness: 800:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1024 x 768

176 / 176

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

410 x 310 x 54.67 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

3.1 kg

CE/FCC Class A/CB/UL

0~50˚C / -20~60˚C (option)

10 to 90%@ 40 ̊C, non-condensin

-30~70˚C

Windows 10 IoT

ARCHMI-815R/P:
15" XGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-815R/P(H):
15" XGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-816RP/H

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 400 (default), 500 (optional)
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-816P: 35W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

50,000

500:1 / 1000:1

15.6" TFT-LCD

Standard: 400 (default), 500 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

Standard: 170 / 160 (default), 178 / 178 (optional)
High Brightness: 160 / 160 (default), 170 / 170 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

412 x 277.5 x 58.9 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

4.9 kg

CE/FCC Class A/CB/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-816R/P:
15.6" WXGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-816R/P(H):
15.6" WXGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-817RP/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-817P: 38W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 30,000
High Brightness: 50,000

Standard: 1000:1
High Brightness: 800:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1280 x 1024

Standard: 170 / 160
High Brightness: 140 / 140

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Chassis

439 x 348 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6.02 Kg

CE/FCC Class A/CB/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-817R/P:
17" SXGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-817R/P(H):
17" SXGA fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-818R/P

18.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

300 (default), 350 (optional)

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-818P: 45W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

50,000

1000:1

18.5" TFT-LCD

300 (default), 350 (optional)

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

170 / 160 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Chassis

499.6 x 314.6 x 59.9 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6 Kg

CE/FCC Class A/CB/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-818R:
18.5" WXGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen, DC 9~36V input with adapter, Aluminum chassis

ARCHMI-818P:
18.5" WXGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Projected Capacitive touch screen, DC 9~36V input with adapter, Aluminum chassis

ARCHMI-818RH/PH

18.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-818P: 45W

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

50,000 (default), 40,000 (optional)

1000:1

18.5" TFT-LCD

1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

170 / 160 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Chassis

499.6 x 314.6 x 72 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6 kg

CE/FCC Class A/CB/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-818RH:
18.5" WXGA fanless HMI barebone with Intel Celeron N2930 (1.83.GHz) CPU, 4GB DDR3L RAM, Resistive touch screen, DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-818PH:
18.5" WXGA fanless HMI barebone with Intel Celeron N2930 (1.83.GHz ) CPU, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-819RP/H

19" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-819P: 42W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

50,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Chassis

468 x 380 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6 kg

CE/FCC Class A/CB/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-819R/P:
19" SXGA Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-819R/P(H):
19" SXGA fanless HMI barebone with Intel Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

●VESA Stand ●4G LTE/WiFi/ BT ●4 x USB 2.0 type A (TB-528U4) ●4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) ●2 x COM (RS-232) (TB-528C2) ●1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) ●1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) ●2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
●2 x COM (RS-422/485, isolated) (TB-528C2I) ●2 x CAN (TB-528CAN2) ●1 x LAN + 2 x USB 2.0 type A (TB-528E1U2) ●1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528

ARCHMI-821RP/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 250
High Brightness: 1000

Intel Celeron N2930 Processor (2M Cache,1.83GHz)
Atom E3845 Processor (2M Cache,1.91GHz)

ARCHMI-821P: 42W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal
1 x 2-pin connector for power on/off button

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
1 x Micro SD card slot, up to 32GB

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 50,000
High Brightness: 30,000

1000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Chassis

557.3 x 362.3 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

7.5 Kg

CE/FCC Class A/CB/UL

0~50 ̊C

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-821R/P:
21.5" FHD Fanless HMI barebone with Intel N2930 1.83G CPU, 2GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis

ARCHMI-821R/P(H):
21.5" FHD fanless HMI barebone with Celeron N2930(1.83.GHz ) CPU, 4GB DDR3L RAM, Resistive touch screen (Projected Capacitive touch), DC 9~36V input with adapter, Aluminum chassis, 1,000 nits LCD

ARCHMI-807APR/H

7" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-807AP: 28W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x DB-9 RS-232/422/485, COM1 (Default RS-232)
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A

1 x MO-297 SSD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

40,000

1000:1

7" TFT-LCD

Standard: 350
High Brightness: 1000

262K

800 x 480

160 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

202 x 149 x 40 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 75 x 75

2.8 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40˚C, non-condensing

-30~70˚C

Windows 10 IoT

●VESA Stand
●4G LTE/Wi-Fi/BT

ARCHMI-808APR/H

8" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 450
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-808AP:28W

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x MO-297 SSD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 40,000
High Brightness: 20,000

500:1

8" TFT-LCD

Standard: 450
High Brightness: 1000

16.2M

800 x 600

140 / 130

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

231.1 x 176.1 x 50 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 75 x 75

1.9 Kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

● VESA Stand
● 4G LTE/Wi-Fi/BT

ARCHMI-810APR/H

10.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-810AP: 27W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 30,000
High Brightness: 50,000

Standard: 800:1
High Brightness: 1300:1

10.1" TFT-LCD

Standard: 350
High Brightness: 1000

Standard: 16.7M
High Brightness: 16.2M

1280 x 800

170 / 170

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

285 x 189 x 48.9 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

2 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-812APR/H

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 450 (default), 500 (optional)
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-812AR: 29W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)

1000:1

12.1" TFT-LCD

Standard: 450 (default), 500 (optional)
High Brightness: 1000

16.7M (default), 16.2M (optional)

800 x 600 (default)
1024 x 768 (optional)

176 / 176 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

319 x 245 x 51.7 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

2.8 Kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-815APR/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 300
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-815AR: 32W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

70,000

Standard: 800:1
High Brightness: 1000:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1024 x 768

176 / 176

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

410 x 310 x 54.67 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

4.6 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-816APR/H

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 400 (default), 450 (optional)
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-816AP: 30W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

50,000

500:1 (default), 1000:1 (optional)

15.6" TFT-LCD

Standard: 400 (default), 450 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

Standard: 170 / 160 (default), 178 / 178 (optional)
High Brightness: 160 / 160 (default), 170 / 170 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

412 x 277.5 x 58.9 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

4.8 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-817APR/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-817AR: 41W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 30,000
High Brightness: 50,000

Standard: 1000:1
High Brightness: 800:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1280 x 1024

Standard: 170 / 160
High Brightness: 140 / 140

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

439 x 348 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

5.1 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-818APR/H

18.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 300 (default), 350 (optional)
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-818AP: 34W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 50,000
High Brightness: 50,000 (default), 40,000 (optional)

1000:1

18.5" TFT-LCD

Standard: 300 (default), 350 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

170 / 160 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

499.6 x 314.6 x 65.4 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-819APR/H

19" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-819AR: 42W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

50,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

468 x 380 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

7.3 kg

CE/FCC Class A/UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-821APR/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 250
High Brightness: 1000

Intel Pentium N4200 Processor (2M Cache,1.1GHz)
Intel Celeron N3350 Processor (2M Cache,1.1GHz)

ARCHMI-821AP: 44W (MAX)

SoC

Onboard 4GB DDR3L SDRAM, up to 8GB (option)

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space
Movable Device: 1 x Micro SD card slot

1 x Mini-PCIe slot (full size)
1 x Micro SIM slot

Standard: 50,000
High Brightness: 30,000

1000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

557.3 x 362.3 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

7.5 Kg

CE/FCC Class A/UL

0~50 ̊C

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-912APR/H

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 450 (default), 500 (optional)
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-912AR: 47W (MAX)

SoC

1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)

1000:1

12.1" TFT-LCD

Standard: 450 (default), 500 (optional)
High Brightness: 1000

16.7M (default), 16.2M (optional)

800 x 600 (default)
1024 x 768 (optional)

176 / 176 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

319 x 245 x 51.7 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

2.8 kg

CE / FCC, Class A / UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-912AR(P):
12.1" SVGA fanless HMI barebone with Intel 6th Gen. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch screen), 9~36VDC input with adapter, Aluminum chassis

ARCHMI-915APR/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 300
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-915AR: 41W (MAX)

SoC

1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

70,000

Standard: 1000:1
High Brightness: 800:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1024 x 768

176 / 176

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

410 x 310 x 54.67 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

4.4 kg

CE / FCC, Class A / UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-915AR(P):
15" XGA fanless HMI barebone with Intel 6th Gen. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch screen), 9~36VDC input with adapter, Aluminum chassis.

ARCHMI-916APR/H

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 400 (default), 500 (optional)
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-916AP: 46W (MAX)

SoC

1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

50,000

500:1 (default), 1000:1 (optional)

15.6" TFT-LCD

Standard: 400 (default), 500 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

Standard: 170 / 160 (default), 178 / 178 (optional)
High Brightness: 160 / 160 (default), 170 / 170 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum die-casting chassis

412 x 277.5 x 58.9 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

4.5 Kg

CE / FCC, Class A / UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-916AR(P):
15.6" WXGA fanless HMI barebone with Intel 6th Gen.. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch scree), 9~36VDC input with adapter, Aluminum chassis

ARCHMI-917APR/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-917AR: 54W (MAX)

SoC

1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

Standard: 30,000
High Brightness: 50,000

Standard: 1000:1
High Brightness: 800:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1280 x 1024

Standard: 170 / 160
High Brightness: 140 / 140

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

439 x 348 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6.25 kg

CE / FCC, Class A / UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-917AR(P):
17" SXGA fanless HMI barebone with Intel 6th Gen. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch screen), 9~36VDC input with adapter, Aluminum chassis.

ARCHMI-918APR/H

18.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 300 (default), 350 (optional)
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-918AR: 55W (MAX)

SoC

1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

Standard: 50,000
High Brightness: 50,000 (default), 40,000 (optional)

1000:1

18.5" TFT-LCD

Standard: 300 (default), 350 (optional)
High Brightness: 1000

16.7M

1366 x 768 (default)
1920 x 1080 (optional)

170 / 160 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

499.6 x 314.6 x 65.4 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

6 kg

CE / FCC, Class A / UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-918AR(P):
18.5" WXGA fanless HMI barebone with Intel 6th Gen. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch), 9~36VDC input with adapter, Aluminum chassis.

ARCHMI-919APR/H

19" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-919AR: 54W (MAX)

SoC

1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

50,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

468 x 380 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

7.3kg

CE / FCC, Class A / UL

0~50 ̊C / -20~60 ̊C (option)

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-919AR(P):
19" SXGA fanless HMI barebone with Intel 6th Gen. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch), 9~36VDC input with adapter, Aluminum chassis.

ARCHMI-921APR/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 250
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache,2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache,2.30 GHz)

ARCHMI-921AP: 54W (MAX)

SoC

1 x 260-pin SO-DIMM DDR4 up to 16GB 2133MHz

TPM 2.0

1 x Audio Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB9 (COM1), default RS-232
1 x RS-232 DB9 (COM2)

2 x USB 3.0 type A

1 x 2.5" SATA3 HDD space

1 x Mini-PCIe slot (full size)

50,000

1000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum chassis

557.3 x 362.3 x 64.8 mm

IP66 Compliant Front Bezel

Panel Mount, VESA 100 x 100

7.5 kg

CE / FCC, Class A / UL

0~50°C

10 to 90%@ 40 ̊C, non-condensing

-30~70˚C

Windows 10 IoT

ARCHMI-921AR(P):
21.5" FHD fanless HMI barebone with Intel 6th Gen. Core i3-6100 CPU, 1 x SO-DIMM(260pins), Up to 16GB DDR4 2133MHz, Resistive touch screen (Projected Capacitive touch), 9~36VDC input with adapter, Aluminum chassis.

ARMPAC-607P/R

7" TFT-LCD

P: Projected Capacitive/ R: Resistive

350

NXP CPU Freescale i.MX6 Dual Lite
ARM Cortex A9(2x Cores,1.0GHz)

MAX: 5.3W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

40,000

400:1

7" TFT-LCD

350

262K

800 x 480

140 / 120

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and Chassis

204 x 150 x 42.5 mm

IP65 compliant front bezel

Panel Mount , VESA mount 75x75

0.9 Kg

CE/FCC Class A / UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-607R(P):
7" WVGA fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch (Projected capacitive touch), 9~36VDC input with adapter, plastic chassis.

● TB-508CAN1 ●TB-508C1

ARMPAC-608P/R

8" TFT-LCD

P: Projected Capacitive/ R: Resistive

350

NXP Freescale i.MX6 Dual Lite
ARM Cortex A9(2x Cores,1.0GHz)

MAX: 7W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

40,000

500:1

8" TFT-LCD

350

16.2M

800 x 600

140 / 120

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and Chassis

231 x 176 x 45 mm

IP65 compliant front bezel

Panel Mount , VESA mount 75x75

0.9 Kg

CE/FCC Class A / UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-608R(P):
8" SVGA fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch (Projected capacitive touch), 9~36VDC input with adapter, plastic chassis.

● TB-508CAN1 ●TB-508C1

ARMPAC-610P/R

10.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

250

NXP Freescale i.MX6 Dual Lite
ARM Cortex A9(2x Cores,1.0GHz)

MAX: 7W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

25,000

500:1

10.1" TFT-LCD

250

16.7M

1024 x 600

140 / 120

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and Chassis

285 x 189 x 49.6 mm

IP65 compliant front bezel

Panel Mount , VESA mount 100x100

1.3 Kg

CE/FCC Class A / UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-610R(P):
10.1" WSVGA fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch (Projected capacitive touch), 9~36VDC input with adapter, plastic chassis.

● TB-508CAN1 ●TB-508C1

ARMPAC-612P/R

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

450 / 500

NXP Freescale i.MX6 Dual Lite,
ARM Cortex A9(2x Cores,1.0GHz)

MAX: 10.9W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

50,000 / 30,000

1500:1 / 1000:1

12.1" TFT-LCD

450 / 500

262K / 16.2M

800 x 600 / 1024 x 768

178 / 178, 178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and Chassis

319 x 245 x 51 mm

IP65 compliant front bezel

Panel Mount , VESA mount 100x100

2.8 kg

CE/FCC Class A / UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-612R(P):
12.1" SVGA fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch (Projected capacitive touch), 9~36VDC input with adapter, plastic chassis.

● TB-508CAN1 ●TB-508C1

ARMPAC-615P/R

15" TFT-LCD

P: Projected Capacitive/ R: Resistive

300

NXP Freescale i.MX6 Dual Lite
ARM Cortex A9(2x Cores,1.0GHz)

MAX: 11.1W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

70,000

2000:1

15" TFT-LCD

300

16.2M

1024 x 768

176 / 176

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

410 x 310 x 54.67 mm

IP66 compliant front bezel

Panel Mount , VESA mount 100x100

4.5 Kg

CE/FCC Class A / UL

0~50°C / -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-615R(P):
15" fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch (Projected capacitive touch), 9~36VDC input with adapter, Aluminum chassis.

● TB-508CAN1 ●TB-508C1

ARMPAC-616P/R

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive

300

NXP Freescale i.MX6 Dual Lite
ARM Cortex A9(2x Cores,1.0GHz)

MAX:15.8W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

50,000

500:1

15.6" TFT-LCD

300

16.7M

1366 x 768

160 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Aluminum Die-casting Chassis

412 x 277.5 x 58.9 mm

IP66 compliant front bezel

Panel Mount , VESA mount 100x100

4.3 Kg

CE/FCC Class A / UL

0~50°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-616R(P):
15.6" fanless HMI barebone with Freescale i.MX6 DualLite ARM Cortex A9,1GB DDR3 RAM,4GB eMMC, Resistive touch (Projected capacitive touch), 9~36VDC input with adapter, Aluminum chassis

● TB-508CAN1 ●TB-508C1

ARMPAC-621P/R

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

250

NXP Freescale i.MX6 Dual Lite
ARM Cortex A9(2x Cores,1.0GHz)

MAX: 20.6W

Onboard 1GB DDR3 DRAM

1 x Speaker-out (Optional)

1 x GbE LAN RJ-45

1 x 3-pin terminal block connector

1 x RS-232/422/485 DB9, default RS-232

2 x USB 2.0 type A, 1 x USB 2.0 (Micro B Type)

Onboard 4GB eMMC NAND Flash

1 x mini-PCIe slot (full size), 1 x Sim Card slot

30,000

3000:1

21.5" TFT-LCD

250

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 12~36 V

Aluminum Die-casting Chassis

557 x 362 x 64.8 mm

IP66 compliant front bezel

Panel Mount , VESA mount 100x100

7.5 Kg

CE/FCC Class A / UL

0~50°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux 4.9.88 + Chromium Browser V67

ARMPAC-621R(P):
21.5" FHD Fanless HMI barebone with Intel D2550 1.86G CPU,4GB DDR3 RAM, Resistive touch (Projected Capacitive touch), 9~36VDC input with adapter, Aluminum chassis

● TB-508CAN1 ●TB-508C1

ARMPAC-505R

5.6" TFT-LCD

Resistive Touch

350

Ti-AM3354, ARM Cortex A8(1x Core,1.0GHz)

MAX 9W

Onboard 512MB DDR3 SDRAM

1 x Line out

1 x 10/100MB LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector
1 x 2-pin power switch connector

1 x RS-232/422/485 DB9
default RS-232

2 x USB 2.0 type A

Onboard 512MB NAND Flash (1GB for option)

1 x mini-PCIe slot (full size)

20,000

500:1

5.6" TFT-LCD

350

262K

640 x 480

140 / 120

ADC (Analog-to-Digital Converter)

Resistive Touch: 80%

Resistive Touch

DC 9~36V

Plastic front bezel and chassis

204 x 150 x 42.5 mm

IP65 compliant front bezel

Panel Mount , VESA mount 75x75

0.8 Kg

CE/FCC Class A/UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Linux 4.4.12 / WEC 7

● TB-508CAN1 (Linux only) ●TB-508C1

ARMPAC-507P/R

7" TFT-LCD

P: Projected Capacitive/ R: Resistive

350

Ti-AM3354, ARM Cortex A8(1x Core,1.0GHz)

7.5W

Onboard 512MB DDR3 SDRAM

1 x Line out

1 x 10/100MB LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector
1 x 2-pin power switch connector

1 x RS-232/422/485 DB9
default RS-232

2 x USB 2.0 type A

Onboard 512MB NAND Flash (1GB for option)

1 x mini-PCIe slot (full size)

40,000

400:1

7" TFT-LCD

350

262K

800 x 480

140 / 120

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and chassis

204 x 150 x 42.5 mm

IP65 compliant front bezel

Panel Mount , VESA mount 75x75

0.9 Kg

CE/FCC Class A/UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Linux 4.4.12 / WEC 7

● TB-508CAN1 (Linux only) ●TB-508C1

ARMPAC-508P/R

8" TFT-LCD

P: Projected Capacitive/ R: Resistive

350

Ti-AM3354, ARM Cortex A8(1x Core,1.0GHz)

7.7W

Onboard 512MB DDR3 SDRAM

1 x Line out

1 x 10/100MB LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector
1 x 2-pin power switch connector

1 x RS-232/422/485 DB9
default RS-232

2 x USB 2.0 type A

Onboard 512MB NAND Flash (1GB for option)

1 x mini-PCIe slot (full size)

40,000

500:1

8" TFT-LCD

350

16.2M

800 x 600

140 / 120

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and chassis

231.1 x 176.1 x 45 mm

IP65 compliant front bezel

Panel Mount , VESA mount 100x100

0.9 Kg

CE/FCC Class A/UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Linux 4.4.12 / WEC 7

● TB-508CAN1 (Linux only) ●TB-508C1

ARMPAC-510P/R

10.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

250

Ti-AM3354, ARM Cortex A8(1x Core,1.0GHz)

MAX 7.8W

Onboard 512MB DDR3 SDRAM

1 x Line out

1 x 10/100MB LAN RJ-45 (POE for option

1 x 3-pin terminal block connector
1 x 2-pin power switch connector

1 x RS-232/422/485 DB9
default RS-232

2 x USB 2.0 type A

Onboard 512MB NAND Flash (1GB for option)

1 x mini-PCIe slot (full size)

15,000

500:1

10.1" TFT-LCD

250

262K / 16.7M

1024 x 600

140 / 120

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and chassis

285 x 189 x 49.6 mm

IP65 compliant front bezel

Panel Mount , VESA mount 100x100

1.3 Kg

CE/FCC Class A/UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Linux 4.4.12 / WEC 7

● TB-508CAN1 (Linux only) ●TB-508C1

ARMPAC-512P/R

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

450 / 500

Ti-AM3354, ARM Cortex A8(1x Core,1.0GHz)

9.2W

Onboard 512MB DDR3 SDRAM

1 x Line out

1 x 10/100MB LAN RJ-45 (POE for option)

1 x 3-pin terminal block connector
1 x 2-pin Power switch connector

1 x RS-232/422/485 DB9
default RS-232

2 x USB 2.0 type A

Onboard 512MB NAND Flash (1GB for option)

1 x mini-PCIe slot (full size)

50,000 / 30,000

1500:1 / 1000:1

12.1" TFT-LCD

450 / 500

16.2M / 262K (SVGA)

800 x 600 / 1024 x 768

178 / 178 , 178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Plastic front bezel and Chassis

319 x 245 x 51 mm

IP66 compliant front bezel

Panel Mount , VESA mount 100x100

2.0 Kg

CE/FCC Class A/UL

0~50°C/ -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Linux 4.4.12 / WEC 7

● TB-508CAN1 (Linux only) ●TB-508C1

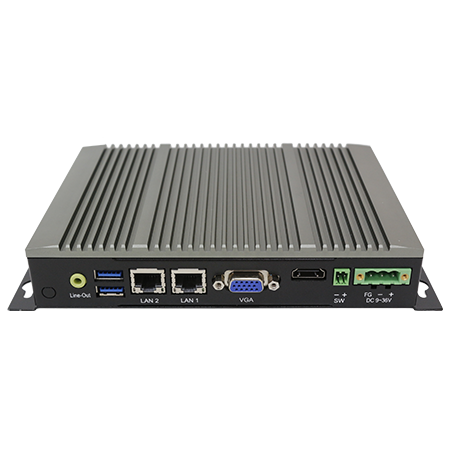

AVS-300

Intel Celeron J1900 Pocessor

SoC

1 x 204-pin SO-DIMM DDR3L 1333MHz, up to 8GB

1 x Line out

Integrated Intel HD Graphics 688/854 MHz(J1900)
1 x VGA up to 1920 x 1200
1 x HDMI up to 1920 x 1200

2x GbE LAN RJ-45 by intel i210AT(i211AT) controller

1 x 3Pin Power input Connector
1 x 2Pin Power Switch

1 x RS232/422/485, DB9 (COM1)
1 x RS232, DB9 (COM2)
1 x RS485, DB9 (COM3/4)

2 x USB 3.0 (type A)
2 x USB 2.0 (type A)

1 x 2.5" SATA2 HDD/SSD bay
1 x mSATA

1 x mini PCIe slot

9~36V DC

207 x 130 x 35.5

1.05 Kg

CE / FCC Class A

-20˚C~70˚C

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows 7 32/64 bit , Windows 10

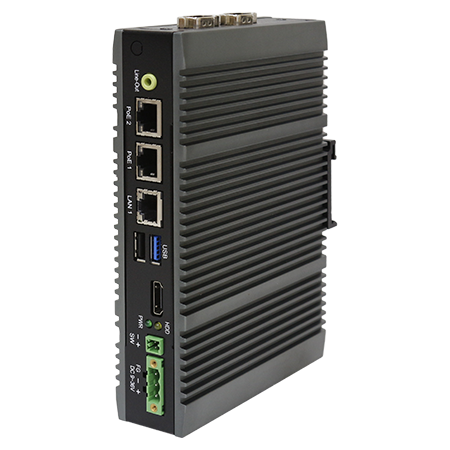

AVS-310

Onboard Intel Celeron J1900 Pocessor

SoC

1 x 204-pin SO-DIMM DDR3L 1333MHz, up to 8GB

1 x Line out

1 x 8-bit GPIO (4 x DI, 4 x DO)

Integrated Intel HD Graphics 688/854 MHz(J1900)
1 x VGA up to 1920 x 1200
1 x HDMI up to 1920 x 1200

1x GbE LAN RJ-45 by intel i210AT(i211AT) controller

2 x Gigabit IEEE 802.3af/at (15.4W/25W) PoE port by RJ-45 with intel i210AT controller

1 x RS485/RS232/RS422, DB9 (COM1)
1 x RS232, DB9 (COM2)

1 x USB 3.0 (type A) / 1 x USB 2.0 (type A, Internal)
1 x USB 2.0 (type A)

1 x 2.5" SATA2 HDD/SSD bay
1 x mSATA

1 x mini PCIe slot

DC 24V

180 x 130 x 39.5 mm

1.85 Kg

Meet CE/FCC Class A

-20˚C~70˚C

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows 7 32/64 bit , Windows 10

AVS-313

Intel Celeron J1900 Pocessor

SoC

1 x 204-pin SO-DIMM DDR3L 1333MHz, up to 8GB

1 x Line out

8 x DI, 8 x DO, 2 x 10 Pin Phoenix Connector, isolation (GPIO1, via TB-579IL)
8 x DI, 8 x DO, 2 x 10 Pin Phoenix Connector, isolation (GPIO2, via TB-579IL)

Integrated Intel HD Graphics 688/854 MHz(J1900)
1 x VGA up to 1920 x 1200
1 x HDMI up to 1920 x 1200

1 x GbE LAN RJ-45 by intel i210AT(i211AT) controller

2 x Gigabit IEEE 802.3af/at (15.4W/25W) PoE port by RJ-45 with intel i210AT controller

1 x 3Pin Power input Connector
1 x 2Pin Power Switch

1 x RS232, DB9 (COM3, via TB-579IL)

1 x USB 3.0 (type A), 3 x USB 2.0 (type A)
2 x USB 2.0 (type A, Internal, via TB-579IL)

1 x 2.5" SATA2 HDD/SSD bay
1 x mSATA

1 x mini PCIe slot

DC 9~36V

180 x 130 x 67.5

2.15 Kg

CE / FCC Class A

-20˚C~70˚C

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows 7 32/64 bit , Windows 10

AVS-500

Intel 7th Gen. Core i7/i5/i3 Processor

Max: 150W

Q170

2 x 260-pin DDR4 SO-DIMM memory, up to 32GB

1 x Line out, 1 x Mic-in

1 x 8-bit GPIO, terminal block

1 x VGA
1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal block
1 x 2-pin power switch
1 x power button

1 x RS-232/422/485, DB9 (default RS-232)
1 x RS-232 DB9
1 x RS-422/485, DB9 (default RS-485)
1 x RS-232 DB9

4 x USB 3.0 type A
2 x USB 2.0 type A

2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray

2 x full-size Mini-PCIe slot

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

232 x 190 x 67 mm

Wall Mount (default) & Din Rail (optional)

3.3 kg

Meet CE/FCC Class A

-20˚C~60˚C(for i3/i5 model)
-20˚C~50˚C (for i7 model)

10 to 90% @ 40°C, non- condensing

-40~85 °C

Win10 IoT, Linux Kernel 4.15 (Ubuntu 16.04.4)

AVS-502

Intel 7th Gen. Core i7/i5/i3 Processor

Max: 150W

Q170

2 x 260-pin DDR4 SO-DIMM memory, up to 32GB

1 x Line out, 1 x Mic-in

1 x 8-bit GPIO, terminal block

1 x VGA
1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal block
1 x 2-pin power switch
1 x power button

1 x RS-232/422/485, DB9 (default RS-232)
1 x RS-232 DB9
1 x RS-422/485, DB9 (default RS-485)
1 x RS-232 DB9

4 x USB 3.0, type A
2 x USB 2.0, type A

2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray

Expansion Slot : 1 x PCIe-16, 1 x PCIe-4, default
1 x PCIe-16, 1 x PCI, optional

2 x full-size Mini-PCIe slot

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

222 x 190 x 117 mm

Wall Mount (default) & Din Rail (optional)

4.1 kg

Meet CE/FCC Class A

-20˚C~60˚C(for i3/i5 model)
-20˚C~50˚C (for i7 model)

10 to 90% @ 40°C, non- condensing

-40~85 °C

Win10 IoT, Linux Kernel 4.15 (Ubuntu 16.04.4)

AVS-504

Intel 7th Gen. Core i7/i5/i3 Processor

Max: 150W

Q170

2 x 260-pin DDR4 SO-DIMM memory, up to 32GB

1 x Line out, 1 x Mic-in

1 x 8-bit GPIO, terminal block

1 x VGA
1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal block
1 x 2-pin power switch
1 x power button

1 x RS-232/422/485, DB9 (default RS-232)
1 x RS-232 DB9
1 x RS-422/485, DB9 (default RS-485)
1 x RS-232 DB9

4 x USB 3.0, type A
2 x USB 2.0, type A

2 x 2.5” SATA3 HDD/SSD, Easy-swappable HDD tray

Expansion Slot : 1 x PCIe x16, 1 x PCIe x4, default
4 x PCI, optional

2 x full-size Mini-PCIe slot

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

222 x 190 x 157 mm

Wall Mount (default) & Din Rail (optional)

4.4 Kg

Meet CE/FCC Class A

-20˚C~60˚C(for i3/i5 model)
-20˚C~50˚C (for i7 model)

10 to 90% @ 40°C, non- condensing

-40~85 °C

Win10 IoT, Linux Kernel 4.15 (Ubuntu 16.04.4)

FABS-912APR/H

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 450 (default), 500 (optional)
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache, 2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache, 2.30 GHz)

FABS-912AP: 48W (MAX)

SoC

1 x DDR4 SO-DIMM Socket

TPM 2.0

1 x Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB-9, default RS-232 (COM1)
1 x RS-232 DB-9 (COM2)

2 x USB 3.0 type A

1 x 2.5” SATA HDD space (Easily Accessible)

1 x Mini-PCIe (full size)

Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)

1000:1

12.1" TFT-LCD

Standard: 450 (default), 500 (optional)
High Brightness: 1000

16.7M (default), 16.2M (optional)

800 x 600 (default)
1024 x 768 (optional)

176 / 176 (default), 178 / 178 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

304 Stainless Steel Front Bezel (default)
316L Stainless Steel Front Bezel (for option)
Aluminum Die-casting Back Cover

331 x 257 x 52 mm

IP66/IP69K compliant front bezel

Panel mount, VESA mount 100 x 100

3.4 kg

CE/FCC Class A
EN 1672-2 Compliant for P Model (optional)

0~50˚C / -20~60°C (option)

10 to 90%@ 40°C, non-condensing

-30~70°C

Windows 10 IoT

12.1" SVGA fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Resistive / Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis

FABS-915APR/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 300
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache, 2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache, 2.30 GHz)

FABS-915AP: 48W (MAX)

SoC

1 x DDR4 SO-DIMM Socket

TPM 2.0

1 x Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB-9, default RS-232 (COM1)
1 x RS-232 DB-9 (COM2)

2 x USB 3.0 type A

1 x 2.5” SATA HDD space (Easily Accessible)

1 x Mini-PCIe (full size)

70,000

Standard: 1000:1
High Brightness: 800:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1024 x 768

176 / 176

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

304 Stainless Steel Front Bezel (default)
316L Stainless Steel Front Bezel (for option)
Aluminum Die-casting Back Cover

422 x 322 x 54.1 mm

IP66/IP69K compliant front bezel

Panel mount, VESA mount 100 x 100

5.2 kg

CE/FCC Class A
EN 1672-2 Compliant for P Model (optional)

0~50˚C / -20~60°C (option)

10 to 90%@ 40°C, non-condensing

-30~70°C

Windows 10 IoT

15" XGA fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Resistive / Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis

●VESA Stand ●4G LTE/Wi-Fi/BT ●4 x USB 2.0 (TB-528U4) ●4 x USB 2.0 + 1 x Mini PCIe + 1 x SIM slot (TB-528U4ME1) ●2 x COM (RS-232) (TB-528C2) ●1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) ●1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) ●2 x COM (RS-232) + 1 x Mini PCIe slot + 1 x SIM slot (TB-528C2ME1) ●2 x COM (RS-422/485, isolated) (TB-528C2I) ●2 x CAN (TB-528CAN2) ●1 x LAN + 2 x USB 2.0 (TB-528E1U2) ●1 x LAN(45W isolated PoE PD) + 2 x USB 2.0 type A (TB528E1U2UPOE)* ●Backup Bat

FABS-917APR/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache, 2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache, 2.30 GHz)

FABS-917AP: 54W (MAX)

SoC

1 x DDR4 SO-DIMM Socket

TPM 2.0

1 x Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB-9, default RS-232 (COM1)
1 x RS-232 DB-9 (COM2)

2 x USB 3.0 type A

1 x 2.5” SATA HDD space (Easily Accessible)

1 x Mini-PCIe (full size)

Standard: 30,000
High Brightness: 50,000

1000:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1280 x 1024

Standard: 170 / 160
High Brightness: 140 / 140

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

304 Stainless Steel Front Bezel (default)
316L Stainless Steel Front Bezel (for option)
Aluminum Die-casting Back Cover

449 x 358.4 x 63.8 mm

IP66/IP69K compliant front bezel

Panel mount, VESA mount 100 x 100

6.3 kg

CE/FCC Class A
EN 1672-2 Compliant for P Model (optional)

0~50˚C / -20~60°C (option)

10 to 90%@ 40°C, non-condensing

-30~70°C

Windows 10 IoT

17" SXGA fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Resistive / Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.

FABS-919APR/H

19" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard: 350
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache, 2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache, 2.30 GHz)

FABS-919AP: 56W (MAX)

SoC

1 x DDR4 SO-DIMM Socket

TPM 2.0

1 x Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB-9, default RS-232(COM1)
1 x RS-232 DB-9(COM2)

2 x USB 3.0 type A

1 x 2.5" SATA HDD space (Easily Accessible)

1 x Mini-PCIe (full size)

50,000

1000:1

19" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

170 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

304 Stainless Steel Front Bezel (default)
316L Stainless Steel Front Bezel (for option)
Aluminum Die-casting Back Cover

485 x 398 x 63.8 mm

IP66/IP69K compliant front bezel

Panel mount, VESA mount 100 x 100

7.28 kg

CE/FCC Class A
EN 1672-2 Compliant for P Model (optional)

0~50˚C / -20~60°C (option)

10 to 90%@ 40°C, non-condensing

-30~70°C

Windows 10 IoT

19" SXGA fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Resistive / Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassi

FABS-921APR/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive

Standard:: 250
High Brightness: 1000

Intel 6th Gen. Core i3-6100U Processor(3M Cache, 2.30 GHz)
Intel 6th Gen. Core i5-6300U Processor(3M Cache, 2.30 GHz)

FABS-921AP: 64W (MAX)

SoC

1 x DDR4 SO-DIMM Socket

TPM 2.0

1 x Line Out

2 x GbE LAN RJ-45

1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector

1 x RS-232/422/485 DB-9, default RS-232(COM1)
1 x RS-232 DB-9(COM2)

2 x USB 3.0 type A

1 x 2.5" SATA HDD space (Easily Accessible)

1 x Mini-PCIe (full size)

Standard:: 50,000
High Brightness: 30,000

1000:1

21.5" TFT-LCD

Standard:: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

304 Stainless Steel Front Bezel (default)
316L Stainless Steel Front Bezel (for option)
Aluminum Die-casting Back Cover

573.8 x 378.8 x 59.8 mm

Front Panel IP66/IP69K

Panel mount, VESA mount 100 x 100

7.88 kg

CE/FCC Class A
EN 1672-2 Compliant for P Model (optional)

0~50°C

10 to 90%@ 40°C, non-condensing

-30~70°C

Windows 10 IoT

21.5" Full HD fanless HMI barebone with Intel 6th Corei3-6100U CPU, DDR4 SO-DIMM Socket, Resistive / Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.

OPC-5128R/P

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive

450 (default), 500 (optional)

Intel Celeron N2930 Processors

OPC-5128R: 18.7W
OPC-5128P: 19.5W

SoC

Onboard 4GB DDR3L 1600MHz

1 x Audio line out

2 x GbE LAN RJ-45

1 x 3-pin DC Power input terminal, 1 x 2-pin Connector for power on/off button

1 x RS-232/422/485 DB-9, Default RS-232, COM1, 1 x RS-232 DB-9, COM2, Option:2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1, 2 x CAN bus via TB-528CAN2, 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power Button via TB-528C1U2P1

2 x USB 3.0 type A

1 x 2.5" SATA HDD bay for SATA HDD

1 x Intel Mini-PCIe slot full size

50000

800:1 (default), 700:1 (optional)

12.1" TFT-LCD

450 (default), 500 (optional)

262K (default), 16.2M (optional)

800 x 600 (default), 1024 x 768 (optional)

160 / 150 (default), 160 / 140 (optional)

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

323 x 263 x 54

Front IP65 compliant

3.7 Kg

CE / FCC Class A

0~40°C without fan / 0~60°C with fan

10~90% @40 °C, non-condensing

-20~60

Windows Embedded Compact 7,Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT 2016LTSB

OPC-5168R(P):
12.1" SVGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen (Projected capacitive touch), 9~36VDC input with adapter, steel enclosure

OPC-5158R/P

15" TFT-LCD

P: Projected Capacitive/ R: Resistive

450

Intel Celeron N2930 Processors

OPC-5158R: 19.3W
OPC-5158P: 20.1W

SoC

Onboard 4GB DDR3L 1600MHz

1 x Audio line out

2 x GbE LAN RJ-45

1 x 3-pin DC Power input terminal, 1 x 2-pin Connector for power on/off button

1 x RS-232/422/485 DB-9, Default RS-232, COM1, 1 x RS-232 DB-9, COM2, Option:2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1, 2 x CAN bus via TB-528CAN2 ,2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power Button via TB-528C1U2P1

2 x USB 3.0 type A

1 x 2.5" SATA HDD bay for SATA HDD

1 x Intel Mini-PCIe slot full size

60000

800:1

15" TFT-LCD

450

16.7M

1024 x 768

160 / 140

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

385 x 299.5 x 54.8

Front IP65 compliant

4.9 Kg

CE / FCC Class A

0~40°C without fan / 0~60°C with fan

10~90% @40 °C, non-condensing

-20~60

Windows Embedded Compact 7,Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT 2016LTSB

OPC-5158R(P):
15" XGA fanless open frame PC with AtomN2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen (Projected capacitive touch), 9~36VDC input with adapter, steel enclosure

OPC-5168R/P

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive

300

Intel Celeron N2930 Processors

OPC-5168R: 19.4W
OPC-5168P: 21.5W

SoC

Onboard 4GB DDR3L 1600MHz

1 x Audio line out

2 x GbE LAN RJ-45

1 x 3-pin DC Power input terminal, 1 x 2-pin Connector for power on/off button

1 x RS-232/422/485 DB-9, Default RS-232, COM1, 1 x RS-232 DB-9, COM2, Option:2 x RS-232 DB-9 + 1 x Mini-PCIe slot via TB-528C2ME1, 2 x CAN bus via TB-528CAN2 ,2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1 x RS-232 DB-9 + 1 x Power Button via TB-528C1U2P1

2 x USB 3.0 type A

1 x 2.5" SATA HDD bay for SATA HDD

1 x Intel Mini-PCIe slot full size

50000

500:1

15.6" TFT-LCD

300

16.7M

1366 x 768

160 / 160

USB

Projected Capacitive Touch: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

447 x 297 x 61.8

Front IP65 compliant

5.0 Kg

CE / FCC Class A

0~40°C without fan / 0~60°C with fan

10~90% @40 °C, non-condensing

-20~60

Windows Embedded Compact 7,Windows Embedded Standard 7, Windows 7 Pro(FES), Windows 7 Ultimate(FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT 2016LTSB

OPC-5168R(P):
15.6" WXGA fanless open frame PC with Celeron N2930 1.83G CPU, 4GB DDR3 RAM, Resistive touch screen (Projected capacitive touch), 9~36VDC input with adapter, steel enclosure

ACS-2310

Intel Celeron N2930 Processors

MAX: 17.8W

SoC

1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz

1 x Line Out

1 x VGA, 1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal, 1 x power button with LED light

1 x RS-232/422/485 DB-9, COM1, default RS-232
2 x RS-232 DB-9, COM2 and COM3

2 x USB 3.0 type A,
4 x USB 2.0 type A

1 x 2.5" SATA2 HDD space

1 x Mini-PCIe slot full size,
1 x Mini-PCIe slot full size (shared with mSATA)

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

207 x 130 x 35.5

IP30

Wall Mount

1.0 Kg

CE / FCC Class A

0~50 °C / -20~60°C (option)

10 to 90% @ 40°C, non- condensing

-30~70 °C

Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT ENT 2016 LTSB Entry, Windows 10 IoT 2019, Windows 10 IoT 2021

Fanless Box PC, Intel Celeron N2930 CPU, 2GB DDR3L memory, 16GB MLC SSD, 1 x Mini-PCIe slot Full size, 1 x Mini-PCIe slot Full size (shared with mSATA), DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heatsink

ACS-2311

Intel Celeron N2930 Processors

MAX: 17W

SoC

1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz

1 x Line Out

1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal, 1 x power button with LED light

1 x RS-232/422/485 DB-9, COM1, default RS-232
2 x RS-232 DB-9, COM2

2 x USB 3.0 type A,
4 x USB 2.0 type A

1 x VGA

1 x 2.5" SATA2 HDD space (easy accessible)

1 x Mini-PCIe slot full size
1 x Mini-PCIe slot full size (shared with mSATA)

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

180 x 130 x 55

IP30

Wall Mount / Din Rail (option)

1.3 Kg

CE / FCC Class A

0~50 °C / -20~60°C (option)

10 to 90% @ 40°C, non- condensing

-30~70 °C

Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT ENT 2016 LTSB Entry, Windows 10 IoT 2019, Windows 10 IoT 2021

Fanless Box PC, Intel Celeron N2930 CPU, 4GB DDR3L memory, 32GB MLC SSD, 1 x Mini-PCIe slot Full size, 1 x Mini-PCIe slot Full size (shared with mSATA), DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heatsink

Option I/O for either one:
1 x RS-232 DB-9, COM3
1 x GPIO 8-bit digital I/O (4 x DI, 4 x DO)

ACS-2312

Intel Celeron N2930 Processors

MAX: 21.6W

SoC

2 x 204-pin DDR3L SO-DIMM slot up to 8GB

1 x Mic-in, 1 x Line-out

1 x 8-bit GPIO (4 x DI, 4 x DO) Digital I/O, 1-5V, 1-GND

1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin terminal block for DC power input,
1 x 2-pin power switch,
1 x on/off power button

1 x RS-232/422/485 DB-9, COM1, default RS-232
1 x RS-232 DB-9, COM2
1 x RS-422/485 DB-9, COM3, default RS-422
1 x RS-232/422/485 DB-9, COM4, default RS-232

4 x USB 3.0 type A
4 x USB 2.0 type A

1 x VGA

1 x 2.5" SATA2 HDD bay for SATA2 HDD (Easy Accessible)

1 x Mini-PCIe slot full size
1 x Mini-PCIe slot full size (shared with mSATA)

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

230 x 195 x 125.7

IP20

Wall Mount

4.3 Kg

CE / FCC Class A

0~50 °C / -20~60°C (option)

10 to 90% @ 40°C, non- condensing

-30~70

Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021

Fanless Box PC, Intel Celeron N2930 CPU, 4GB DDR3L memory, 32GB MLC SSD, 1 x mini-PCIe slot full size, 2 x PCIe x1 slots, DC 9~36V power input with adaptor, Steel chassis with Aluminum heatsink

ACS-2320A

Intel 6th Gen. Core i3/i5/i7 Processors

MAX: 24W

SoC

1 x 260-pin DDR4 SO-DIMM up to 16GB 2133MHz FSB

1 x Line-out

1 x HDMI

2 x GbE LAN RJ-45

1 x 3-pin DC power input terminal,
1 x power button

1 x RS-232/422/485 DB-9, Default RS-232, COM1
1 x RS-232 DB-9, COM2

2 x USB 3.0 type A,
4 x USB 2.0 type A

1 x VGA

1 x 2.5" SATA3 HDD bay (easy accessible)

1 x Mini-PCIe Slot Full Size

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

247 x 149 x 68

IP30

Wall Mount

2.5 Kg

CE / FCC Class A

0~50 °C / -20~60°C (option)

10 to 90% @ 40°C, non- condensing

-30~70˚C

Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021

ACS-2330

Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors

MAX: 56.3W

Intel H170 Chipset

2 x 260-pin SO-DIMM slot up to 32GB DDR4 1866/2133 MHz

1 x Line-in, 1 x Line-out, 1 x Mic

1 x DP

1 x DVI-I

1 x GPIO 8-bit digital I/O(4 x DI, 4 x DO)

1 x HDMI

4 x GbE LAN RJ-45

1 x 3-pin DC power input terminal, 1 x power button with light

2 x RS-232/422/485 DB-9, COM1/COM2, default RS-232
2 x RS-232 DB-9, COM3/COM4

4 x USB 3.0 type A,
2 x USB 2.0 type A

2 x 2.5” SATA3 HDD bay (easy accessible), support RAID 0.1

3 x Mini-PCIe slot full size (one shared with mSATA)

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

277.8 x 230 x 86.7

IP20

Wall Mount / Din Rail (option)

4.5 Kg

CE / FCC Class A

0~50 °C / -20~60°C (option)

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021

Fanless Box PC, Intel 6th/7th Core i CPU, 2 x SO-DIMM, DDR4 slots, 2 x 2.5” HDD space, 3 x mini-PCIe slots, DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heat sink

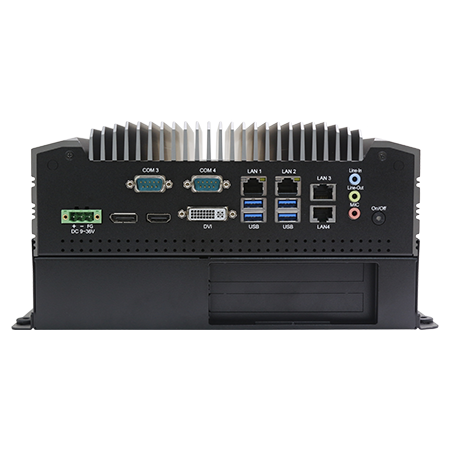

ACS-2332

Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors

MAX: 60.4W

Intel H170 Chipset

2 x 260-pin SO-DIMM slot up to 32GB DDR4 1866/2133 MHz

1 x Line-in, 1 x Line-out, 1 x Mic

1 x DP

1 x DVI-I

1 x GPIO 8-bit digital I/O(4 x DI, 4 x DO)

1 x HDMI

4 x GbE LAN RJ-45

1 x 3-pin DC power input terminal, 1 x power button with light

2 x RS-232/422/485 DB-9, COM1/COM2, default RS-232
2 x RS-232 DB-9, COM3/COM4

4 x USB 3.0 type A,
2 x USB 2.0 type A

2 x 2.5” SATA3 HDD bay (easy accessible), support RAID 0.1

2 x PCIe x1 slots default
1 x PCIe x4 slot option

3 x Mini PCIe slot full size (one shared with mSATA)

DC 9~36V

Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis

280 x 230 x 134.6

IP20

Wall Mount

5.5 Kg

CE / FCC Class A

0~50 °C / -20~60°C (option)

10 to 90% @ 40°C, non- condensing

-40~85 °C

Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021

Fanless Box PC, Intel 6th/7th Core i CPU, 2 x SO-DIMM, DDR4 slots, 2 x 2.5” HDD space, 3 x mini-PCIe slots, 2 x PCIe x1 slot, DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heat sink

ViPAC-915PRG/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 300
High Brightness: 1000

Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors

Intel Q170

2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

2 x 2.5" SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design)

1 x Full-size Mini PCIe (PCIe/USB/SATA,SATA by default)
1 x Half-size Mini PCIe (PCIe/USB, PCIe by default)
1 x SIM slot for option(wifi/BT/4G and antenna at rear side)
1 x PCIe x1 and 1 x PCIe x16 slot via TB-560E11E161 (default)

Standard: 70,000
High Brightness: 50,000

Standard: 2000:1
High Brightness: 800:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 262K / 16.7M

1024 x 768

Standard: 160 / 150
High Brightness: 176 / 176

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

410 x 310 x 96.7 mm

Front Panel IP66

Panel Mount

6.3 Kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-915R/P(H):
15" XGA (High Brightness) Intel Core 6th Core i processor with Q170 chipset, with Fan design panel PC, 2 x 260-pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIe x1 and 1 x PCIe x16 slot, resistive touch window/ projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-815PRG/H

15" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 300
High Brightness: 1000

Onboard Intel Celeron N2930 (2M Cache,1.83GHz)

SoC

2 x 204-pin DDR3L SO-DIMM slot up to 8GB

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)

1 x Full-size Mini PCIe (PCIe/USB/SATA,SATA by default)
1 x Half-size Mini PCIe (PCIe/USB, PCIe by default)
1 x SIM slot for option(wifi/BT/4G, antenna at rear side)
1 x PCI and 1 x PCIe x1 slot via TB-560P1E11 (default)

Standard: 70,000
High Brightness: 50,000

Standard: 2000:1
High Brightness: 800:1

15" TFT-LCD

Standard: 300
High Brightness: 1000

Standard: 16.2M
High Brightness: 16.7M

1024 x 768

Standard: 176 / 176
High Brightness: 160 / 150

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

410 x 310 x 96.7 mm

Front Panel IP66

Panel Mount

6.3 Kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-815R(P):
15" XGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch (projected capacitive touch) window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-916PRG/H

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 300(typ) / 240(Min)
High Brightness: 1000

Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors

Intel Q170

2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

2 x 2.5" SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design)

50,000

500:1

15.6" TFT-LCD

Standard: 300(typ) / 240(Min)
High Brightness: 1000

16.7M

Standard: 1366 x 768 / 1920 x 1080(option)
High Brightness: 1366 x 768

160 / 160

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

412 x 277.5 x 96 mm

Front Panel IP66

Panel Mount

6.5 kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-916R/P(H):
15.6" WXGA (High Brightness) Intel Core 6th Core i processor with Q170 chipset, with Fan design panel PC, 2 x 260-pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIex1 and 1 x PCIe x16 slot, resistive touch window/ projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-816PRG/H

15.6" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 300
High Brightness: 1000

Onboard Intel Celeron N2930 (2M Cache,1.83GHz)

SoC

2 x 204-pin DDR3L SO-DIMM slot up to 8GB

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)

50,000

500:1

15.6" TFT-LCD

Standard: 300
High Brightness: 1000

16.7M

Standard: 1366 x 768 / 1920 x 1080(option)
High Brightness: 1366 x 768

160 / 160

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

412 x 277.5 x 96 mm

Front Panel IP66

Panel Mount

6.5 kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-816R(P):
15.6" WXGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch (projected capacitive touch) window, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-917PRG/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors

Intel Q170

2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

2 x 2.5" SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design)

50,000

Standard: 800:1
High Brightness: 1000:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

Standard: 160 / 140
High Brightness: 170 / 160

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

439 x 348 x 95 mm

Front Panel IP66

Panel Mount

7.6 kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-917R/P(H):
17" SXGA (High Brightness) Intel Core 6th Core i processor with Q170 chipset, with Fan design panel PC, 2 x 260-pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIex1 and 1 x PCIe x16 slot, resistive touch window/ projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-817PRG/H

17" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

Onboard Intel Celeron N2930 (2M Cache,1.83GHz)

SoC

2 x 204-pin DDR3L SO-DIMM slot up to 8GB

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block Power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)

50,000

Standard: 800:1
High Brightness: 1000:1

17" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 1024

Standard: 160 / 140
High Brightness: 170 / 160

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

439 x 348 x 95 mm

Front Panel IP66

Panel Mount

7.6 kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-817R(P):
17" SXGA Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch (projected capacitive touch) window, 9~36VDC power input with adaptor, Alu.die-casting front bezel

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-921PRG/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 250
High Brightness: 1000

Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors

Intel Q170

2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

2 x 2.5" SATA HDD space, support RAID 0, 1, 5 (Easily Accessible storage design)

Standard: 30,000
High Brightness: 50,000

3000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis,
Stainless front bezel (option)

557.3 x 362.3 x 99.8 mm

Front Panel IP66

Panel Mount

8.7 kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-921R/P(H):
21.5" FHD (High Brightness) Intel Core 6th Core i processor with Q170 chipset, with Fan design panel PC, 2 x 260-pin DDR4 SO-DIMM slot, 2 x 2.5" HDD/SSD space, 1 x PCIex1 and 1 x PCIe x16 slot, resistive touch window/ projected capacitive touch, 9~36VDC power input with adaptor, Alu.die-casting front bezel.

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViPAC-821PRG/H

21.5" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 250
High Brightness: 1000

Onboard Intel Celeron N2930 (2M Cache,1.83GHz)

SoC

2 x 204-pin DDR3L SO-DIMM slot up to 8GB

1 x Line-out/Mic-in

1 x HDMI with Cover

2 x RJ45 GbE LAN

1 x 2 pin terminal block for external power switch
1 x 3 pin terminal block Power connector
1 x power switch on/of

1 x DB9 RS-232/422/485 default RS-232
1 x DB9 RS-232
1 x DB9 RS-422/485 default RS-485

4 x USB3.0 type A

1 x DB15 VGA

1 x 2.5" SATA HDD Space (Easy Accessible Storage Design)

Standard: 30,000
High Brightness: 50,000

3000:1

21.5" TFT-LCD

Standard: 250
High Brightness: 1000

16.7M

1920 x 1080

178 / 178

USB

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V, Option AC power input

Aluminum die-casting front bezel and steel chassis
Stainless front bezel (option)

557.3 x 362.3 x 99.8 mm

Front Panel IP66

Panel Mount

8.3 kg

CE/FCC class A

0~50

10 to 95% @ 40°C, non- condensing

-30~70

Windows embedded 7, Windows embedded 8.1, Windows 10 IoT

ViPAC-821R(P):
21.5" FHD Intel Celeron N2930 (1.83.GHz ) CPU, Fanless panel PC, 2 x 204pin DDR3L SO-DIMM slot, 1 x 2.5" HDD/SSD space, 2 x PCIex1 slot, resistive touch (projected capacitive touch) window, 9~36VDC power input with adaptor, Alu.die-casting front bezel

● 4 x USB 2.0 Type A via TB-546 ● 2 x DB9 COM port ● 1 x 8-bit GPIO (3 in/out/VCC/GND) ● 2 x 2W speaker at rear side

ViTAM-610PRG/H

10.1" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 350
High Brightness: 1000

NXP Freescale i.MX6 Dual Lite, ARM Cortex A9(2x Cores,1.0GHz)

ViTAM-610P: 10W

SoC

Onboard 1GB DDR3 SDRAM

1 x M12 8-pin for LAN with waterproof cover and chain (PoE for option)

1 x M12 3-pin for DC power with waterproof cover and chain
1 x Power switch on the rear
1 x Touch on/off button on the side

1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

Onboard 4GB eMMC NAND Flash

RFID module design on the front side(optional)

1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE (optional)

Standard: 25,000
High Brightness: 50,000

800:1

10.1" TFT-LCD

Standard: 350
High Brightness: 1000

16.7M

1280 x 800

170 /170

Projected Capacitive Touch/ Glass: USB
Resistive Touch: SPI

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

304 Stainless steel chassis(default)
316 Stainless steel chassis(optional)

300 x 220 x 53

Total IP66/IP69K

VESA mount 75 x 75, Yoke mount for optional

3.8 kg

CE/FCC Class A

0~50°C / -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux kernel 4.9.88:Yocto + Chromium Browser V67

2 x M12 blank for option
● 1 x CAN ● 1 x PoE

ViTAM-612PRG/H

12.1" TFT-LCD

P: Projected Capacitive/ R: Resistive/ G: Glass

Standard: 450 (default), 500 (optional)
High Brightness: 1000

NXP Freescale i.MX6 Dual Lite, ARM Cortex A9(2x Cores,1.0GHz)

ViTAM-612P:12W

SoC

Onboard 1GB DDR3 SDRAM

1 x M12 8-pin for LAN with waterproof cover and chain (PoE for option)

1 x M12 3-pin for DC power with waterproof cover and chain
1 x Power switch on the rear
1 x Touch on/off button on the side

1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain

1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain

Onboard 4GB eMMC NAND Flash

RFID module design on the front side(optional)

1 x Full-size mini-PCIe socket (PCIe + USB) for WIFI/BT/LTE (optional)

Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)

1000:1

12.1" TFT-LCD

Standard: 450 (default), 500 (optional)
High Brightness: 1000

16.7M (default), 16.2M (optional)

800 x 600 (default)
1024 x 768 (optional)

176 / 176 (default), 178 / 178 (optional)

Projected Capacitive Touch/ Glass: USB
Resistive Touch: SPI

Projected Capacitive Touch/ Glass: Over 90%
Resistive Touch: 80%

P: Projected Capacitive/ R: Resistive/ G: Glass

DC 9~36V

304 Stainless steel chassis(default)
316 Stainless steel chassis(optional)

335 x 265 x 53

Total IP66/IP69K

VESA mount 75 x 75, Yoke mount (optional)

4.7 kg

CE/FCC Class A

0~50°C / -20~60°C (option)

10 to 95% @ 40°C, non- condensing

-30~70°C

Android 6.0.1 / Linux kernel 4.9.88:Yocto + Chromium Browser V67

2 x M12 blank for option
● 1 x CAN ● 1 x PoE
