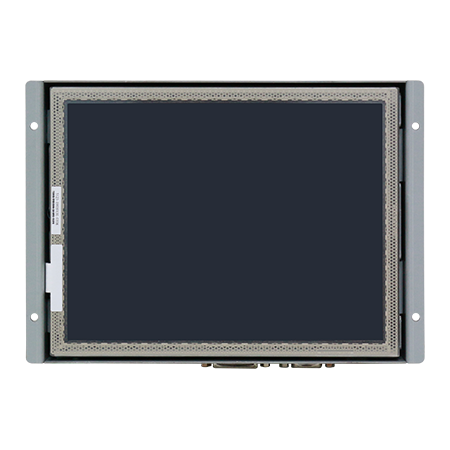

OPD-1086C

LCD

LCD Size

Touch Type

Luminance(cd/m²)

System

Power Consumption

I/O Port

Audio

DVI

HDMI

OSD Control Membrane

Power

USB

VGA

Display

Backlight lifetime(hrs)

Contrast

LCD Size

Luminance(cd/m²)

Max. color

Max. resolution

Viewangle(H°/V°)

Touch Screen(Option)

Interface

Light transmission(%)

Touch Type

Power

Power input

Mechanical

Construction

Dimension(mm)

Mounting

Net weight(Kgs)

Environment

Certification

Operating temperature(°C)

Storage humidity

Storage temperature(°C)

Ordering Information

Barebone

Download

Data Sheet

8" TFT-LCD

Resistive Touch

Standard: 450
High Brightness1000:

OPD-1086C(T): 5W(MAX)

1 x Audio Line-in phone jack

1 x DP

1 x DVI-D

1 x HDMI

MEMBRANE, OSD on the rear side

1 x 3 pins terminal block for DC power input

1 x VGA

Standard: 40,000
High Brightness: 20,000

500:1

8" TFT-LCD

Standard: 450
High Brightness1000:

16.2M

800 x 600

140 / 120

USB default
RS-232 option

Resistive Touch: 80%

Resistive Touch

DC 9~36V

Steel Chassis

208 x 191 x 42 mm

Panel mount / VESA mount 75 x 75

1.3 kg

CE/FCC, Class A

0~50°C

10 to 95% @ 40°C, Non-condensing

-30~70˚C

OPD-1086C: 8” 800x600 industrial display, VGA, DVI-D,HDMI,DP input, 5 keys front OSD, DC 9~36V power input, no touch with protective glass, steel chassis.

OPD-1086C(T): 8” 800x600 industrial display, VGA, DVI-D,HDMI,DP input, 5keys front OSD, DC 9~36V power input, 5-wire Resistive Touch, steel chassis.
