TI- AM3354, ARM Cortex A8 1.0GHz Processor
4" EPIC
-
Onboard 512MB DDR3 DRAM
Line-out by stack jack; Line-in, Line-out, MIC by via 2 x 6 pin header
1 x 2 pin header support ML 1220
1 x 10/100M LAN Port support POE (PD) Module 30W
1 x 10/100M LAN Port (Linux support for optional)
8-bits digital I/O via COM1 (4 x DI, 4 x DO)
1 x 3 Pin power input connector
1 x RS-232 / RS-422 / RS-485 (COM), DB-9 connector with 5/12 Ring by jumper
1 x Onboard SIM Slot
-
Onboard 512MB NAND Flash, 1 x Micro SD slot
-
2 x USB 2.0 (Type A) stack ports
1 x USB 2.0 for mini PCIe
1 x USB 2.0 via COM1
1 x USB 2.0 via COM3
-
1 x USB2.0
1 x I2C
1 x UART
1 x CAN (Support TB-508 Series)
1 x mini PCIe slot (USB2.0 Only, Full size)
Wide range DC 9~36V Input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)

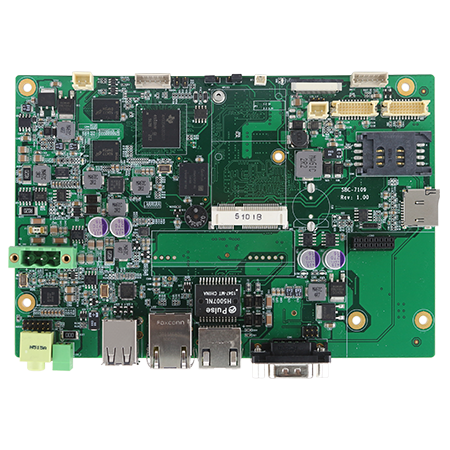

SBC-7109: 4" EPIC,TI-AM3354,512MB DDR3,512MB NAND FLASH, LVDS /TTL
Packing List: 1 x SBC-7109 4" SBC, 1 x ML1220 Battery
AMI/UEFI BIOS
4th Gen. Core: Intel Core i7-4650U Processor, Intel Core i5-4300U Processor, Intel Core i3-4010U Processor
4" EPIC
SoC
Onboard 4GB / 8GB DDR3L 1600MHz
1 x Stack Audio Jack, Realtek ALC662, Line-out; 2 x 6-pin header Line-in, Line-out, MIC
1 x 2 Pin header support CR2477 (1000mAH)
2 x GbE ports by RJ-45 with Intel 82574L Controller
8-bits digital I/O by header (4 x DI, 4 x DO), 4-bits digital I/O by header (2 x DI, 2 x DO)
1 x 3 Pin power input connector
1 x RS-232/RS422/RS485 (COM1), DB-9 Connector on I/O, pin 9 wth 5V/12V Ring select; 1 x RS-232(COM2) , DB-9 Connector on I/O, pin 9 with 5V/ 12V Ring select; 2 x UART(COM3,COM4) via CN3 (expansion connect); 2 x RS-422/485 pin header(COM5, COM6) via CN2
-
1 x Smart battery, Support 3 Serial Li battery by 10-pin header (BAT2)
1 x SATA3 connector, 7 Pin; 1 x SATA3 connector, 7+15 Pin
Fintek F81216AD / ITE IT8518E
2 x USB 3.0 external stack ports, 1 x USB 2.0 pin header via CN1, 1 x USB 2.0 pin header via CN2, 2 x USB 2.0 pin header via CN3, 1 x USB 2.0 for mini PCIe
Watchdog timeout can be programmable by Software support 1~255 sec
-
1 x mini PCIe slot (Full-size)
Intel HD Graphics Series
2 x 20 Pin header
1 x HDMI
1 x 18/24-bit dual channel LVDS
HDMI + LVDS / HDMI + eDP / LVDS + eDP / HDMI + LVDS + eDP
Up to 1920x1200 for eDP, HDMI, LVDS
-
Wide Range DC 6~36V input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
TB-528U4, TB-528U4ME1, TB-528C1U2, TB-528C1U2P1, TB-528C2, TB-528C2ME1, TB-528C2I, TB-528CAN2, TB-528E1U2, TB-528E1U2POE, TB-528E1U2UPOE, TB-531A
ViTAM 9xx, APC-3x95, APC-3x20, ARCHMI-9xx, ACS-2320, ACS-2180
SBC-7110: 4" EPIC, Intel 4th Gen. Core i7/i5/i3 Processor SoC, onboard 4GB DDR3L, 18/24-bit dual channel LVDS
TB-528 SeriesI/O Board for SBC-7110, Packing List, 1 x SBC-7110 4" SBC, 1 x Driver CD, 1 x CR2477 Battery, 1 x SATA 7+15Pin to SATA 7pin/SATA Power 2pin Cable (L=18cm)
AMI/UEFI BIOS
Intel Atom E3845 Processor
Intel Celeron N2930 / N2807 Processor
4" EPIC
SoC
Onboard 4GB/8GB DDR3L 1333MHz
1 x Stack Audio Jack, Realtek ALC662, Line-out
2 x 6-pin header Line-in, Line-out, MIC
1 x 2 Pin header support CR2477 (1000mAH)
2 x GbE ports(RJ45) with Intel I210 Controller
8-bit digital I/O by header (4 x DI, 4 x DO)
1 x 3-Pin power input connector
1 x RS-232/RS422/RS485 (COM1), DB-9 Connector on I/O, pin 9 with 5V/12V Ring select
1 x RS-232(COM2) , DB-9 Connector on I/O, pin 9 with 5V/12V Ring select
2 x UART(COM3,COM4) via CN3 (expansion connect)
1 x RS-422/485 pin header (COM5, COM6) via CN2
-
Support 3 Serial Li battery by 10-Pin header (BAT2)
1 x SATA2 connectors, 7-Pin (optional)
1 x SATA2 connectors, 7+15-Pin
1 x Micro SD Slot
ITE IT8518E
Fintek F81216AD
2 x USB 3.0 external stack ports
1 x USB 2.0 Pin header via CN1
1 x USB 2.0 Pin header via CN2
2 x USB 2.0 Pin header via CN3
1 x USB 2.0 for mini PCIe
Watchdog timeout can be programmable by software support 1~255 sec
Intel HD Graphics Series
-
1 x HDMI
1 x 18/24-bit dual channel LVDS
-
Up to 1920 x 1200 for VGA, HDMI, LVDS
2 x 6-Pin header
Wide range DC 9~36V input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
4" EPIC, Intel Atom E3845 / Celeron N2930 / Celeron N2807 Processors SoC, onboard 4G/8G DDR3L, 18/24-bit dual channel LVDS, SBC-7111
TB-528 Series: I/O Board for SBC-7111
Packing List: 1 x SBC-7111 4" SBC, 1 x CR2477 Battery
-
Freescale ARM Cortex A9 i.MX6 Dual Lite (Quad for Optional) 1.00 GHz Processor
4" EPIC
-
On board 1GB DDR3 Memory
1 x Speaker-out (Optional)
1 x 2 pin header support ML1220
1 x LAN 10/100/1000M Ports support POE (PD) Module 30W (Module for optional)
-
1 x 3 Pin power input connector
1 x RS-232/RS-422/RS-485 (COM1), DB-9 connector pin 9 with 5V/12V Ring select
1 x Onboard SIM Slot
-
Onboard 4GB eMMC Flash, 1 x Micro SD Slot
-
2 x USB 2.0 (Type A) stack ports
1 x USB 2.0 OTG
1 x USB 2.0 for MIO
1 x USB 2.0 for COM2
-
1 x CAN, 1 x I2C, 1 x UART via COM2 (Support TB-508 Series)
1 x mini PCIe slot (Full size)
-
-
1 x HDMI (Option)
2 x 18-bit Single Channel LVDS or 1 x 18/24-bit Dual Channel LVDS
-
-
-
Wide range DC 9~36V Input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
SBC-7112: 4" EPIC, Freescale ARM Cortex A9 i.MX6 Dual Lite 1.00 GHz CPU, 1G DDR3, 4GB eMMC, LVDS
Packing List: 1 x SBC-7112 4" SBC, 1 x ML1220 Battery
AMI/UEFI BIOS
6th Gen. Core: Intel Core i7 / i5 / i3
7th Gen. Core: Intel Core i7 / i5 / i3
4" EPIC
SoC
1 x 260-Pin SO-DIMM up to 32GB DDR4 2133MHz
Support Audio Via Realtek ALC662-VD
1 x Audio Phone Jack
1 x 2 x 6-Pin header, Line in/Line out/MIC in
1 x 2-Pin header support CR2477 (1000mAH)
2 x GbE ports(RJ45) with Intel I210 Controller
2 x 8-bit GPIO (4 x DI, 4 x DO) via CN2/CN3
1 x 3-Pin power input connector
1 x RS-232/RS422/RS485 Selectable by BIOS (COM1), DB-9 Connector on I/O (with Auto flow control)
1 x RS-232 (COM2), DB-9 Connector on I/O
2 x UART (COM3/4) via CN3 (Header 2 x 30-Pin)
2 x RS-422/485 pin header (COM5/6) via CN2 (DF13A-30-Pin)
-
Support 3 Serial Li battery by 10-Pin header (BAT2)
2 x SATA3 Connectors
1 x mSATA (Shared with mini PCIe)
ITE IT8518E
Nuvoton NCT6106D / Fintek F81216AD (Co-lay)
2 x USB 3.0 external stack ports
1 x USB 2.0 via CN1
1 x USB 2.0 via CN2
2 x USB 2.0 via CN3
1 x USB 2.0 internal for mini PCIe
Watchdog timeout can be programmable by software support 1~255 sec
-
1 x mini PCIe slot (shared with mSATA)
Intel HD Graphics Series
2 x 20-Pin header
1 x HDMI
1 x 18/24-bit Dual Channel LVDS
-
Up to 3840 × 2160 for EDP, HDMI
Up to 1920 x 1080 for LVDS
-
Wide range DC 9~36V input
1 x 3-Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
4" EPIC, 6th/7th Generation, Intel Skylake Core i7/i5/i3 Processors, SoC, SO-DIMM DDR4, DP/HDMI/eDP/LVDS
TB-528 Series I/O Board for SBC-7114
Packing List: 1 x SBC-7114 4" SBC, 1 x CR2477 Battery
AMI/UEFI BIOS
Intel Pentium N4200 Processor
Intel Celeron N3350 Processor
4" EPIC
SoC
Onboard 4GB/8GB DDR3L 1600MHz
Support Audio Via Realtek ALC269-VB
1 x Audio Phone Jack
1 x Audio Header by 2 x 6-Pin header, Line in/Line out/MIC in with Amplify Supply up to 2W(4Ω) Speaker
1 x 2-Pin header support CR2477 (1000mAH)
2 x GbE ports(RJ45) with Intel I210 Controller
8-bit digital I/O by header (4 x DI, 4 x DO)
1 x 3-Pin power input connector
1 x RS-232/422/485 port, DB-9 connector for external, pin 9 with 5V/12V/Ring select (with Auto flow control)
1 x RS-232 port, DB-9 connector for external, pin 9 with 5V/12V/Ring select
2 x UART for expansion connect
2 x RS-422/485 pin header
1 x Micro SIM Slot (via Micro SD/Micro SIM Combo Slot)
Support 3 Serial Li battery by 10-Pin header
2 x SATA3 Connectors
1 x Micro SD Slot (via Micro SD/Micro SIM Combo Slot)
ITE IT8528E
Fintek F81216AD
2 x USB 3.0 external stack ports
1 x USB 2.0 via CN1
1 x USB 2.0 via CN2
2 x USB 2.0 via CN3
1 x USB 2.0 internal for mini PCIe
Watchdog timeout can be programmable by software support 1~255 sec
-
1 x mini PCIe (shared with mSATA)
Intel HD Graphics Series
-
1 x HDMI
1 x 18/24-bit Dual Channel LVDS
-
Up to 4096 × 2160 for VGA
Up to 1920 x 1080 for LVDS
Up to 3840 × 2160 for HDMI
1 x VGA
Wide range DC 6~36V input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)

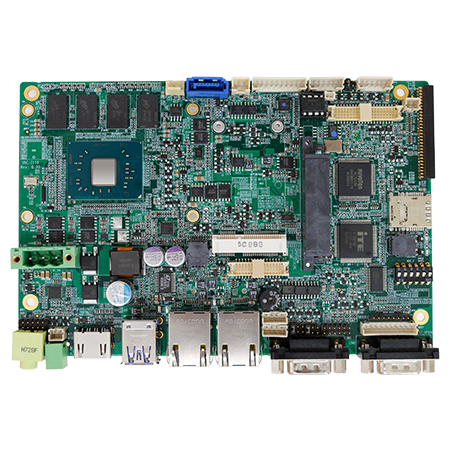

4" EPIC, Intel Pentium N4200 / Celeron N3350 SoC, onboard 4G/8G DDR3L, 18/24-bit dual channel LVDS, SBC-7118
TB-528 Series I/O Board for SBC-7118
