Intel Processor N97
-
-
1 x DDR5 SO-DIMM Non-ECC slot, supporting 8GB or 16GB capacity at 4800MT/s
TPM 2.0 onboard
1 x Line-out, 1 x Mic-in, 1 x Line-in
1 x DisplayPort 1.4 (up to 4K @60Hz, VDSC 1.1, HDCP 2.2, MST)
-
8x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
-
1 x HDMI 2.0b (up to 4K @60Hz, HDCP 2.2)
2 x 2500 BASE-T ethernet ports RJ-45
1 x Switch Connector
1 x Power LED
1 x SMBus Wafer Header
1 x I2C Interface (M.2 Connector)
1 x Power Button
2 x RS-232/422/485 (BIOS selectable)
4 x USB 2.0 Type-A
-
1 x M.2 B+M Key 2242 (SATA interface)
1 x Mini PCIe 3027/3051 for Wi-Fi module (PCIe/USB2.0/USB3.2 signal)
1 x M.2 B-Key 3042/3052 for 4G/5G module (PCIe/USB2.0 signal)
-
-
200 x 55 x 140 mm
IP20
Wall mount, DIN Rail
2.5 kg
CE, FCC Class A, UKCA, LVD, RoHS, UL 61010-2-201
-20~60°C (-4 ~ 140 °F)
95% RH @ 40 °C/104 °F
-40~85°C (-40 ~ 185 °F)
Win11 22’H2, Linux Ubuntu 20.04/22.04
N97/Intel® Processor/DDR5 8G/M.2 2242 SATA3 TLC 120GB/DC 9~36V/120W ADP/WiFi6e(TB)+BT5.3/WWAN 5G /2ANT/Wall Mount/WT1
Option I/O for either one
UART: 4 x RS-232/422/485 (BIOS selectable), GPIO: 8 x GPIO (4-IN/4-OUT, 3.3V / 5V hardware-selectable)
2 x USB 2.0 Type-A, 2 x PSE LAN ports (15 Watts per port)
-
Intel Celeron N3350 Processors
-
-
1 x DDR3L SO-DIMM slot, up to 8GB
-
-
1 x DP 1.2 port
-
-
Intel HD Graphics 500
-
2 x GbE RJ45 (Intel i210/211)
-
1 x power button with LED light
-
1 x USB 2.0 Type A
2 x USB 3.1 Gen.1 Type A
1 x USB Type-C ALT Mode
-
1 x mSATA (SATA3) slot
1 x Micro SD Card slot
1 x Full-size Mini-PCIe with Micro-SIM slot
and 1 x SMA connector for Wi-Fi/BT/LTE options via TB-591
2 x RS-232/422/485 DB9 (COM1/2) via TB-591
-
DC 9~36V (3 pin Terminal Block)
Aluminum Alloy heat sink and plastic bezel
140 x 120 x 42 mm
-
DIN rail and Wall Mount Kit
1.5 kg
CE/FCC
0~50 ̊C / -20~60 ̊C for option
10 to 90%@ 40 ̊C, non-condensing
-40~85 ̊C
Win10 IoT, Linux (kernel 4.20.2)
Fanless Palm-size System, Intel Celeron N3350 CPU, 1 x SO-DIMM DDR3L slot, up to 8GB, 1 x mSATA SSD slot, 1 x Micro SD slot, 1 x full size mini-PCIe slot, 1 x DP, 1 x Type-C, 9~36 VDC power input w/o power adaptor, Aluminum Heatsink and Plastic chassis. *With TB-591C2ME1 *With DIN Rail & Wall Mount kit
1 x full-size mini-PCIe, 1 x micro-SIM socket
Default : 2 x COM(DB9) *For customize I/O by ODM request
-
11th Gen. Intel Core i5/i3 Processor
-
SoC
2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM 2.0
1 x Line-out
1 x DP/HDMI
-
-
-
-
1 x 1GbE, 1 x 2.5GbE LAN RJ-45
-
-
1 x DB-9 connector, including:
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1)
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
4 x USB 3.0 Type A
-
1 x M.2 M-Key 2280 (Support PCIe/SATA3)
-
1 x Mini-PCIe slot (full size)
1 x M.2 E-key for Wi-Fi/Bluetooth Module
1 x Nano SIM slot
Aluminum Chassis
252.7 x 158.7 x 36 mm (without wall mount bracket)
-
Mounting Panel Mount, VESA 100x100
TBD
CE/FCC Class A
-20~60˚C
10 to 90%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT, Windows 11
Intel 11th Gen. Core i3-1115G4E/i5- 1145G7E, 2 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, 9~36VDC input with adapter, Aluminum chassis.
-
AMI
Intel Celeron J6412 4-core 2.0GHz,10W
Intel Atom x6413E 4-core 1.5GHz, 9W
-
SoC
1 x 260-pin SO-DIMM up to 32GB DDR4
TPM2.0
1 x Line-out
1 x DP 1.4 include DP++, up to 4096 x 2160 @60Hz
-
-
-
1 x HDMI 2.0b, up to 3840 x 2160 @60Hz
1 x GbE LAN, RJ-45 (i210AT)
1 x 2.5GbE LAN, RJ-45 (i225LM)
4 x SMA-female connectors’ holes for external antennas
1 x 3-pin DC Power Input, Terminal Block
1 x Power LED
1 x RS-232/422/485, DB-9 (default RS-232)
2 x USB 3.2 Gen1 type A
-
1 x M.2 M-Key 2242/2280 for SSD (SATA3)
1 x MO-297 SATA (for option)
-
1 x Full-size Mini-PCIe cards with 1 x SIM slot
1 x M.2 E-Key 2230 for WiFi/Bluetooth Module
Plating Titanium Gray Aluminum Heat Sink and Black Steel Chassis
207 x 130 x 41 mm (for Wall Mount)
180 x 130 x 40 mm (for DIN Rail)
-
Wall Mount (default)
DIN Rail (for option)
1.5 kg
CE/FCC Class A, RoHs
-20~60˚C / -30~70˚C (for option)
10 to 90%@ 40˚C, non-condensing
-40~85˚C
Windows 10 IoT / Windows 11 IoT / Linux Kernel 4.15 (Ubuntu 18.04.)
Fanless Box PC, Intel Celeron J6412/x6413E CPU, 1 x SO-DIMM DDR4 slot up to 32GB, 1 x M.2 M-Key for 2242/2280 SATA SSD, 1 x DP, 1 x HDMI, 1 x Mini-PCIe slot Full size for 4G LTE, 1 x M.2 E-Key for WIFI/BT, 9~36V DC power input with adaptor, Steel Chassis with Aluminum Heatsink
-
AMI
Intel Celeron J6412 4-core 2.0GHz, 10W
Intel Atom x6413E 4-core 1.5GHz, 9W
-
SoC
1 x 260-pin SO-DIMM up to 32GB DDR4
TPM2.0
1 x Line-out
1 x DP 1.4 include DP++, up to 4096 x 2160 @60Hz
-
-
-
1 x HDMI 2.0b, up to 3840 x 2160 @60Hz
1 x GbE LAN, RJ-45 (i210AT)
1 x 2.5GbE LAN, RJ-45 (i225LM)
4 x SMA-female connectors’ holes for external antennas
1 x 3-pin DC Power Input, Terminal Block
1 x Power Button
1 x RS-232/422/485, DB-9 (default RS-232)

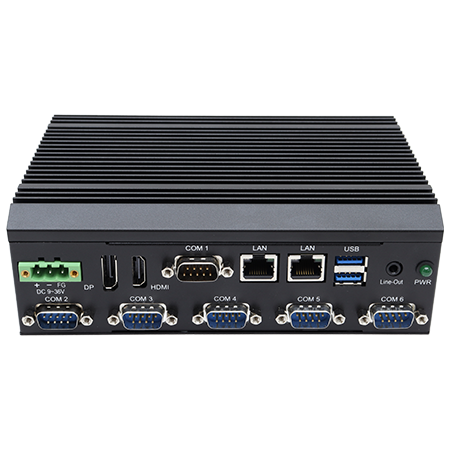

5 x RS-232
2 x USB 3.2 Gen1 type A
4 x USB 2.0
-
1 x M.2 M-Key 2242/2280 for SSD (SATA 3) (default)
1 x MO-297 SATA (option)
-
1 x Full-size Mini-PCIe cards with 1 x SIM slot
1 x M.2 E-Key 2230 for WiFi/Bluetooth Module
Aluminum Heatsink and Steel Chassis
207 x 130 x 59.5 mm (for Wall Mount)
180 x 130 x 58.5 mm (for DIN Rail)
-
Wall Mount (default)
DIN Rail (for option)
2 kg
Meet CE/FCC Class A
-20~60˚C / -30~70˚C (for option)
10 to 90%@ 40˚C, non-condensing
-40~85˚C
Windows 10 IoT, Windows 11 IoT, Ubuntu 18.04
Fanless Box PC, Intel Celeron J6412/x6413E CPU, 1 x SO-DIMM DDR4 slot up to 32GB, 1 x M.2 M-Key for 2242/2280 SATA SSD, 1 x DP, 1 x HDMI, 1 x M.2 E-Key for WIFI/BT, 9~36V DC power input with adaptor, Steel Chassis with Aluminum Heatsink
-
-
Intel Celeron N2930 Processors
MAX: 17.8W
SoC
1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz
-
1 x Line Out
-
-
-
1 x VGA, 1 x HDMI
-
2 x GbE LAN RJ-45
-
1 x 3-pin DC power input terminal, 1 x power button with LED light
1 x RS-232/422/485 DB-9, COM1, default RS-232
2 x RS-232 DB-9, COM2 and COM3
2 x USB 3.0 type A,
4 x USB 2.0 type A
-
1 x Mini-PCIe slot full size,
1 x Mini-PCIe slot full size (shared with mSATA)
-
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
207 x 130 x 35.5
IP30
Wall Mount
1.0 Kg
CE / FCC Class A
0~50 °C / -20~60°C (option)
10 to 90% @ 40°C, non- condensing
-30~70 °C
Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT ENT 2016 LTSB Entry, Windows 10 IoT 2019, Windows 10 IoT 2021
Fanless Box PC, Intel Celeron N2930 CPU, 2GB DDR3L memory, 16GB MLC SSD, 1 x Mini-PCIe slot Full size, 1 x Mini-PCIe slot Full size (shared with mSATA), DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heatsink
-
-
Intel Celeron N2930 Processors
MAX: 17W
SoC
1 x 204-pin SO-DIMM slot up to 8GB DDR3L 1333MHz
-
1 x Line Out
-
-
-
-
1 x HDMI
2 x GbE LAN RJ-45
-
1 x 3-pin DC power input terminal, 1 x power button with LED light
1 x RS-232/422/485 DB-9, COM1, default RS-232
2 x RS-232 DB-9, COM2
2 x USB 3.0 type A,
4 x USB 2.0 type A
1 x VGA
1 x 2.5" SATA2 HDD space (easy accessible)
1 x Mini-PCIe slot full size
1 x Mini-PCIe slot full size (shared with mSATA)
-
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
180 x 130 x 55
IP30
Wall Mount / Din Rail (option)
1.3 Kg
CE / FCC Class A
0~50 °C / -20~60°C (option)
10 to 90% @ 40°C, non- condensing
-30~70 °C
Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT ENT 2016 LTSB Entry, Windows 10 IoT 2019, Windows 10 IoT 2021
Fanless Box PC, Intel Celeron N2930 CPU, 4GB DDR3L memory, 32GB MLC SSD, 1 x Mini-PCIe slot Full size, 1 x Mini-PCIe slot Full size (shared with mSATA), DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heatsink
Option I/O for either one:
1 x RS-232 DB-9, COM3
1 x GPIO 8-bit digital I/O (4 x DI, 4 x DO)
-
Intel Celeron N2930 Processors
MAX: 21.6W
SoC
2 x 204-pin DDR3L SO-DIMM slot up to 8GB
-
1 x Mic-in, 1 x Line-out
-
-
1 x 8-bit GPIO (4 x DI, 4 x DO) Digital I/O, 1-5V, 1-GND
-
1 x HDMI
2 x GbE LAN RJ-45
-
1 x 3-pin terminal block for DC power input,
1 x 2-pin power switch,
1 x on/off power button
1 x RS-232/422/485 DB-9, COM1, default RS-232
1 x RS-232 DB-9, COM2
1 x RS-422/485 DB-9, COM3, default RS-422
1 x RS-232/422/485 DB-9, COM4, default RS-232
4 x USB 3.0 type A
4 x USB 2.0 type A
1 x VGA
1 x 2.5" SATA2 HDD bay for SATA2 HDD (Easy Accessible)
1 x Mini-PCIe slot full size
1 x Mini-PCIe slot full size (shared with mSATA)
-
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
230 x 195 x 125.7
IP20
Wall Mount
4.3 Kg
CE / FCC Class A
0~50 °C / -20~60°C (option)
10 to 90% @ 40°C, non- condensing
-30~70
Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021
Fanless Box PC, Intel Celeron N2930 CPU, 4GB DDR3L memory, 32GB MLC SSD, 1 x mini-PCIe slot full size, 2 x PCIe x1 slots, DC 9~36V power input with adaptor, Steel chassis with Aluminum heatsink
-
-
Intel 6th Gen. Core i3/i5/i7 Processors
MAX: 24W
SoC
1 x 260-pin DDR4 SO-DIMM up to 16GB 2133MHz FSB
-
1 x Line-out
-
-
-
-
1 x HDMI
2 x GbE LAN RJ-45
-
1 x 3-pin DC power input terminal,
1 x power button
1 x RS-232/422/485 DB-9, Default RS-232, COM1
1 x RS-232 DB-9, COM2
2 x USB 3.0 type A,
4 x USB 2.0 type A
1 x VGA
1 x 2.5" SATA3 HDD bay (easy accessible)
1 x Mini-PCIe Slot Full Size
-
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
247 x 149 x 68
IP30
Wall Mount
2.5 Kg
CE / FCC Class A
0~50 °C / -20~60°C (option)
10 to 90% @ 40°C, non- condensing
-30~70˚C
Windows 7 Pro for Embedded, Windows Embedded Standard 7, Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021
-
Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors
MAX: 56.3W
Intel H170 Chipset
2 x 260-pin SO-DIMM slot up to 32GB DDR4 1866/2133 MHz
-
1 x Line-in, 1 x Line-out, 1 x Mic
1 x DP
1 x DVI-I
1 x GPIO 8-bit digital I/O(4 x DI, 4 x DO)
-
1 x HDMI
4 x GbE LAN RJ-45
-
1 x 3-pin DC power input terminal, 1 x power button with light
2 x RS-232/422/485 DB-9, COM1/COM2, default RS-232
2 x RS-232 DB-9, COM3/COM4
4 x USB 3.0 type A,
2 x USB 2.0 type A
-
2 x 2.5” SATA3 HDD bay (easy accessible), support RAID 0.1
-
3 x Mini-PCIe slot full size (one shared with mSATA)
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
277.8 x 230 x 86.7
IP20
Wall Mount / Din Rail (option)
4.5 Kg
CE / FCC Class A
0~50 °C / -20~60°C (option)
10 to 90% @ 40°C, non- condensing
-40~85 °C
Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021
Fanless Box PC, Intel 6th/7th Core i CPU, 2 x SO-DIMM, DDR4 slots, 2 x 2.5” HDD space, 3 x mini-PCIe slots, DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heat sink
-
-
Intel 6th Gen. Core i3/i5/i7 Processors
Intel 7th Gen. Core i3/i5/i7 Processors
MAX: 60.4W
Intel H170 Chipset
2 x 260-pin SO-DIMM slot up to 32GB DDR4 1866/2133 MHz
-
1 x Line-in, 1 x Line-out, 1 x Mic
1 x DP
1 x DVI-I
1 x GPIO 8-bit digital I/O(4 x DI, 4 x DO)
-
1 x HDMI
4 x GbE LAN RJ-45
-
1 x 3-pin DC power input terminal, 1 x power button with light
2 x RS-232/422/485 DB-9, COM1/COM2, default RS-232
2 x RS-232 DB-9, COM3/COM4
4 x USB 3.0 type A,
2 x USB 2.0 type A
-
2 x 2.5” SATA3 HDD bay (easy accessible), support RAID 0.1
2 x PCIe x1 slots default
1 x PCIe x4 slot option
3 x Mini PCIe slot full size (one shared with mSATA)
Plating Titanium Gray Aluminum Heatsink and Black Steel Chassis
280 x 230 x 134.6
IP20
Wall Mount
5.5 Kg
CE / FCC Class A
0~50 °C / -20~60°C (option)
10 to 90% @ 40°C, non- condensing
-40~85 °C
Windows Embedded 8.1 Industry Pro, Windows Embedded 8 Standard, Windows 10 IoT 2016, Windows 10 IoT 2019, Windows 10 IoT 2021
Fanless Box PC, Intel 6th/7th Core i CPU, 2 x SO-DIMM, DDR4 slots, 2 x 2.5” HDD space, 3 x mini-PCIe slots, 2 x PCIe x1 slot, DC 9~36V power input with adaptor, Steel Chassis with Aluminum Heat sink
-
