LCD

LCD Size
Touch Type
Luminance(cd/m²)

System

CPU
Power Consumption
System Chipset
System Memory
TPM

I/O Port

LAN
Power
Serial / Parallel
USB

Storage Space

HDD/SSD

Expansion

Expansion Module
Expansion slot

Display

Backlight lifetime(hrs)
Contrast
LCD Size
Luminance(cd/m²)
Max. color
Max. resolution
Viewangle(H°/V°)

Touch Screen(Option)

Interface
Light transmission(%)
Touch Type

Power

Power input

Mechanical

Construction
Dimension(mm)
IP rating
Mounting
Net weight(Kgs)

Environment

Certification
Operating temperature(°C)
Storage humidity
Storage temperature(°C)

Operating System

Operating System

Ordering Information

Option
Data Sheet

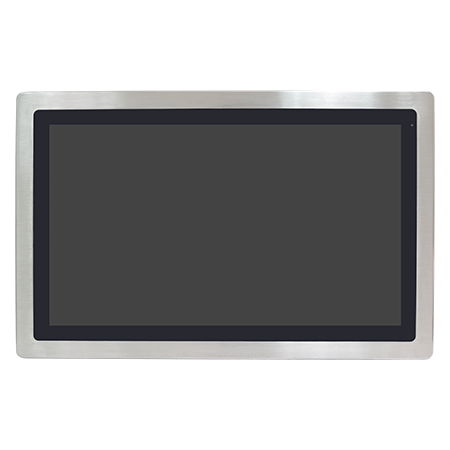

ViTAM-821BP/R/H

21.5" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 250
High Brightness: 1000
Intel Celeron J6412 (2.0 GHz) Processor
ViTAM-821BP: 39.34W (MAX)
SoC
1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
TPM 2.0
1 x M12 8-pin for LAN with waterproof cover
1 x M12 3-pin for DC power with waterproof cover
1 x Power switch on the rear
1 x Touch on/off button at the side
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover
1 x M12 8-pin for USB 2.0 with waterproof cover
1 x 2.5" SATA3 HDD
1 x M.2 B-Key(SATA 3), Support 2242 at default
RFID Module Design on the Front Side (for option)
1 x Mini-PCIe slot for 4G/5G module
1 x M.2 E-Key 2230 for WiFi/BT module
1 x Nano SIM slot
50,000
1000:1
21.5" TFT-LCD
Standard: 250
High Brightness: 1000
16.7M
1920 x 1080
178 / 178
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
DC 9~36V
304 Stainless steel chassis(default)
316 Stainless steel chassis(optional)
571 x 362 x 55 mm
Total IP66/IP69K
VESA mount 100 x 100, Yoke mount for optional
10.05 kg
CE/FCC Class A
0~50°C
10 to 95% @ 40°C, non-condensing
-30~70°C
Windows 10, Windows 11
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
● 2 x USB 2.0 ● 1 x USB 3.0 ● 1 x LAN ● 1 x COM
Data Sheet
Driver
User Manual
