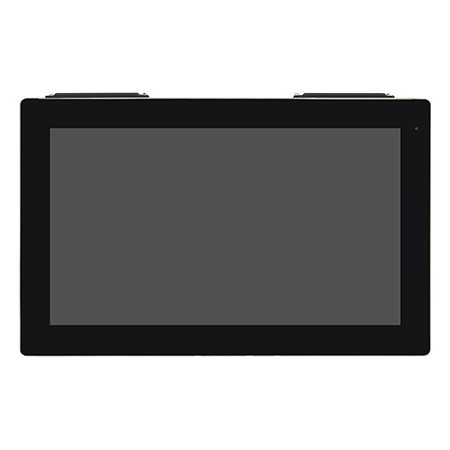

15.6" TFT-LCD
Projected Capacitive Touch
916CP: 400 / 450
916CPH: 1000
Onboard Intel 11th Gen. Core i3/i5 Processor
PhanTAM-916CP: 32W
SoC
2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM 2.0
1 x M12 8-pin for LAN with waterproof cover
1 x M12 3-pin for DC power with waterproof cover
1 x Power switch on the rear
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover
1 x M12 8-pin for 2 x USB 2.0 with waterproof cover
1 x M-Key 2280 (PCIe x4) for SSD
RFID module design on the front side (for option)
1 x Full size mPCIe/mSATA (mPCIe as default, select by BIOS)
1 x NANO-SIM
1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
50,000
916CP: 500:1 / 800:1
916CPH: 800:1
15.6" TFT-LCD
916CP: 400 / 450
916CPH: 1000
16.7M / 16.2M
1366 x 768 / 1920 x 1080
916CP: 170 /160 ; 170 / 170
916CPH: 160 /160 ; 170 / 170
USB
90%
Projected Capacitive Touch
304 Stainless Steel Chassis (default)
316 Stainless Steel Chassis (optional)
404.4 x 225.4 x 64.9 mm
Total IP66/IP69K
VESA Mount 100 x 100, Floor Stand / Swing ARM (optional)
5.1 kg
CE/FCC Class A
0~50°C
10 to 90% @ 40°C, non-condensing
-30~70°C
Windows 10 IoT ENT LTSB, Windows 11
PhanTAM916CP: 15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
PhanTAM916CPH: 15.6" WXGA IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
●2 x USB 2.0 ●1 x USB 3.2 Gen.1 ●1 x HDMI ●1 x LAN ●1 x COM ●1 x CAN
21.5" TFT-LCD
Projected Capacitive Touch
921CP: 250
921CPH: 1000
Onboard Intel 11th Gen. Core i3/i5 Processor
PhanTAM-921CP: 36W
SoC
2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
TPM 2.0
1 x M12 8-pin for LAN with waterproof cover
1 x M12 3-pin for DC power with waterproof cover
1 x Power switch on the rear
1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover
1 x M12 8-pin for 2 x USB 2.0 with waterproof cover
1 x M-Key 2280 (PCIe x4) for SSD
RFID module design on the front side (for option)
1 x Full size mPCIe/mSATA (mPCIe as default, select by BIOS)
1 x NANO-SIM
1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
50,000
921CP: 1000:1
921CPH: 3000:1
21.5" TFT-LCD
921CP: 250
921CPH: 1000
16.7M
1920 x 1080
178 / 178
USB
90%
Projected Capacitive Touch
304 Stainless Steel Chassis (default)
316 Stainless Steel Chassis (optional)
540.4 x 332.4 x 61.9 mm
Total IP66/IP69K
VESA Mount 100 x 100, Floor Stand / Swing ARM (optional)
7.9 kg
CE/FCC Class A
0~50°C
10 to 90% @ 40°C, non-condensing
-30~70°C
Windows 10 IoT ENT LTSB, Windows 11
PhanTAM921CP: 21.5" FHD IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
PhanTAM921CPH: 21.5" FHD IP66/IP69K stainless steel panel pc, Intel 11th Gen. Core i Processor, 2 x SO-DIMM DDR4 slots, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter, 1000 nits
2 x optional blank M12 connector with waterproof cover for selecting two from the following options:
●2 x USB 2.0 ●1 x USB 3.2 Gen.1 ●1 x HDMI ●1 x LAN ●1 x COM ●1 x CAN
