15" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
TBD
SoC
1 x DDR5-5600MHz SO-DIMM, up to 48GB
Onboard TPM2.0
1 x M12 8-pin for 2.5GbE LAN with Waterproof cap and chain
Wake on LAN: Support WOL
1 x Touch on/off button at the side
1 x M12 3-pin for Power Input
1 x M12 8-pin for COM, RS-232/422/485 (Default RS-232) with Waterproof cap and chain
1 x M12 8-pin for 2 x USB 2.0 with Waterproof cap and chain
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCIe x 4) as standard
1 x 2.5" SATA3 SSD as optional
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT Module
1 x M.2 2242/3402/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G Module
1 x SIM slot
50,000
1000:1
15" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.7M
High Brightness: 16.2M
1024 x 768
Standard: 178 / 178
High Brightness: 176 / 176
USB
90%
Projected Capacitive Touch
SUS304 Stainless Steel Chassis (default)
SUS316 Stainless Steel Chassis (optional)
359.2 x 283.2 x 49 mm
Total IP66/IP69K
VESA Mount 100 x 100, Yoke Mount for optional
6.3 kg
CE/FCC Class A
Standard: -20~60°C
High Brightness: 0~50°C
10 to 95% @ 40°C, non-condensing
-30~70°C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later Linux 24.04 or later

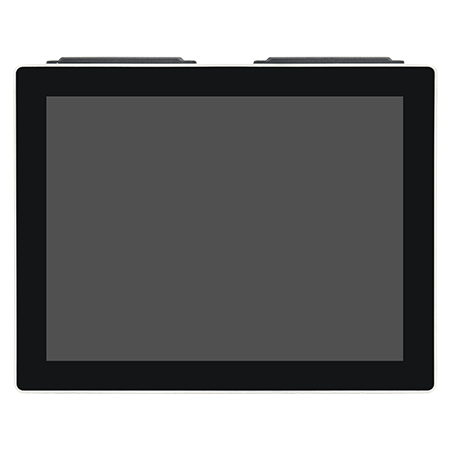

NuTAM-915EP(H):
15" XGA (High Brightness) IP66/69K stainless steel panel pc, Intel Core Ultra 5/7, 1 x SO-DIMM DDR5 slot, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
2 x M12 Blank for Option (Select one from each type) :
●2 x USB2.0 ●1 x USB3.2 Gen1 ●1 x 2.5GbE LAN ●1 x COM Port ●1 x HDMI
17" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
TBD
SoC
1 x DDR5-5600MHz SO-DIMM, up to 48GB
Onboard TPM2.0
1 x M12 8-pin for 2.5GbE LAN with Waterproof cap and chain
Wake on LAN: Support WOL
1 x Touch on/off button at the side
1 x M12 3-pin for Power Input
1 x M12 8-pin for COM, RS-232/422/485 (Default RS-232) with Waterproof cap and chain
1 x M12 8-pin for 2 x USB 2.0 with Waterproof cap and chain
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCIe x 4) as standard
1 x 2.5" SATA3 SSD as optional
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT Module
1 x M.2 2242/3402/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G Module
1 x SIM slot
Standard: 30,000
High Brightness: 50,000
1000:1
17" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
1280 x 1024
Standard: 170 / 160
High Brightness: 160 / 140
USB
90%
Projected Capacitive Touch
SUS304 Stainless Steel Chassis (default)
SUS316 Stainless Steel Chassis (optional)
396.82 x 326.47 x 49 mm
Total IP66/IP69K
VESA Mount 100 x 100, Yoke Mount for optional
7.81 kg
CE/FCC Class A
Standard: -20~60°C
High Brightness: 0~50°C
10 to 95% @ 40°C, non-condensing
-30~70°C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later Linux 24.04 or later

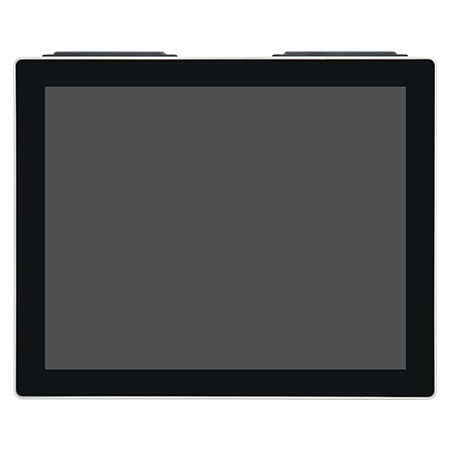

NuTAM-917EP(H)
17" SXGA (High Brightness) IP66/69K stainless steel panel pc, Intel Core Ultra 5/7, 1 x SO-DIMM DDR5 slot, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
2 x M12 Blank for Option (Select one from each type) :
●2 x USB2.0 ●1 x USB3.2 Gen1 ●1 x 2.5GbE LAN ●1 x COM Port ●1 x HDMI
21.5" TFT-LCD
Projected Capacitive Touch
Standard: 250
High Brightness: 1000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
TBD
SoC
1 x DDR5-5600MHz SO-DIMM, up to 48GB
Onboard TPM2.0
1 x M12 8-pin for 2.5GbE LAN with Waterproof cap and chain
Wake on LAN: Support WOL
1 x Touch on/off button at the side
1 x M12 3-pin for Power Input
1 x M12 8-pin for COM, RS-232/422/485 (Default RS-232) with Waterproof cap and chain
1 x M12 8-pin for 2 x USB 2.0 with Waterproof cap and chain
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCIe x 4) as standard
1 x 2.5" SATA3 SSD as optional
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT Module
1 x M.2 2242/3402/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G Module
1 x SIM slot
50,000
1000:1
21.5" TFT-LCD
Standard: 250
High Brightness: 1000
16.7M
1920 x 1080
Standard: 178 / 178
High Brightness: 170 / 170
USB
90%
Projected Capacitive Touch
SUS304 Stainless Steel Chassis (default)
SUS316 Stainless Steel Chassis (optional)
529.3 x 321 x 49 mm
Total IP66/IP69K
VESA Mount 100 x 100, Yoke Mount for optional
9.51 kg
CE/FCC Class A
0~50°C
10 to 95% @ 40°C, non-condensing
-30~70°C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later Linux 24.04 or later
NuTAM-921EP(H):
21.5" FHD (High Brightness) IP66/69K stainless steel panel pc, Intel Core Ultra 5/7, 1 x SO-DIMM DDR5 slot, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
2 x M12 Blank for Option (Select one from each type) :
●2 x USB2.0 ●1 x USB3.2 Gen1 ●1 x 2.5GbE LAN ●1 x COM Port ●1 x HDMI
