15.6" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
TBD
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x M12 8-pin for 2.5GbE LAN with Waterproof cap and chain
Wake on LAN: Support WOL
1 x Touch on/off button at the side
1 x M12 3-pin for Power Input
1 x M12 8-pin for COM, RS-232/422/485 (Default RS-232) with Waterproof cap and chain
1 x M12 8-pin for 2 x USB 2.0 with Waterproof cap and chain
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x 2.5" SATA3 SSD as optional
1 x M.2 2230 E-Key (USB 2.0, PCIe x1) for optional Wi-Fi/BT Module
1 x M.2 2242/3402/3052 B-Key (PCIe x1, USB 3.2 Gen1, USB 2.0) for optional LTE/5G Module
Standard: 30,000
High Brightness: 50,000
800:1
15.6" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.2M
High Brightness: 16.7M
1920 x 1080
Standard: 170 / 170
High Brightness: 178 / 178
USB
90%
Projected Capacitive Touch
SUS304 Stainless Steel Chassis (default)
SUS316 Stainless Steel Chassis (optional)
396.8 x 246.2 x 49 mm
Total IP66/IP69K
VESA Mount 100 x 100, Yoke Mount for optional
6.06 kg
CE/FCC Class A
Standard: -20~60˚C (ambient w/ air flow and WT RAM/SSD)
High Brightness: 0~50˚C (ambient w/ air flow)
10 to 95% @ 40°C, non-condensing
-30~70°C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later
Linux 24.04 or later
NuTAM-816CP(H):

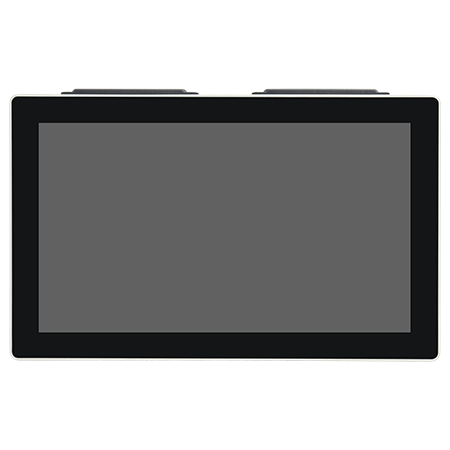

15.6" FHD (High Brightness) fanless IP66/IP69K stainless steel panel pc, Intel Alder Lake-N CPU, 1 x SO-DIMM DDR5 slot, 128GB TLC SSD, projected capacitive touch, 9~36V DC power input with Adapter
2 x M12 Blank for Option (Select one from each type) :
●2 x USB 2.0 ●1 x USB 3.2 Gen1 ●1 x 2.5GbE LAN ●1 x COM Port ●1 x HDMI
