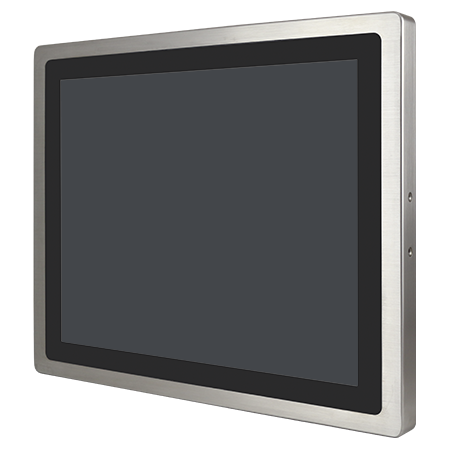

APC-3994P/R

LCD

LCD Size

Touch Type

Luminance(cd/m²)

System

CPU

Power Consumption

System Chipset

System Memory

I/O Port

LAN

Power

Serial / Parallel

USB

Storage Space

HDD/SSD

Expansion

Expansion slot

Display

Backlight lifetime(hrs)

Contrast

LCD Size

Luminance(cd/m²)

Max. color

Max. resolution

Viewangle(H°/V°)

Touch Screen(Option)

Interface

Light transmission(%)

Touch Type

Power

Power input

Mechanical

Construction

Dimension(mm)

IP rating

Mounting

Net weight(Kgs)

Enviroment

Certification

Operating temperature(°C)

Storage humidity

Storage temperature(°C)

Operating System

Ordering Information

Barebone

Download

Data Sheet

19" TFT-LCD

P: Projected Capacitive/ R: Resistive

350

Intel Celeron Processors N2930

APC-3994P: 26W
APC-3994R: 25W

SoC

Onboard DDR3L 4GB 1333/1600MHz

1 x M12 8-pin for GbE LAN

1 x M12 3-pin DC Power

1 x M12 8-pin for RS-232/422/485, COM1, Default RS-232, 1 x M12 8-pin for RS-232, COM2

1 x M12 8-pin for 1 x USB 3.0

1 x 2.5” SATA HDD or SSD, Easily Accessible, 1 x Internal SD Card Slot Onboard

1 x Mini PCIe full size, For optional WLAN/BT Module and Antenna at rear side

50,000

1000:1

19" TFT-LCD

350

16.7M

1280 x 1024

170 / 160

USB

APC-3994P: 90%
APC-3994R: 80%

P: Projected Capacitive/ R: Resistive

DC 9~36V

Stainless Steel Chassis

470 x 388.6 x 60.8 mm

Full IP66/IP69K

Panel Mount, VESA Mount 100 x 100

7.6 Kg

CE/FCC class A

0~50°C

10 to 95% @ 40°C, non- condensing

-30~70°C

Windows 7 Professional for Embedded Systems, Windows 7 Ultimate for Embedded Systems, Windows Embedded 8.1 Pro, Windows Embedded 8.1 Industry pro, Windows 10 IoT ENT LTSB

APC-3994P(R):
19" SXGA IP66/IP69K full flat bezel design stainless steel panel PC, Intel® Celeron® Processor N2930, DDR3L 4G on board, 2.5" SATA II 320GB Industrial HDD, with projective capacitive touch (resistive touch window), 9~36V DC power input with Adaptor, stainless steel enclosure
