LCD

LCD Size
Touch Type
Luminance(cd/m²)

System

CPU
Power Consumption
System Chipset
System Memory
TPM

I/O Port

Audio
DP
LAN
OSD Control Membrane
Power
Serial / Parallel
USB

Storage Space

HDD/SSD

Expansion

On board expansion bus

Display

Backlight lifetime(hrs)
Contrast
LCD Size
Luminance(cd/m²)
Max. color
Max. resolution
Viewangle(H°/V°)

Touch Screen(Option)

Interface
Light transmission(%)
Touch Type

Power

Power input

Mechanical

Construction
Dimension(mm)
IP rating
Mounting
Net weight(Kgs)

Enviroment

Certification
Operating temperature(°C)
Storage humidity
Storage temperature(°C)

Operating System

Operating System
Data Sheet

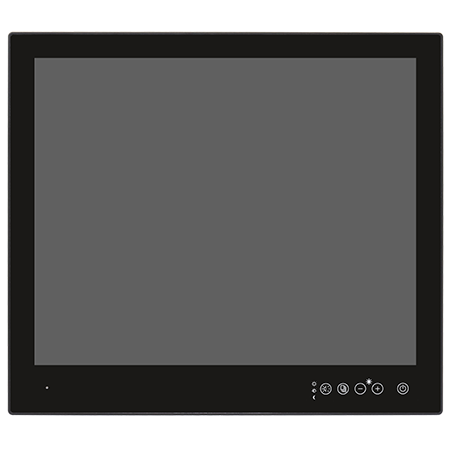

ViKING-919BP

19" TFT-LCD
Projected Capacitive Touch
350
8th Gen. Core i3-8145UE (2C/4T,2.2GHz,15W TDP)
8th Gen. Core i5-8365UE (4C/8T,1.6GHz,15W TDP)
ViKING-919BPH: 52.85W (Max)
SoC
1 x 260pin SO-DIMM, up to 32G DDR4 2400MHz
TPM 2.0
1 x Line-out, Phone Jack
1 x Display Port
2 x GbE RJ-45
Keypad Capacitive Touch with LED
‧Power
‧Brightness+
‧Brightness-
‧Brightness Mode Swap (DAY, DUSK, NIGHT)
1 x Buzzer
1 x 2-pin Terminal Block Connector (for remote power switch)
1 x 3-pin Terminal Block Connector
1 x ESD Ground
1 x RS-232 (COM1, 5-pin terminal block)
1 x RS-232/422/485 Selectable Default RS-485 (COM 2, 5-pin terminal block)
4 x USB 3.0 type A
1 x M.2 M-Key 2242(option 2280 can’t use TB-528 at same time)
1 x 2.5" HDD space (option)
1 x TB-528 Expansion Connector (for 19”/24” only) option TB-528C2I for Isolation 2 x RS-422/485 Isolation
50,000
1000:1
19" TFT-LCD
350
16.7M
1280 x 1024
170 / 160
USB
Projected Capacitive Touch: Over 90%
Projected Capacitive Touch
DC 24V with Isolated / AC Power option
Black/ Aluminum Bezel and Aluminum Housing (Anti-Corrosion Coating)
439 x 396 x 76.3 mm
Front Panel IP66
Panel Mount/ VESA Mount
Front Access Mount / Mounting Bracket (option)
6.5 kg
CE/FCC/IEC 60945
0~50°C (WT1: -20~60°C for optional)
10 to 90% @ 40°C, non-condensing
-30~70°C
Windows 10, Windows 11
