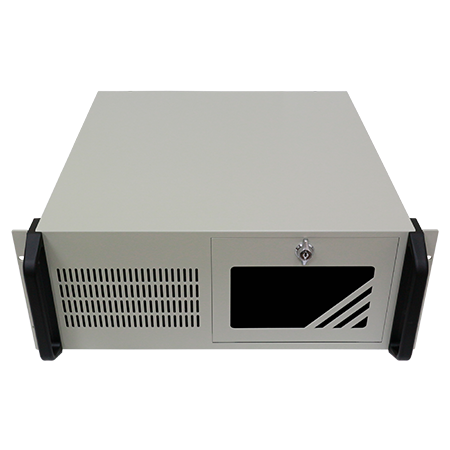

AVS - 7 Series | Machine Vision System | Intel 8th/9th Gen. Core-i and Xeon Platform Vertical Application System

Filter

More Models

System

CPU

System Chipset

System Memory

I/O Port

Ethernet

Power

Serial / Parallel

USB

VGA

Storage Space

HDD/SSD

Expansion

Expansion slot

Power

Power input

Mechanical

Construction

Dimension(mm)

Mounting

Net weight(Kgs)

Environment

Certification

Operating temperature(°C)

Storage humidity

Storage temperature(°C)

Operating System

Accessory

Download

Data Sheet

AVS-700

Intel 8th Gen. Core / 9th Gen. Core i7/i5/i3
Xeon Processors, LGA 1151 Socket

C246

4 x 288-pin ECC DIMM memory sockets, Dual Channel DDR4 (2400/2666 MHz), up to 128 GB support (Core i5/i7 only
support non-ECC)
Default: 8G DDR4 2666 U-DIMM

2 x DP++

1 x Ethernet with Intel I211AT PCIe (10/100/1000Mbps)
1 x Ethernet with Intel I219LM PCIe with iAMT12.0
(10/100/1000Mbps) (only Xeon/Core i7/i5 supports iAMT)

1 x Power Switch

1 x RS-232/422/485 (RS-232 w/ power) (DB-9)

4 x USB 3.1 Gen1
2 x USB 2.0
2 x USB 2.0 (front panel)

1 x VGA

4 x SATA3 channels (RAID 0/1/5/10)
1 x Mini PCIe (PCIe/mSATA, share w/SATA conn. as opt./USB2.0)
1 x M.2 2242/2280 M key (PCIe x4 NVMe, Intel Optane Memory Support)
Default: 1 x M.2 256G TLC 2280 with Win10/ 1 x 2TB 3.5” HDD

1 x PCIe x16 (Gen 3) (x8/x8 signals as opt., MOQ required)
3 x PCIe x4 (Gen 3)
2 x PCI

500W PSU (100V~220V AC-IN)

SECC

173.6 x 429 x 451.2 mm

Rack Mount (Default)

TBD

CE,FCC, RoHS

0˚C~45˚C

0 to 90%@, non-condensing

-20˚C~60˚C

Default: Win10 IoT 64-bit Traditional Chinese, Linux

Cooler:
95W CPU COOLER LGA115X, AL 6063-T5 +COPPER CORE
94*94*68W/FAN(TWO balls)W/BRACKET; ECC-00682-X5-GP
