Button-Integrated ABOS-9D Series --- 12th Gen. Core | Industrial Panel PC | Intel 13th/12th Raptor Lake/Alder Lake i3/i5/i7 Processor Button-integrated Panel PC

Filter

More Models

LCD

LCD Size

Touch Type

Luminance(cd/m²)

System

BIOS

CPU

Power Consumption

System Memory

TPM

I/O Port

Buttons

HDMI

LAN

Power

Serial / Parallel

USB

Storage Space

HDD/SSD

Display

Backlight lifetime(hrs)

Contrast

LCD Size

Luminance(cd/m²)

Max. color

Max. resolution

Viewangle(H°/V°)

Touch Screen(Option)

Interface

Light transmission(%)

Touch Type

Power

Power input

Mechanical

Construction

Dimension(mm)

IP rating

Mounting

Net weight(Kgs)

Environment

Certification

Operating temperature(°C)

Storage humidity

Storage temperature(°C)

Operating System

Accessory

Ordering Information

Barebone

Download

Data Sheet

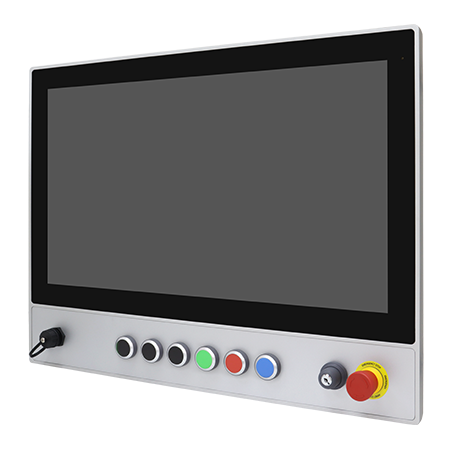

ABOS-921DP

21.5" TFT-LCD

Projected Capacitive Touch

250

AMI

Intel 13th Gen. Core i3/i5
Intel 12th Gen. Core i3/i5

MAX: 90W

1 x DDR5-4800MHz SO-DIMM (Non-ECC) socket, up to 48GB

TPM 2.0

1 x Emergency Button (default)
Default: 1 x BLUE (reset) / 1 x RED (stop) / 1 x GREEN (start)
Optional: 3 x BLACK (self-defined) / 1 x Key Switch

1 x HDMI, 4096x2304@60Hz

1 x Intel I219LM, GbE LAN, RJ-45
1 x Intel I210AT, GbE LAN, RJ-45

1 x 3-pin DC Power Input, Terminal Block / 1 x Power Button with Light

1 x RS-232(default)/422/485 select via BIOS, pin9 RI(default)/5V/12V select via jumper, DB9(COM1)

Internal I/O:
2 x USB 3.2 Gen. 1 Type-A, 2 x USB 2.0 Type-A
2 x USB 2.0 via USB Type-A

Front I/O: 1 x USB 2.0 Type-A
Rear I/O: 1 x USB 2.0 Type-A

1 x M.2 M-Key 2280 for SSD (PCIe 3.0 x4)
1 x 2.5" HDD Bay

30,000 hrs

1000:1

21.5" TFT-LCD

250

16.7M

1920 x 1080

178 / 178

USB

over 90%

Projected Capacitive Touch

DC 9~36V

Aluminum

545.8 x 418 x 135 mm

IP65 via Using CP40 to Install Other Mounting Devices

Swing Arm Mount (Default)/ Stand *support Rittal CP-40

19 kg

CE/FCC/UKCA

0~50°C

10 to 90% @ 40°C, non-condensing

-30~70°C

Windows 10 IoT LTSC
Windows 11 IoT
Ubuntu 22.04 (Linux Kernel 5.15)

Optional: Left-Right Handle, Keyboard Holder

21.5" FHD IP65 Aluminum panel pc, Intel 12th Gen. Core i3-1215U, 2 x DDR4 slot, 128GB TLC SSD/M.2 2280, projected capacitive touch, 9~36V DC power without Adapter
*Button : 1 x Emergency button, 1 x Green button, 1 x Red button, 1 x Blue button, 1 x USB 2.0 (front)
