Hardware

10/100BASE-TX Auto MDI/MDIX Ports
Alarm
Connector
Dimensions (W x D x H)
EFT Protection
Enclosure
ESD Protection
Installation
LED Indicators
Power Consumption/Dissipation
Power Requirements
Weight

Switch Specifications

Address Table
Buffer Memory
Flow Control
Network Cables
Switch Fabric
Switch Processing Scheme
Throughput (packet per second)

Standards

Humidity
Regulatory Compliance
Stability Testing
Standards Compliance
Temperature
Data Sheet

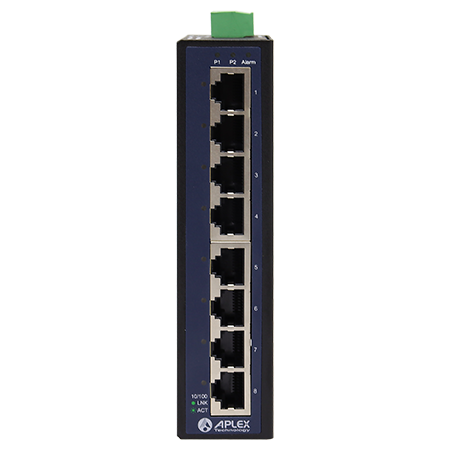

SiER-S0802N

8 ports
Provides one relay output for power failure
Alarm relay current carry ability: 3A@DC 30V
Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
135 x 87 x 32 mm
6KV DC
IP30-rated metal case
6KV DC
DIN rail kit and wall-mount ear
3 x LED for System and Power
■ Green: DC Power 1
■ Green: DC Power 2
■ Green: Power Fault
1x LED for each Copper Port
■ Green: 10/100 LNK/ACT
2.1 watts/7.1BTU
12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
428g
1K
Embedded 448K bits packet buffer
Back pressure for half duplex,
IEEE 802.3x pause frame for full duplex
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters
100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
1.6Gbps
Store-and-Forward
1.19Mpps
5 to 95%, non-condensing
FCC Part 15 Class A, CE
IEC60068-2-32 (free fall)
IEC60068-2-27 (shock-proof)
IEC60068-2-6 (vibration-proof)
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full Duplex Flow Control
IEEE 802.3az Energy Efficient Ethernet
-40~75 ˚C
