AMI/UEFI BIOS
Socket H4, Intel 6th Gen. Core/7th Gen. Core i3/i5/i7 Processor
Non-standard
Intel 100 Series Chipset(H170 Default)
2 x 260 pin SO-DIMM up to 32GB DDR4 1866/2133MHz
Support Audio via Realtek ALC269Q-VB HD audio codec; 2 x Stack Audio Jack, line-out/Mic-in; 2 x 2W speaker out via 1x4 pin header; Line-in, Line-out, MIC via 2x6-pin header
1 x 2 Pin header support CR2477 (1000mAH)
4 x PCIe Gbe LAN for external by Intel 82574L
8-bit digital I/O by header (4 x DI, 4 x DO)
-
-
Front side: 2 x RS232/422/485 port, DB9 connector for external (COM1/COM2) Pin9 with 5V/12V/Ring select; Back side: 2 x RS232 port, DB9 connector for external (COM3/COM4) Pin9 w5V/12V/Ring select; On Board: 2 x RS232/422/485 select header for internal MIO1 (COM5/COM6)
Onboard SIM Card Slot
2 x SATA3 Connector (SATA1/SATA2), 1 x mSATA (M_SATA1)
Nuvoton NCT6106D
4 x USB 3.0 external stack ports, 2 x USB 2.0 external stack ports, 3 x USB 2.0 internal for mini PCIe, 3 x USB 2.0 box Pin header via MIO1, 2 x USB 3.0 box Pin header via MIO2
-
4 x 20 pin socket support TB-554 Series, 2 x mini-PCI-express slot (one share with mSATA)
Intel HD Graphics Series
1 x DVI-I
1 x HDMI
-
HDMI + DVI-I + DP (Default), HDMI + DVI-I +VGA (Option), DVI-I + DP + VGA (Option)
Up to 4096 x 2304 for HDMI, DP; Up to 2560 x 1600 for DVI-I; Up to 1920 x 1200 for VGA
1 x VGA
Wide range DC 9~36V input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
-
TB-525P1, TB-525E11, TB-525E12, TB-525E161, TB-525P1E161, TB-526P1, TB-526P1E11, TB-526P2, TB-526E11,TB-526E12, TB-554E41, TB-554E12, TB-560P2, TB-560P1E11, TB-560AP1E11, TB-560E12

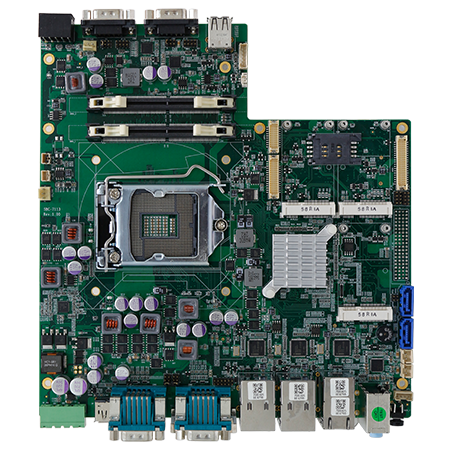

SBC-7113HT: Socket H4, 6th/7th Gen. Intel Core i3/i5/i7 Processor, H170, 2xSO-DIMM DDR4, DP/HDMI/DVI/VGA, 4x20 Pin Expansion Socket (On Top-side), SBC-7113HB: Socket H4, 6th/7th Gen. Intel Core i3/i5/i7 Processor, H170, 2xSO-DIMM DDR4, DP/HDMI/DVI/VGA, 4x20 Pin Expansion Socket (On Bottom-side)
Packing List: 1 x SBC-7113 Industrail Motherboard, 1 x Driver CD, 1 x CR2477 Battery, 1 x SATA 7+15Pin to SATA 7pin/SATA Power 2pin Cable (L=18cm)

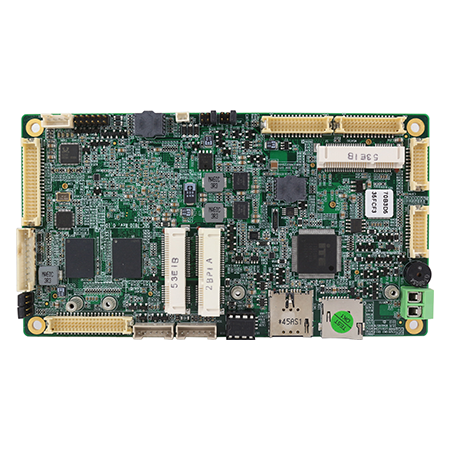

AMI/UEFI BIOS
Intel Atom E3845 Processor (2M Cache, 1.91GHz)
Specific SBC
SoC
Onboard 4GB DDR3L 1333MHz
1 x 2W speaker (2.0mm Pitch 1x4 wafer pin header), 1 x Line out / MIC by 2 x 6 Pin Header 2.0mm Pitch
1 x 2 Pin header support CR2477 (1000mAH)
2 x GbE ports by CN2 (DF-13A 30pin) with Intel 82574L Controller
8 x GPIO by MIO1 DF13 40pin
-
1 x 2 Pin power input connector
1 x RS-232/422/485 (COM1,Non-isolate) pin9 with 5V/12V/ Ring select by CN1 DF13 30pin, 2 x UART(COM3/COM4) by CN4 DF13 20pin
1 x Onboard SIM Slot
1 x mSATA, 1 x Micro SD Card slot
Fintek F81216AD
1 x USB 2.0 (USB1) via CN1 DF13 30pin, 1 x USB 3.0 (USB3) via CN1 DF13 30pin, 1 x USB 2.0 (USB2) via CN3 DF12 40
1 x CAN, 1 x I2C, 1 x UART via COM2 (Support TB-508 Series)
1 x mini-PCIe slot (full-size), 1 x mini-PCIe slot (half-size)
Intel HD Graphics Series
-
-
1 x 18/24-bits dual channel LVDS
-
Up to 1920x1200 for VGA, LVDS
CN1 DF13A 30pin
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
Onboard Wi-fi/GPS/4G LTE Module
-
SBC-7810: Intel Atom E3845, SoC, 4GB DDR3L, 4COM, LVDS, SBC-7810
Packing List: 1 x SBC-7810 SBC, 1 x ML1220 Battery
-
Freescale ARM Cortex A9 i.MX6 Dual Lite 1.00 GHz Processor
Specific SBC
-
On board 1GB DDR3 Memory
Line-in, Line-out, MIC via 2x6-pin header
1 x 2 pin header support ML1220
1 x LAN 10/100/1000M via 2x15-pin header
8-bit digital I/O via MIO1
-
1 x 2 Pin power input connector
1 x RS422/485 via MIO1
1 x Onboard SIM Slot
1 x Micro SD Card slot
-
1 x USB2.0(Micro B), 2 x USB2.0 via MIO1, 1 x USB2.0 internal for mini PCIe
1 x CAN, 1 x I2C, 1 x UART via CON2 (Support TB-508 Series)
1 x mini-PCIe slot
-
-
-
1 x 18/24-bits single channel LVDS
-
Up to 1920x1200 for VGA, LVDS
-
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
Onboard Wi-fi/GPS/4G LTE Module
-
Freescale i.MX6 Dual Lite 1.00GHz CPU, 1GB DDR3, 4G eMMC, LVDS

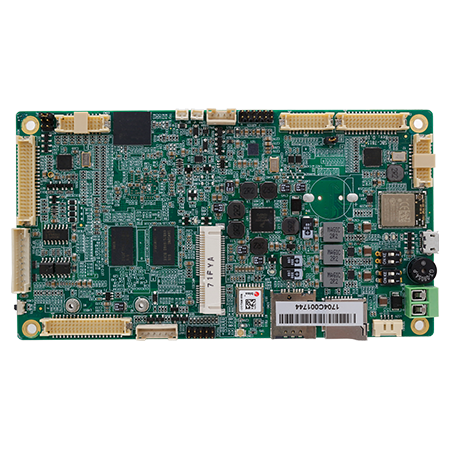

Packing List: 1 x SBC-7815 SBC, 1 x ML1220 Battery
