AMI/UEFI BIOS
Socket H4, Intel 8th Gen. Core / 9th Gen. Core Processor, Xeon Processors
Non-standard
Intel C246 Series Chipset
2 x 260-pin SO-DIMM, 2DPC, up to 64GB DDR4 2666MHz
Support Audio via Realtek ALC269Q-VC
Line-in/LIne-out/Mic-in via DF-13-30P (MIO1)
Support a stereo Class-D Speaker amplifier with 2 watt per channel output power, by 1 x 4-Pin header (SPK1)
1 x 2 Pin header support CR2477 (1000mAH)
1 x PCIe Gbe LAN for external by Intel I210AT
1 x PCIe Gbe LAN for external by Intel I219LM
8-bit digital I/O by header (4 x DI, 4 x DO) via DF-13-30P (MIO1)
-
2 x RS232/422/485 port, DB9 connector, pin 9 with 5V/12V/Ring select (COM1/COM2)
4 x RS-232 port, via DF-13-40P (MIO2)
1 x Micro SIM Card holder
4 x SATA3 Connector, support RAID (0/1/5/10)
4 x SATA power
1 x M.2 M-Key (PCIe x4, SATA, SMBUS), support 2242/2280
Nuvoton NCT6106D
4 x USB 3.1 Type-A stack ports with RJ 45 for external
2 x USB 2.0 Type-A stack ports for extrenal
4 x USB 2.0 via 2 x pitch 2.0mm,2 x 5-Pin header
1 x ineternal USB 2.0, Type-A
2 x USB 2.0 for mini PCIe
1 x PCIe x16, 2 x PCIe x4 or 2 x PCIe x8, 2 x PCIe x4 via TB-594 series
(1 x PCIe x16 or 2 x PCIe x8 select via BIOS), 2 x mini PCIe slot (Full-size)
Intel UHD Graphics Series
-
1 x DP
1 x HDMI
-
Up to 4096 x 2304 @60 Hz for DP
Up to 4096 x 2160 @30 Hz for HDMI
-
Wide range DC 24~36V input
1 x 3 Pin power input connector
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
10%~90%, non-condensing, operating
-40°C~85°C (-40°F~185°F)

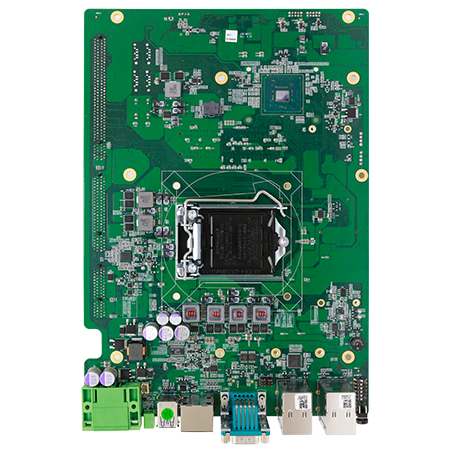

ASB-M8371CB: Socket H4, 8th/9th Gen Intel Core/Xeon Processor, C246, 2 x SO-DIMM DDR4, DP/HDMI, Riser card Expansion(On Bottom-side)
Packing List: 1 x ASB-M8371 Industrial Motherboard, 1 x CR2477 Battery
