System

System Chipset

I/O Port

Audio
Power
Serial
USB

Display

DVI Interface
HDMI Interface
LVDS Interface
Resolution
VGA Interface

Power

Power input

Mechanical

Dimension(mm)
Net weight(Kgs)

Environment

Certification
Operating temperature(°C)
Storage humidity
Storage temperature(°C)

Accessory

Accessory

Ordering Information

Barebone
Option
Data Sheet

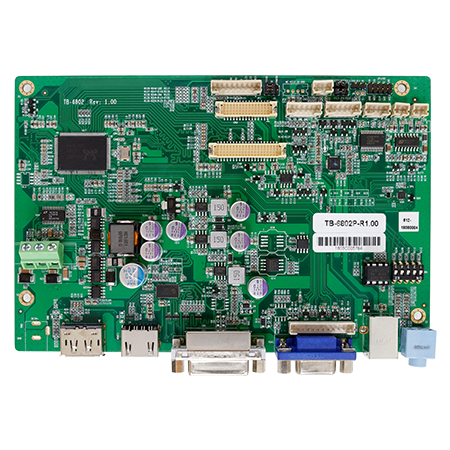

TB-6802

RTD2556T-CG
1x Line in via audio jack Support 2 x 3W AMP function
1 x 3 pin power input connector
-
1 x USB type B
1 x DVI-D input
1 x HDMI input
1 x 18/24-bits dual channel LVDS, 1 x eDP
Up to 1920 x1200 for LVDS, eDP
1 x VGA input Port, DB15 connector
Wide Range DC 9~36V Input
170mm x 115mm
-
Meet RoHS 2.0/CE/FCC Class A
-20°C~70°C (-4°F~158°F)
0%~80%, non-condensing, operating
-40°C~85°C (-40°F~185°F)
1 x DP input
TB-6802: VGA/HDMI/DP/DVI/AUDIO/USB/DC 9~36V 90D/ TB-6802
TB-6802P: VGA/HDMI/DP/DVI/AUDIO/USB/DC 9~36V 180D/TB-6802P
Packing List: 1 x TB-6802 AD Board
Data Sheet
Driver
User Manual
