19" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1000
8th Gen. Core i3-8145UE (2C/4T,2.2GHz)
8th Gen. Core i5-8365UE (4C/8T,1.6GHz)
TBD
SoC
1 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz
TPM 2.0
1 x Line Out
1 x DP
2 x GbE LAN RJ-45
1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
1 x DB-9 connector, Including:
* 1 x RS-232(RTS, Rx, Tx, CTS), pin1 RTS/5V/12V selectable via jumper (COM1)
* 1 x RS-232(Tx, Rx)/422/485(COM2) by Y Cable
4 x USB 3.0 type A
1 x M.2 M-Key slot (Support PCIe/SATA3; 2242/2280, Default 2242)
1 x Mini-PCIe slot (full size)
1 x Nano SIM Card Holder
50,000
1000:1
19" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
1280 x 1024
170 / 160
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
SUS304 Stainless Steel Front Bezel (default)
SUS316L Stainless Steel Front Bezel (for option)
Aluminum Die-casting Back Cover
485 x 398 x 63.8 mm
IP66/IP69K Compliant Front Bezel
Panel Mount, VESA Mount 100 x 100
TBD
CE/FCC Class A
EN 1672-2 Compliant for P Model (optional)
0~50˚C/ -20~60°C (option)
10 to 95%@ 40°C, non-condensing
-30~70°C
Windows 10 IoT, Windows 11 IoT

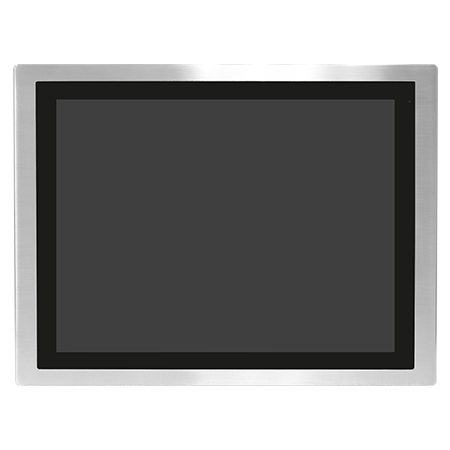

FABS-919BR(H):
19" (High brightness) SXGA fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
FABS-919BP(H):
19" (High brightness) SXGA fanless HMI barebone with Intel 8th Gen. Core i3-8145UE/i5-8365UE, 1 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Stainless front bezel and Aluminum chassis.
●VESA Stand ●4G LTE/Wi-Fi 4/5/6+/Bluetooth ●4 x USB 2.0 type A (TB-528U4) ●4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) ●2 x COM (RS-232) (TB-528C2) ●1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) ●1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) ●2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) ●2 x COM (RS-422/485, isolated) (TB-528C2I) ●2 x CAN (TB-528CAN2) ●1 x LAN + 2 x USB 2.0 (TB-528E1U2) ●Backup Battery 21W/10.8V/1.95Ah(3S1P)
