15.6" TFT-LCD
Projected Capacitive Touch
Standard: 400 (default), 500 (optional)
High Brightness: 1000
Intel Celeron J6412 (2.0GHz, 1.5MB L2 cache)
AUHMI-816BP: 40W
SoC
1 x 260-pin SO-DIMM up to 32GB DDR4 3200MHz
TPM 2.0
1 x Line Out
1 x DP, support DP++
2 x 2.5GbE LAN RJ-45
1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector
1 x RS-232/422/485 (Default RS-232; select via BIOS)
2 x USB 3.2 Gen2 type A
2 x USB 2.0 ,Type-A
1 x M.2 B-Key 2280 (Support SATA3)
1 x M.2 E-key
1 x M.2 B-Key
1 x Nano SIM slot
50,000
500:1 (default), 1000:1 (optional)
15.6" TFT-LCD
Standard: 400 (default), 500 (optional)
High Brightness: 1000
16.7M
1366 x 768 (default)
1920 x 1080 (optional)
Standard: 170 / 160 (default), 178 / 178 (optional)
High Brightness: 160 / 160 (default), 170 / 170 (optional)
USB
Projected Capacitive Touch: Over 90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
405 x 256 x 59 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
3.7 kg
CE/FCC, Class B
0~50˚C / -20~60˚C (option)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT, Windows 11 IoT

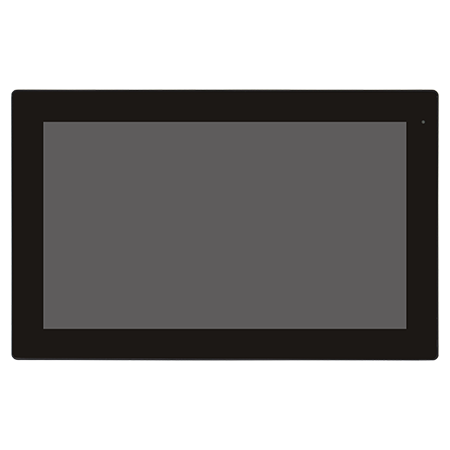

AUHMI-816BP(H):
15.6" (high brightness) HD/FHD fanless HMI barebone with Intel Celeron J6412, 1 x DDR4 slot, 1 x M.2 2280 SATA slot, 1 x M.2 E key slot, 1 x M.2 B key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum Die-casting chassis.
●4G LTE ●Wi-Fi + Bluetooth ●4 x USB 2.0 type A (TB-528U4) ●4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1) ●1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2) ●1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1) ●2 x COM (RS-232) (TB-528C2) ●2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1) ●2 x COM (RS-422/485, isolated) (TB-528C2I) ●2 x CAN (TB-528CAN2) ●1 x LAN + 2 x USB 2.0 (TB-528E1U2) ●1 x LAN (45W isolated PoE) + 2 x USB 2.0 type A (TB528E1U2UPOE) ●1 x Backup Battery (10.8V/3150mAh) ●1 x Cable Cover ●(TB-528 Series or backup battery only be inserted in either one) Either high brightness panel or backup battery can be installed in HMI
