10.1" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1200
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-910DP/R: 75W(Max)
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
Standard: 30,000
High Brightness: 50,000
Standard: 800:1
High Brightness: 1200:1
10.1" TFT-LCD
Standard: 350
High Brightness: 1200
16.7M
1280 x 800
Standard: 170 / 170
High Brightness: 178 / 178
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
285 x 189 x 75
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
2.61 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-910DP(H):
10.1" WXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
ARCHMI-S-910DR(H):
10.1" WXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis
12.1" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 178 / 178
High Brightness: 176 / 176 (default), 178 / 178 (optional)
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-912DP/R: 70W(Max)
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
Standard: 50,000 (default), 30,000 (optional)
High Brightness: 50,000 (default), 70,000 (optional)
Standard: 1500:1 (default), 1000:1 (optional)
High Brightness: 1000:1

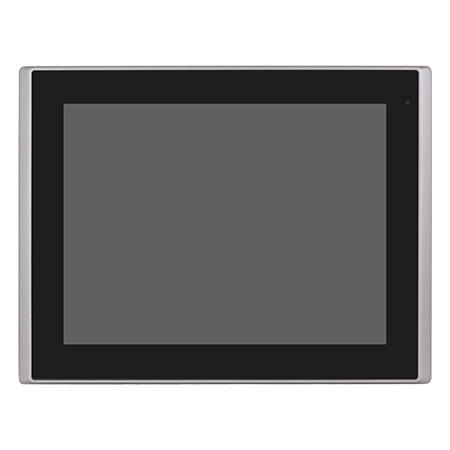

12.1" TFT-LCD
Standard: 178 / 178
High Brightness: 176 / 176 (default), 178 / 178 (optional)
Standard: 450 (default), 500 (optional)
High Brightness: 1000
800 x 600 (default)
1024 x 768 (optional)
Standard: 350
High Brightness: 1200
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
314 x 244.9 x 77
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
3.5 k
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-912DP(H):
12.1" SVGA/XGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
ARCHMI-S-912DR(H):
12.1" SVGA/XGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis
12.1" Wide TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 400
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-912WBP/R: Around 70W
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
50,000
Standard: 1200:1
High Brightness: 1000:1

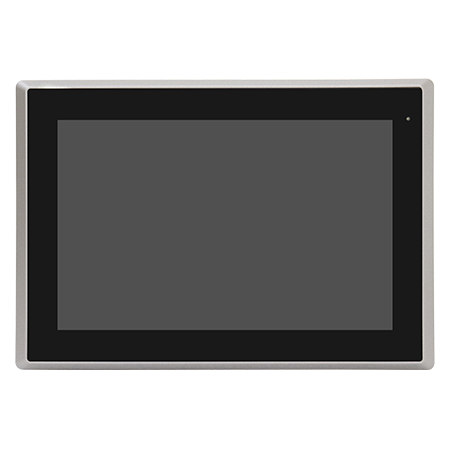

12.1" Wide TFT-LCD
Standard: 400
High Brightness: 1000
16.7M
1280 x 800
Standard: 170 / 170
High Brightness: 176 / 176
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
328 x 227 x 78 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
5.79 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-912WDP(H) :
12.1" WXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
ARCHMI-S-912WDR(H):
12.1" WXGA High brightness fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.
15" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-915DP/R: 80W(Max)
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
Standard: 50,000
High Brightness: 70,000
Standard: 1000:1
High Brightness: 3000:1

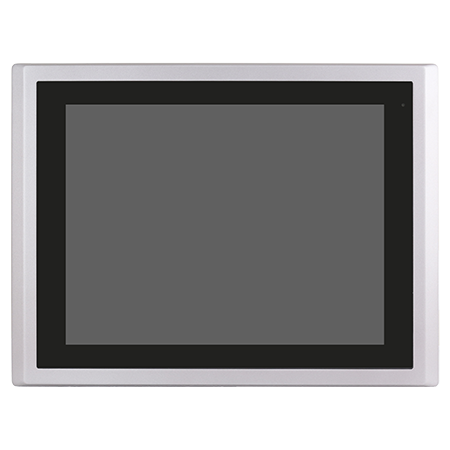

15" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
1024 x 768
Standard: 178 / 178
High Brightness: 176 / 176
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
410.2 x 290 x 78.7
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
5 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-915DP(H):
15" XGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
ARCHMI-S-915DR(H):
15" XGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36V DC input with adapter, Aluminum chassis.
15.6" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 500
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-916DP/R: TBD
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
50,000
1,000:1

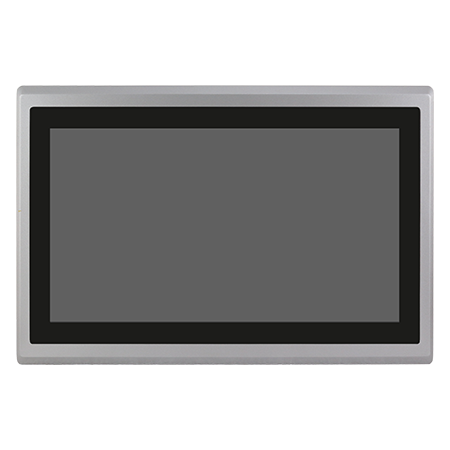

15.6" TFT-LCD
Standard: 500
High Brightness: 1000
16.7M
1920 x 1080
Standard: 178 / 178
High Brightness: 170 / 170
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
412 x 277.5 x 78
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
4.2 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-916DP(H):
15.6" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36Vdc input with adapter, Aluminum chassis
ARCHMI-S-916DRL(H):
15.6" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36Vdc input with adapter, Aluminum chassis
17" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-917DP/R: 59W
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
50,000
Standard: 1000:1
High Brightness: 800:1

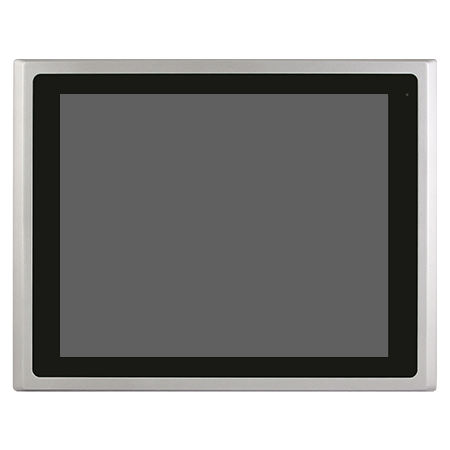

17" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
1280 x 1024
Standard: 160 / 140
High Brightness: 170 / 160
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
439 x 348 x 82
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
6.17 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-917DP(H):
17" SXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36Vdc input with adapter, Aluminum chassis
ARCHMI-S-917DR(H):
17" SXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36Vdc input with adapter, Aluminum chassis
18.5" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-918DP/R: TBD
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
50,000
1,000:1

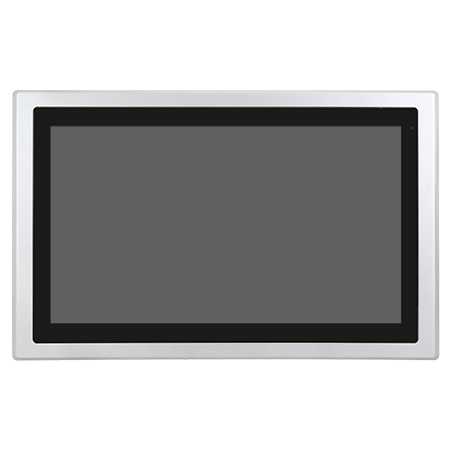

18.5" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
1920 x 1080
178 / 178
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
499.6 x 314.6 x 82
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
6.7 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-918DP(H):
18.5" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis
ARCHMI-S-918DR(H):
18.5" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Aluminum chassis.
19" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-919DP/R: TBD
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
50,000
Standard: 1000:1
High Brightness: 1200:1
19" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
1280 x 1024
170 / 160
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
468 x 380 x 82
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
7.03 kg
CE/FCC Class A
0~50˚C
-20~60˚C (w/ Industrial wide Temp. SSD/RAM)
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
ARCHMI-S-919DP(H):
19" SXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36Vdc input with adapter, Aluminum chassis
ARCHMI-S-919DR(H):
19" SXGA (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36Vdc input with adapter, Aluminum chassis
21.5" TFT-LCD
P: Projected Capacitive/ R: Resistive
Standard: 350
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-921DP/R: Around 67W
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
50,000
1,000:1
21.5" TFT-LCD
Standard: 350
High Brightness: 1000
16.7M
Standard: 1920 x 1080
High Brightness: 1920 x 1080, FHD
178 / 178
USB
Projected Capacitive Touch: Over 90%
Resistive Touch: 80%
P: Projected Capacitive/ R: Resistive
Aluminum Die-casting Chassis
557.3 x 362.3 x 81.4
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
7.4 kg
CE/FCC Class A
0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later

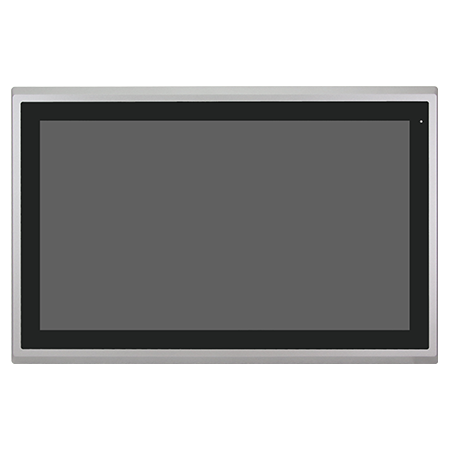

ARCHMI-S-921DP(H):
21.5" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis
ARCHMI-S-921DR(H):
21.5" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Resistive touch screen, 9~36VDC input with adapter, Aluminum chassis
23.8" TFT-LCD
Projected Capacitive Touch
Standard: 250
High Brightness: 1000
AMI UEFI
Intel 12th Gen. Core i3/i5
ARCHMI-S-924DP: TBD
SoC
2 x DDR4 3200MHz SO-DIMM, up to 32GB
Onboard TPM2.0 SPI I/F TPM IC
1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block Type, 9-36VDC Power input
1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
2 x USB 3.2 Type A
2 x USB 2.0 Type A
1~255 sec (system)
1 x M.2 Key-M Slot for NVME (PCIe, 2280)
1 x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G, 3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
30,000
3000:1
23.8" TFT-LCD
Standard: 250
High Brightness: 1000
16.7M
1920 x 1080
178 / 178
USB
Projected Capacitive Touch: 90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
640 x 395 x 88
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
9.44 kg
CE/FCC Class A
0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later

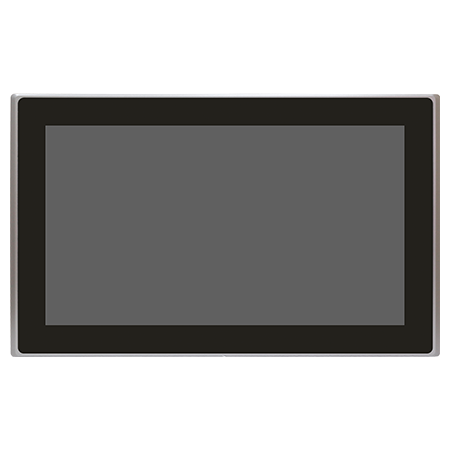

ARCHMI-S-924DP(H):
23.8" FHD (High brightness) fanless HMI barebone with Intel i3-1215U/i5-1235U CPU, 2 x DDR4 slot, Projected Capacitive touch, 9~36VDC input with adapter, Aluminum chassis
