10.1" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
SoC
1 x DDR5-5600MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x DP 1.4
1 x HDMI 2.1
2 x RJ-45 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232(COM3), optional
4 x USB 3.2 Gen1 Type-A
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCle 3.0 x4)
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3402/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
Standard: 30,000
High Brightness: 50,000
800:1
10.1" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.2M
High Brightness: 16.7M
1280 x 800
Standard: 170 / 170
High Brightness: 178 / 178
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
270 x 184.9 x 66 mm
IP66 Compliant Front Bezel
Panel Mount
VESA 100 x 100
CE/FCC, Class A
-20~60˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later, Linux 24.04

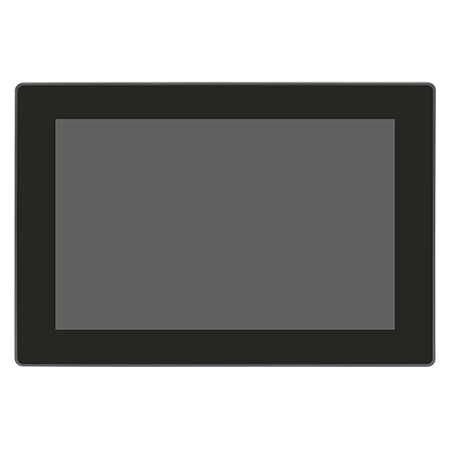

AiTRON-910EP(H):
10.1" WXGA (High Brightness) fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
12.1" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1,000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
SoC
1 x DDR5-5600MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x DP 1.4
1 x HDMI 2.1
2 x RJ-45 2.5GbE LAN
Wake on: LAN Support WOL
1 x Terminal Block
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232(COM3), optional
4 x USB 3.2 Gen1 Type-A
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCle 3.0 x4)
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3402/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
Standard: 30,000
High Brightness: 70,000
800:1
12.1" TFT-LCD
Standard: 350
High Brightness: 1,000
Standard: 16.2M
High Brightness: 16.7M
1024 x 768
Standard: 170 / 170
High Brightness: 178 / 178
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
291 x 230 x 64 mm
IP66 Compliant Front Bezel
Panel Mount
VESA 100 x 100
CE/FCC, Class A
-20~60˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later, Linux 24.04

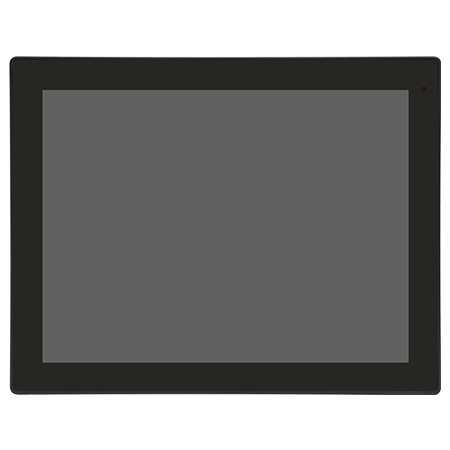

AiTRON-912EP(H):
12.1" XGA (High Brightness) fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
15" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
SoC
1 x DDR5-5600MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x DP 1.4
1 x HDMI 2.1
2 x RJ-45 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232(COM3), optional
4 x USB 3.2 Gen1 Type-A
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCle 3.0 x4)
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3402/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
50,000
1000:1
15" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.7M
High Brightness: 16.2M
1024 x 768
Standard: 178 / 178
High Brightness: 176 / 176
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
359.6 x 283.6 x 65.5 mm
IP66 Compliant Front Bezel
Panel Mount
VESA 100 x 100
CE/FCC, Class A
-20~60˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later, Linux 24.04

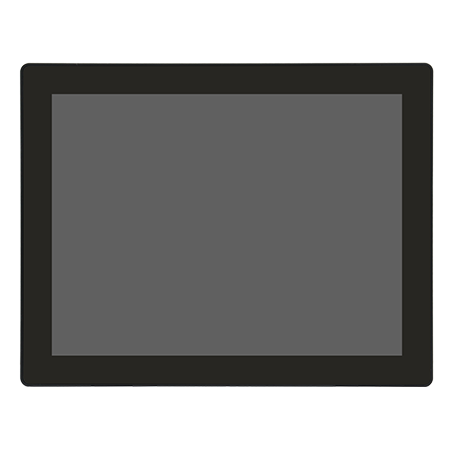

AiTRON-915EP(H):
15" XGA (High Brightness) fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
15.6" TFT-LCD
Projected Capacitive Touch
Standard: 500
High Brightness: 1,000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
SoC
1 x DDR5-5600MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x DP 1.4
1 x HDMI 2.1
2 x RJ-45 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232(COM3), optional
4 x USB 3.2 Gen1 Type-A
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCle 3.0 x4)
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3402/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
50,000
1000:1
15.6" TFT-LCD
Standard: 500
High Brightness: 1,000
16.7M
1920 x 1080, FHD
Standard: 178 / 178
High Brightness: 170 / 170
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
396.3 x 245.7 x 64 mm
IP66 Compliant Front Bezel
Panel Mount
VESA 100 x 100
CE/FCC, Class A
-20~60˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later, Linux 24.04

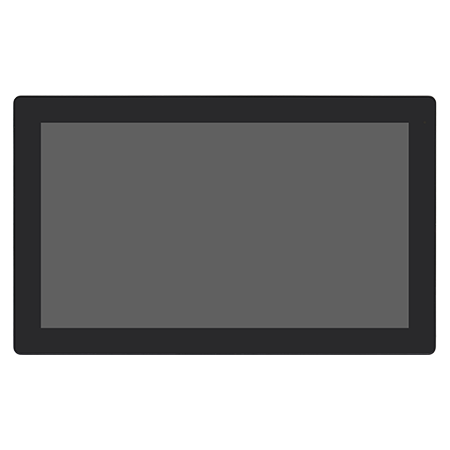

AiTRON-916EP(H):
15.6" FHD (High Brightness) fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis
21.5" TFT-LCD
Projected Capacitive Touch
Standard: 250
High Brightness: 1,000
AMI UEFI
Intel Core Ultra 5
Intel Core Ultra 7
SoC
1 x DDR5-5600MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x DP 1.4
1 x HDMI 2.1
2 x RJ-45 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232(COM3), optional
4 x USB 3.2 Gen1 Type-A
1~255 sec (system)
1 x M.2 2280 M-Key socket (PCle 3.0 x4)
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3402/3052 B-key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
50,000
1000:1
21.5" TFT-LCD
Standard: 250
High Brightness: 1,000
16.7M
1920 x 1080, FHD
Standard: 178 / 178
High Brightness: 170 / 170
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
592.6 x 321.3 x 65.5 mm
IP66 Compliant Front Bezel
Panel Mount
VESA 100 x 100
CE/FCC, Class A
0~50°C
10 to 95%@ 40˚C, non-condensing
-10~60°C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (21H2) or later, Linux 24.04

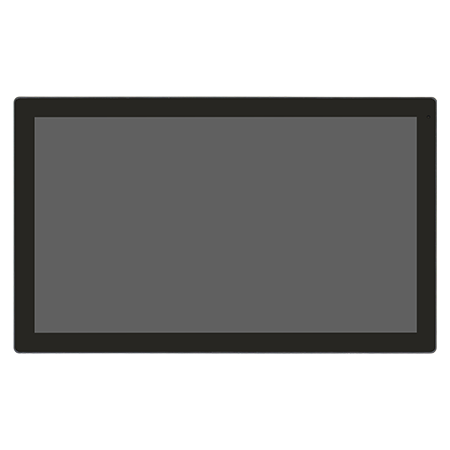

AiTRON-921EP(H)
21.5" FHD (High Brightness) fanless HMI barebone with Intel Core Ultra 5/7, 1 x DDR5 slot, Projected Capacitive Touch, 9~36V DC input with adapter, Aluminum chassis
