7" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
TBD
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x HDMI 1.4: Up to 4096 x 2160@30Hz
2 x RJ-45, support Intel I226V/IT 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block, supports DC 9~36V Power Input
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
30,000
800:1
7" TFT-LCD
Standard: 350
High Brightness: 1000
16.2M
1024 x 600
170 / 170
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
197 x 135 x 48 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
1 kg
CE/FCC, Class A
Standard: -20~60˚C
High Brightness: 0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 or later

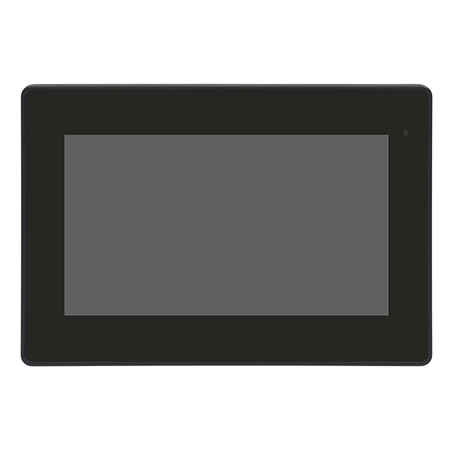

AiTRON-807CP(H):
7" (High Brightness) fanless HMI barebone with Intel N97 CPU, 1 x DDR5 slot, 1 x M.2 2280 M-Key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
10.1" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
36.67W
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x HDMI 1.4: Up to 4096 x 2160@30Hz
2 x RJ-45, support Intel I226V/IT 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block, supports DC 9~36V Power Input
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232 (COM3), optional
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A (optional)
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
Standard: 30,000
High Brightness: 50,000
800:1
10.1" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.2M
High Brightness: 16.7M
1280 x 800
Standard: 170 / 170
High Brightness: 178 / 178
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
270 x 184.9 x 57 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
2.31 kg
CE/FCC, Class A
Standard: -20~60˚C
High Brightness: 0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 or later
AiTRON-810CP(H):
10.1" WXGA (High Brightness) fanless HMI barebone with Intel N97 CPU, 1 x DDR5 slot, 1 x M.2 2280 M-Key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
12.1" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
38.41W
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x HDMI 1.4: Up to 4096 x 2160@30Hz
2 x RJ-45, support Intel I226V/IT 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block, supports DC 9~36V Power Input
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232 (COM3), optional
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A (optional)
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
Standard: 30,000
High Brightness: 70,000
800:1
12.1" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.2M
High Brightness: 16.7M
1024 x 768
Standard: 170 / 170
High Brightness: 178 / 178
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
291 x 230 x 55 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
2.31 kg
CE/FCC, Class A
Standard: -20~60˚C
High Brightness: 0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 or later

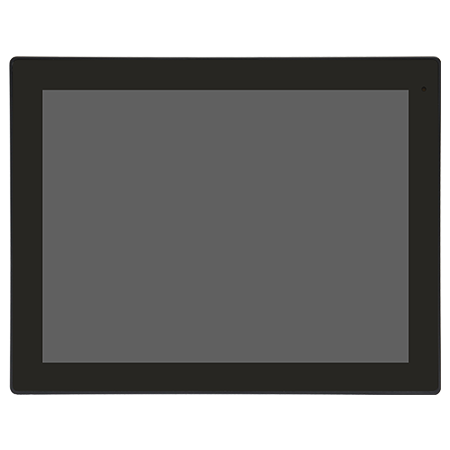

AiTRON-812CP(H):
12.1" XGA (High Brightness) fanless HMI barebone with Intel N97 CPU, 1 x DDR5 slot, 1 x M.2 2280 M-Key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
15" TFT-LCD
Projected Capacitive Touch
Standard: 350
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
51.62W
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x HDMI 1.4: Up to 4096 x 2160@30Hz
2 x RJ-45, support Intel I226V/IT 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block, supports DC 9~36V Power Input
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232 (COM3), optional
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A (optional)
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
50,000
1000:1
15" TFT-LCD
Standard: 350
High Brightness: 1000
Standard: 16.7M
High Brightness: 16.2M
1024 x 768
Standard: 178 / 178
High Brightness: 176 / 176
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
359.6 x 283.6 x 56.5 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
TBD
CE/FCC, Class A
Standard: -20~60˚C
High Brightness: 0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 or later
AiTRON-815CP(H):
15" XGA (High Brightness) fanless HMI barebone with Intel N97 CPU, 1 x DDR5 slot, 1 x M.2 2280 M-Key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
15.6" TFT-LCD
Projected Capacitive Touch
Standard: 500
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
52.97W
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x HDMI 1.4: Up to 4096 x 2160@30Hz
2 x RJ-45, support Intel I226V/IT 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block, supports DC 9~36V Power Input
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232 (COM3), optional
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A (optional)
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
50,000
1000:1
15.6" TFT-LCD
Standard: 500
High Brightness: 1000
16.7M
1920 x 1080
Standard: 178 / 178
High Brightness: 170 / 170
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
396.3 x 245.7 x 55 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
TBD
CE/FCC, Class A
Standard: -20~60˚C
High Brightness: 0~50˚C
10 to 95%@ 40˚C, non-condensing
-30~70˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 or later
AiTRON-816CP(H):
15.6" FHD (High Brightness) fanless HMI barebone with Intel N97 CPU, 1 x DDR5 slot, 1 x M.2 2280 M-Key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
21.5" TFT-LCD
Projected Capacitive Touch
Standard: 250
High Brightness: 1000
AMI UEFI
Intel N97 Processor, Quad Core 2.0GHz, TDP is 12W
Intel Atom x7425E, Quad Core 1.5GHz, TDP is 12W
47.52W
SoC
1 x DDR5-4800MHz SO-DIMM, up to 32GB
Onboard TPM2.0
1 x HDMI 1.4: Up to 4096 x 2160@30Hz
2 x RJ-45, support Intel I226V/IT 2.5GbE LAN
Wake on LAN: Support WOL
1 x Terminal Block, supports DC 9~36V Power Input
1 x DB9, supports RS-232/422/485 (COM1, BIOS selection, RS-232 is default)
1 x DB9, supports RS-232/422/485 (COM2, BIOS selection, RS-232 is default), optional
1 x DB9, supports RS-232 (COM3), optional
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A (optional)
1~255 sec (system)
1 x M.2 2280 M-Key socket (SATA 3.0 and PCle 3.0 x1), Default is SATA Type
1 x M.2 2230 E-Key (USB2.0, PCIe x1) for optional Wi-Fi/BT module
1 x M.2 3042/3052 B-Key (PCIe x1, USB3.2 Gen1, USB2.0) for optional LTE/5G module
1 x Nano-SIM slot
50,000
1000:1
21.5" TFT-LCD
Standard: 250
High Brightness: 1000
16.7M
1920 x 1080
178 / 178
USB
90%
Projected Capacitive Touch
Aluminum Die-casting Chassis
529.6 x 321.3 x 56.5 mm
IP66 Compliant Front Bezel
Panel Mount, VESA 100 x 100
5.14 kg
CE/FCC, Class A
0~50˚C
10 to 95%@ 40˚C, non-condensing
-10~60˚C
Windows 10 IoT Enterprise 2021 LTSC or later, Windows 11 (22H2) or later, Linux 24.04 or later
AiTRON-821CP(H):
21.5" FHD (High Brightness) fanless HMI barebone with Intel N97 CPU, 1 x DDR5 slot, 1 x M.2 2280 M-Key slot, 1 x M.2 E-key slot, 1 x M.2 B-key slot, Projected Capacitive touch, 9~36V DC input with adapter, Aluminum chassis.
