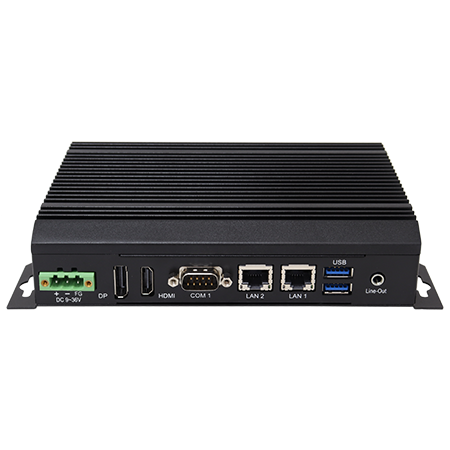

ACS-2310A

System

CPU

Power Consumption

System Chipset

System Memory

TPM

I/O Port

Audio

Digital I/O

Graph

HDMI

LAN

Power

Serial / Parallel

USB

Storage Space

HDD/SSD

Expansion

Expansion slot

On board expansion bus

Power

Power input

Mechanical

Construction

Dimension(mm)

IP rating

Mounting

Net weight(Kgs)

Enviroment

Certification

Operating temperature(°C)

Storage humidity

Storage temperature(°C)

Operating System

Ordering Information

Barebone

Option

Download

Data Sheet

Intel Celeron J6412 (default)
Intel Atom x6425E (option)

SoC

1 x 260-pin SO-DIMM up to 32GB DDR4

1 x Line-out

1 x DP

1 x HDMI

1 x 2.5GbE LAN, RJ-45
1 x GbE LAN, RJ-45

1 x 3-pin DC Power Input, Terminal Block
1 x Power Button

1 x RS-232/422/485, DB-9 (default RS-232)

2 x USB 3.2 Gen1 type A

1 x MO-297 SATA Half Slim SSD
1 x M.2 B-Key 2242/2280 SATA
* Support to use M.2 and MO-297 SSD Simultaneously

1 x Full Size Mini-PCIe slot for 4G LTE
1 x M.2 E-Key, 2230 for WiFi/Bluetooth

DC 9~36V

Aluminum Heatsink and Steel Chassis

207 x 130 x 41.5 mm

Wall Mount (default)
VESA (100x100 & 75x75) (optional)

1.0 kg

Meet CE/FCC Class A

0~50˚C (optional WT1 -20~60˚C/ WT2 -20~70˚C)

10 to 90%@ 40˚C, non-condensing

-40~85˚C

Windows 10 IoT, Windows 11 IoT

Fanless Box PC, Intel Celeron J6412CPU, 1x SO-DIMM DDR4 slot up to 32GB, 1 x M.2 B Key for 2242/2280 SATA SSD, 1x DP, 1 x HDMI, 1x mini-PCIe slot Full size for 4G LTE, 1x M.2 E Key for WIFI/BT, 9~36 VDC power input with adaptor, Steel Chassis with Aluminum Heatsink.
