System

CPU
Power Consumption
System Memory

I/O Port

Buttons
Graph
HDMI
LAN
Others
PoE
Serial / Parallel
USB

Storage Space

HDD/SSD

Expansion

Expansion slot

Power

Power input

Mechanical

Dimension(mm)
Mounting
Net weight(Kgs)

Environment

Certification
Operating temperature(°C)
Storage temperature(°C)

Operating System

Operating System
Data Sheet

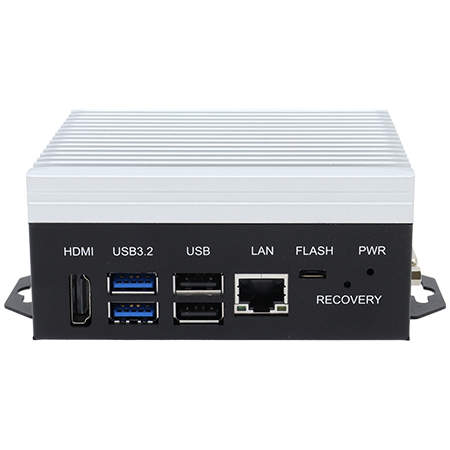

AITAS-EN302

6-core Arm® Cortex® -A78AE
NVIDIA Jetson Orin NX 8GB up to 70 TOPS
Full Loading: 60W
8GB 128-bit LPDDR5 102.4 GB/s
1 x Recovery Button
GPU: 1024 Core NVIDIA Ampere, with 32 Tensor Cores
1 x HDMI 2.1 Type A
1 x RJ-45 GbE Port
2 x Antenna
-
1 x DB-9 for RS-232 (Rx/Tx/CTS/RTS) / 1 x CANBus 2.0
1 x DB-15 for RS-232 (Rx/Tx)/422/485 / 8 x DIO
2 x USB 3.2 Gen2 Type A, supports up to 10Gbps shared
2 x USB 2.0 Type-A
1 x Micro USB for OS Flash
1 x M.2 3052 B-Key for M.2 2242 B+M Key SSD (Default Storage)
1 x M.2 2230 E-Key (Optional)
1 x M.2 3042/3052 B Key (4G/5G/M.2 2242 B+M Key storage)
1 x M.2 2230 E Key (Wi-Fi/BT/Storage)
1 x SIM Slot
DC-in 12~24VDC / 2 pins terminal block
105 x 49 x 90 mm
Wall mount, DIN Rail
1.2 kg
CE / FCC Class A
-15°C ~ 55°C (-5°F ~ 131°F) with 0.5 m/s air flow
-40°C ~ +85°C (-40°F ~ +185°F)
Ubuntu 22.04 LTS (NVIDIA Jetpack™ 5.0 up)
Data Sheet
Driver
User Manual
Data Sheet

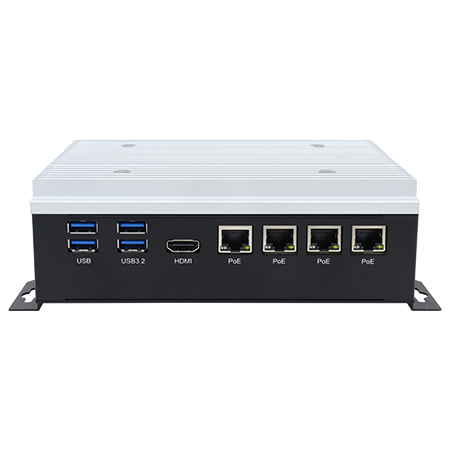

AITAS-EN303

8-core Arm® Cortex® -A78AE
NVIDIA Jetson Orin NX 16GB up to 100 TOPS
Full Loading : 120 W
16GB 128-bit LPDDR5 102.4 GB/s
1 x Recovery Button
1 x Power Button
GPU: 1024 Core NVIDIA Ampere, with 32 Tensor Cores
1 x HDMI 2.0 Type-A
1 x RJ-45 GbE Port
2 x Antenna
1 x LED
4 x RJ-45 GbE PSE (IEEE 802.3af compliant, Max.60W)
1 x DB-9 for RS-232 (Rx/Tx/CTS/RTS) / 1 x CANBus 2.0
1 x DB-15 for RS-232 (Rx/Tx)/422/485 / 8 x DIO
4 x USB 3.2 Gen2 Type A
1 x Micro USB for OS Flash
1 x M.2 2280 M Key
1 x M.2 2280 M-Key (NVMe)
1 x M.2 3042/3052 B-Key
1 x M.2 2230 E-Key
1 x SIM Slot
DC-in 12~24VDC / 2 pins terminal block
180 x 63 x 136 mm
Wall mount, DIN Rail
2.5 kg
CE / FCC Class A
-15°C ~ 55°C (-5°F ~ 131°F) with 0.5 m/s air flow
-40°C ~ +85°C (-40°F ~ +185°F)
Ubuntu 22.04 LTS (NVIDIA Jetpack™ 5.0 up)
Data Sheet
Driver
User Manual
