New Product
29
2022 / Apr

AVS-52X Series Provides a Flexible and Extensive I/O Support for Machine Vision Solutions

Taipei, Taiwan－April, 2022－APLEX Technology Inc., a global industrial computer products solutions provider is pleased to introduce the new series of our fan-less machine vision box PC-AVS-52X series. This series includes AVS-520, AVS-520QL, AVS-522-EH1EQ1, AVS-522QL-EH1EQ1, AVS-524-EH1EQ2 and AVS-524QL-EH1EQ2, which is designed for the applications in industrial automation, smart control systems, machine vision inspection, machine learning and surveillance.

The performance and features of AVS-52X series

AVS-52X series is powered by 9th Gen. Intel Core i7/i5/i3 processor and is paired with up to 64GB of SO-DIMM memory. Besides, integrating with the graphic card, the series can provide top-end computing performance and graphic processing to support every functions that AI based machine vision needed.

AVS-52X series supports wide range power input DC9~36V and is able to operate under wide temperatures range from -20℃ to 60℃. It is constructed with plating titanium gray aluminum heatsink and black steel chassis. It supports both wall mount and din rail mount (for option). Moreover, it also has multiple I/O interfaces, expansions and even removable drive-bays.

High flexibility and expansibility of I/O interfaces

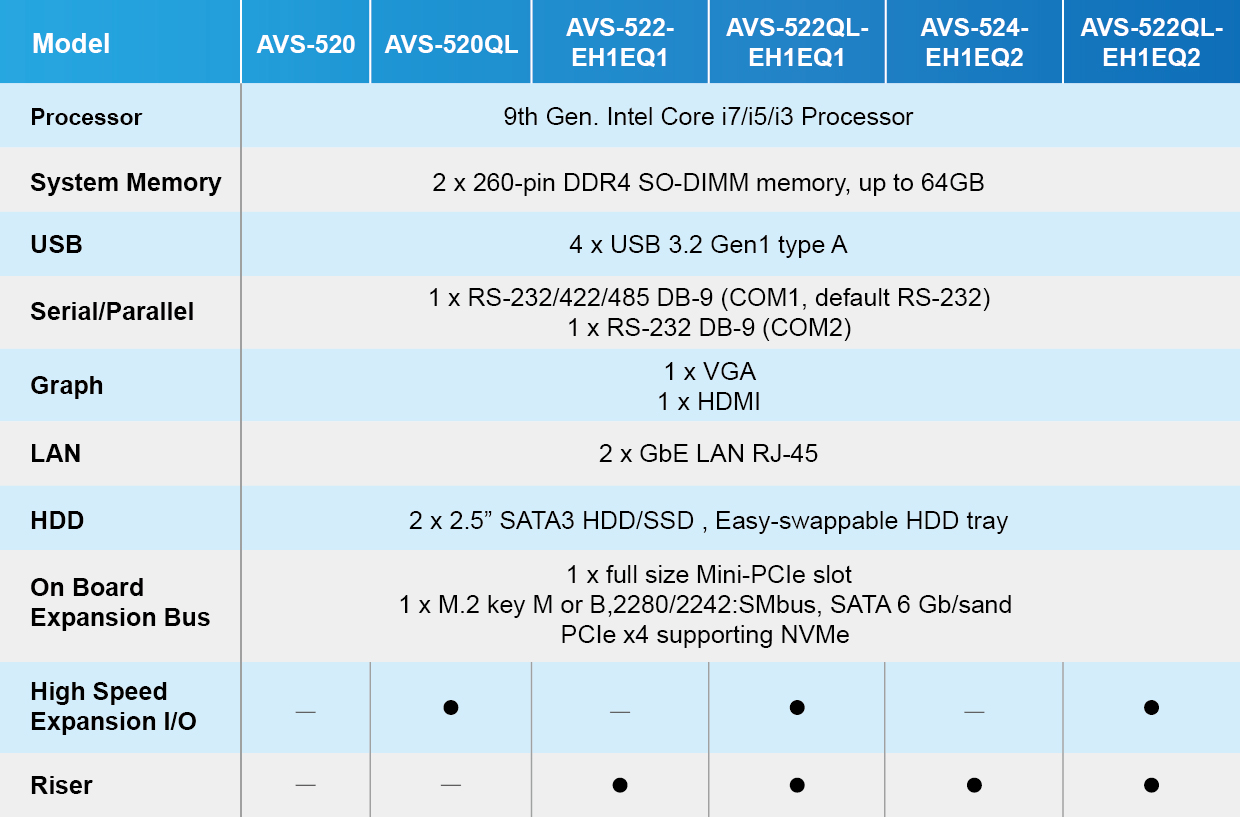

This series basically supports 4 x USB 3.2, 2 x COM, 1 x VGA, 1 x HDMI and 2 x GbE LAN. As for the expansion slots, it all equipped with 1 x full size Mini-PCIe, 1 x M.2 key M or B 2280/2242, and PCIe x 4. Apart from that, there are more flexible expansion options for customers.

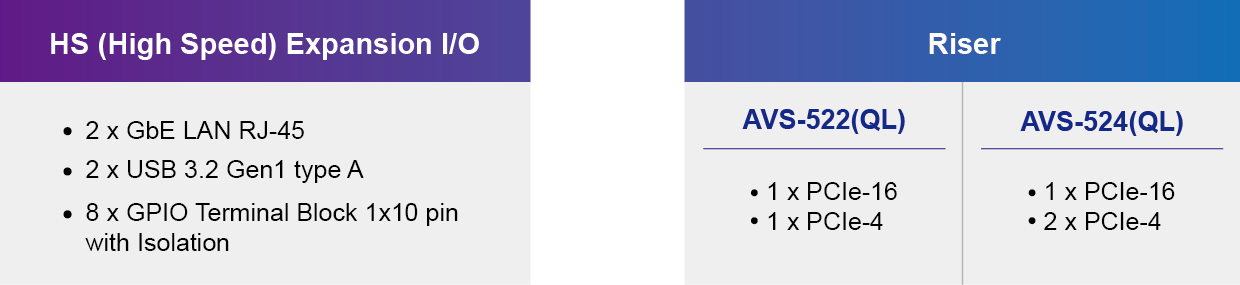

Some of the models in AVS-52X series includes the name of “QL”. It represents for high-speed extension I/Os which offers 2 x GbE LAN, 2 x USB 3.2 and 8 x GPIO terminal block. However, if you have any other I/O request, it can be customized as well. APLEX also provides riser card for supporting more I/O interfaces. The AVS-522 and AVS-524 series equipped with 1 x PCIe-16 Gen3. which can support graphics card. Besides, it also has 1 x PCIe-4 for AVS-522 series and 2 x PCIe-4 for AVS-524 series.

AVS-52X series supports Microsoft® Win10 IoT, Windows 11 and Linux Kernel 4.15. With all these benefits and the extensive operating system, AVS-52X series surely may fit your application demands. From edge peripherals to central system, APLEX provide comprehensive AI machine vision solutions.

Products Guide:

For further product information, please contact our sales team: sales@aplex.com

About APLEX
APLEX Technology Inc. is one of the leading brands in industrial computer products. The company is dedicated to satisfying customer’s needs by offering comprehensive solutions and applications, including industrial panel PCs, Human-Machine Interfaces (HMI), industrial displays, and Embedded Box PCs. In addition to a full line of standard products, APLEX also offers customized or OEM/ODM project services. Applications range from factory automation, transportation, retail, hospitality, environmental monitoring, warehousing, medical, to health care. APLEX is publicly traded on TPEX TAIPEI Exchange (Code: 6570).More information is available at www.aplex.com and on LinkedIn,YouTube

Media Contact
Worldwide Office Contact: sales@aplex.com+886-2-82262881
US Office Contact: sales@aplextec.com+1 (669) 999 - 2500
Worldwide PR Contact: wennielo@aplex.com+886-2-82262881-2515

IIOT Machine Vision AVS Series
