The Comprehensive Rugged HMI, ARCHMI-S Series for Smart Manufacturing
[Taipei, Taiwan－February, 2025]－APLEX Technology Inc., a global industrial computer products solutions provider, is thrilled to introduce the ARCHMI-S series, an HMI product line catering to both entry-level and high-end smart manufacturing applications. With the debut of the ARCHMI-S-9D, this series showcases exceptional versatility, powered by 12th Gen. Intel Core i3/i5 processors, while the ARCHMI-S-8B is equipped with the Intel Celeron J6412 processor.
Rugged Design with Superior Durability

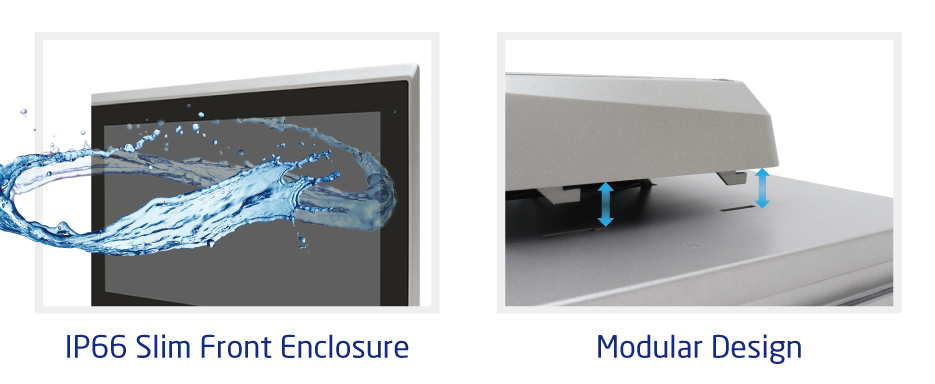

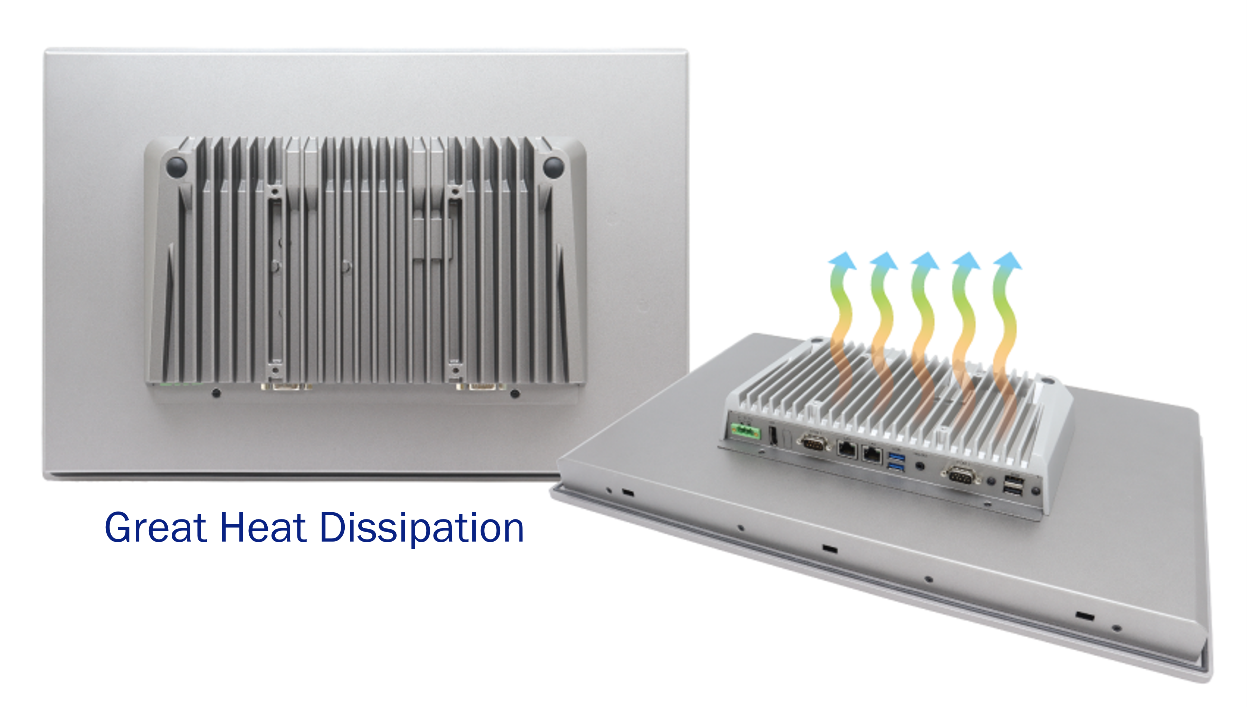

The ARCHMI-S series is one of APLEX’s rugged HMI product lines, with an aluminum die-casting chassis and a fanless design. Compared to its predecessors, it offers enhanced heat dissipation through advanced passive cooling fins and ensures stable performance. Additionally, its IP66-compliant front bezel provides resistance to water and dust, while the panel’s 7H hardness delivers exceptional durability.
User-Friendly Modular Design
With a modular design, the ARCHMI-S series features a quick assembly process using two screws and a fast-fastening mechanism. This user-friendly design allows for easy and cost-effective upgrades of panel sizes, ranging from 7” to 23.8” TFT-LCD. It not only simplifies maintenance but also enhances the overall user experience.

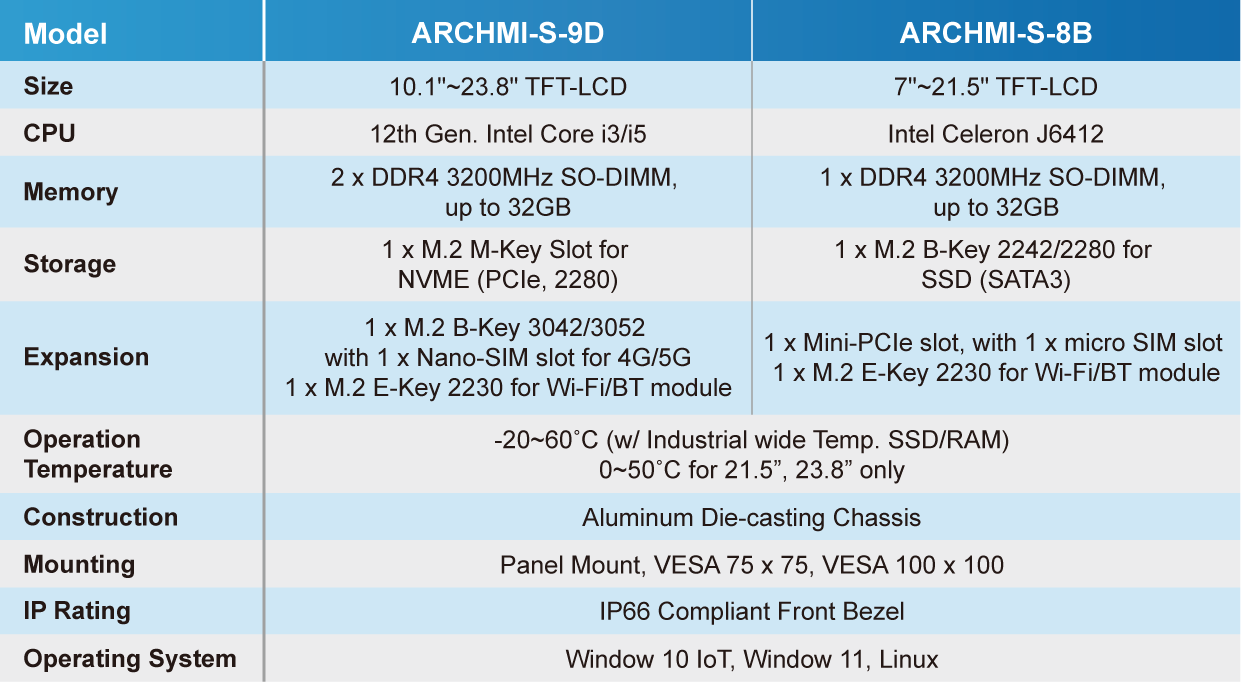

Versatile Specifications for Diverse Applications

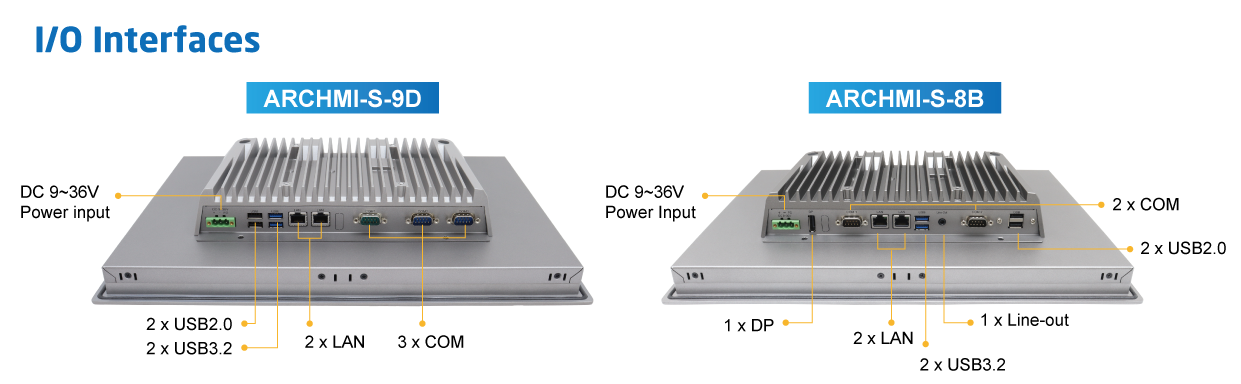

The ARCHMI-S series is equipped with versatile I/O ports, including 2 x USB 3.2 Type A, 2 x USB 2.0 Type A, and 2 x LAN ports. Additionally:
• The ARCHMI-S-8B includes 2 x COM and 1 x DP
• The ARCHMI-S-9D provides 3 x COM
Both models support resistive touch and projected capacitive touch with 10-point multi-touch functionality. They are also capable of operating in a wide temperature range from -20°C to 60°C and support multiple operating systems, including Windows 10 IoT, Windows 11, and Linux Ubuntu.
Sunlight Readable Solution
To meet the demands of diverse lighting conditions, the ARCHMI-S series offers sunlight-readable solution as well. Featuring high brightness, auto-dimming, optical bonding, and optional LCD coatings (AG/AR/AF). These features ensure superior readability and high-resolution for precise and clear image.
Ideal for Smart Manufacturing and Outdoor Application Fields
The slim and rugged ARCHMI-S series is designed for a variety of applications, including smart factory for process control, edge AI computing, and outdoor environments such as EV chargers and kiosks. It delivers powerful performance, user-friendly operation, and cost-efficient design to meet your needs.
Product Information:
